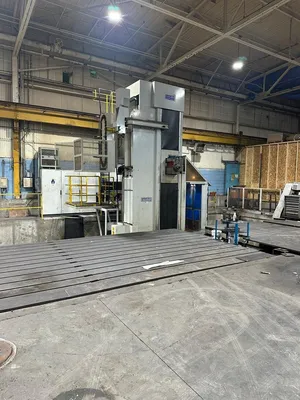

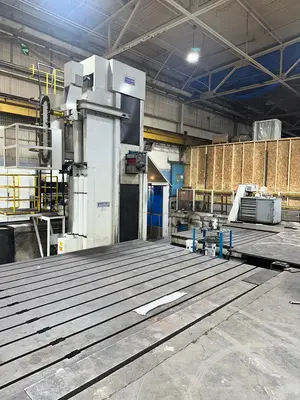

Alesa Monti CNC Floor Boring Mill
ConditionUsed
1 available
Alesa Monti MMC TG35 CNC floor boring mill with Heidenhain iTNC-530, 472" X travel, 5.9"spindle, 55,000 Lb rotary table, 30-position ATC, right-angle milling head, chip conveyor, floor plates, tooling, clamps and fixtures.
Alesa Monti CNC Floor Boring Mill,
Model: MMC TG35
Year: 2010

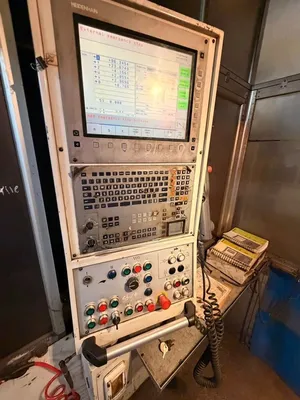

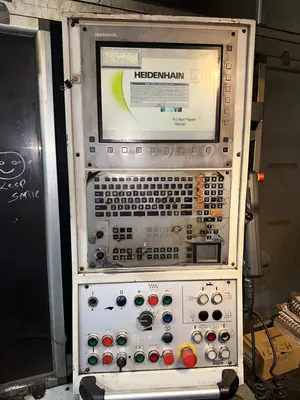

Control: HEIDENHAIN iTNC-530
Made in Italy
Travels
X-axis (Column) 12,000 mm, 472.4"
Y-axis Headstock 3,500 mm, 137.8"
Spindle travel 500 mm, 19.7"
Ram travel 1,000 mm, 39.4"
Ram & Spindle Travel combined 1,500 mm, 59.1"

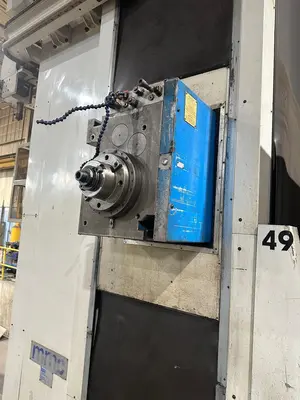

Spindle
Spindle Size : 150 mm, 5.9"
Spindle Taper : #50
Spindle RPM : 2,500 RPM
Power : 37.3 kW, 50 HP
Rotary Table; Infeeding B-Axis CNC Rotary Table
Table-W 2,500 mm, 98.4'
Table-L 3,000 mm, 118.1"
Rotary table Cap:25,000 kg, 55,000 Lbs
Table Infeed 78.7"
Power supply 400 V,3Ph,60Hz
Inspect Under Power in Plant. Machine needs to sell as building is sold. Call to set up an inspection
Equipped with:
ATC: 30 Position Tool Changer,

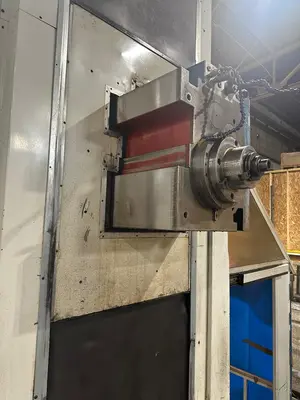

Universal Right angle Milling Head, Controlled through CNC,

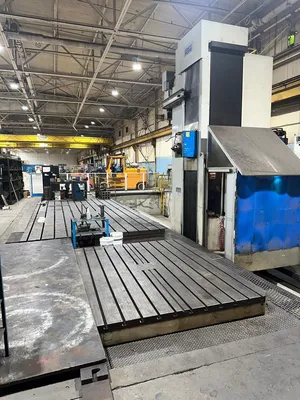

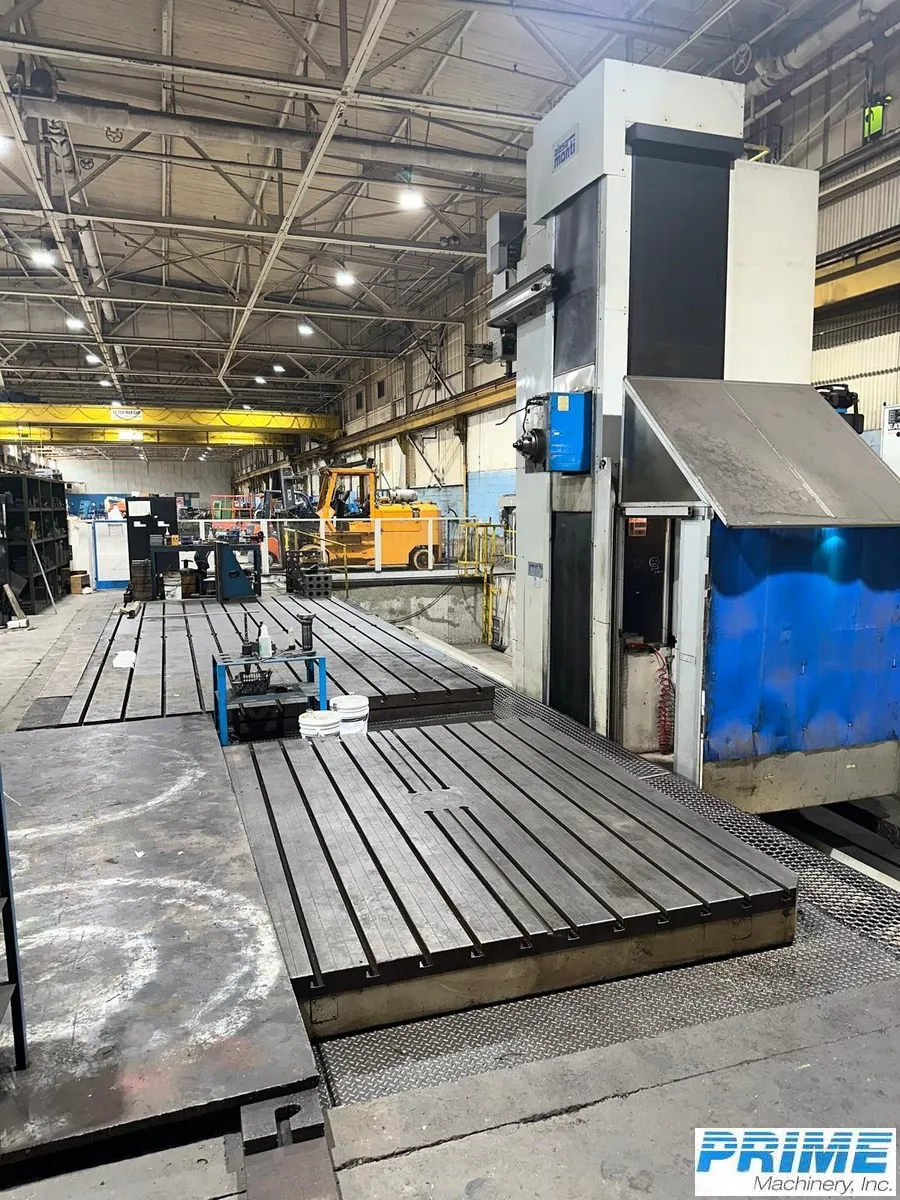

Floor Plates: 2 no. 1800 mm x 1800mm (12’x12’)

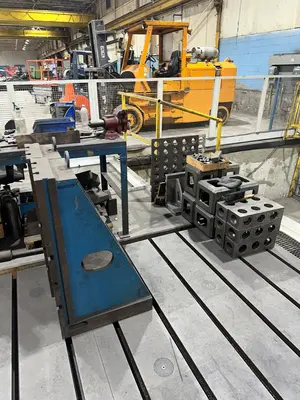

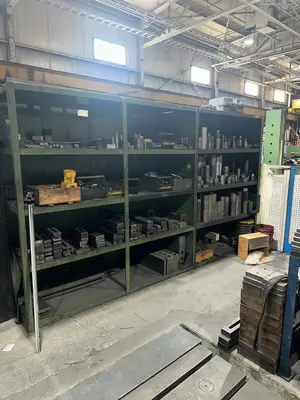

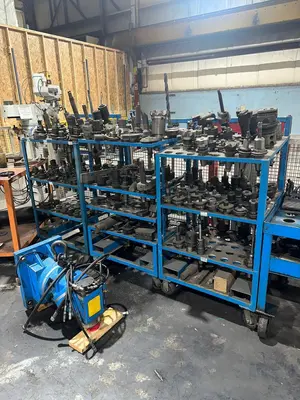

Lots of tooling, clamps, and fixtures.
Chip conveyor
Alesa Monti MMC TG35 CNC floor boring mill with Heidenhain iTNC-530, 472" X travel, 5.9"spindle, 55,000 Lb rotary table, 30-position ATC, right-angle milling head, chip conveyor, floor plates, tooling, clamps and fixtures.
Imperial
| Spindle Size | 5.9" |
| X-Horiz Tvl of Col | 472" |
| Y-Vert Tvl of Head | 138" |
| Power | 50 hp |
| RPM | 2,500 RPM |
Alesa Monti CNC Floor Boring Mill,
Model: MMC TG35
Year: 2010
Control: HEIDENHAIN iTNC-530
Made in Italy
Travels
X-axis (Column) 12,000 mm, 472.4"
Y-axis Headstock 3,500 mm, 137.8"
Spindle travel 500 mm, 19.7"
Ram travel 1,000 mm, 39.4"
Ram & Spindle Travel combined 1,500 mm, 59.1"
Spindle
Spindle Size : 150 mm, 5.9"
Spindle Taper : #50
Spindle RPM : 2,500 RPM
Power : 37.3 kW, 50 HP
Rotary Table; Infeeding B-Axis CNC Rotary Table
Table-W 2,500 mm, 98.4'
Table-L 3,000 mm, 118.1"
Rotary table Cap:25,000 kg, 55,000 Lbs
Table Infeed 78.7"
Power supply 400 V,3Ph,60Hz
Inspect Under Power in Plant. Machine needs to sell as building is sold. Call to set up an inspection
Equipped with:
ATC: 30 Position Tool Changer,
Universal Right angle Milling Head, Controlled through CNC,
Floor Plates: 2 no. 1800 mm x 1800mm (12’x12’)
Lots of tooling, clamps, and fixtures.
Chip conveyor
