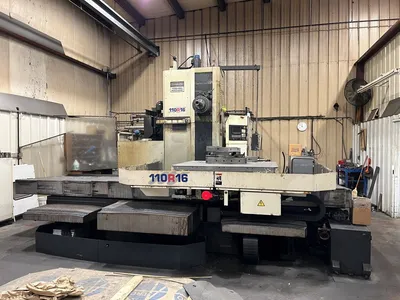

Used 1997 TOSHIBA BTD110R16 | BORING MILLS, HORIZ., TABLE TYPE, N/C & CNC
ConditionUsed
1 available

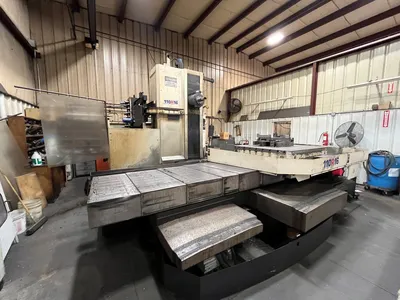

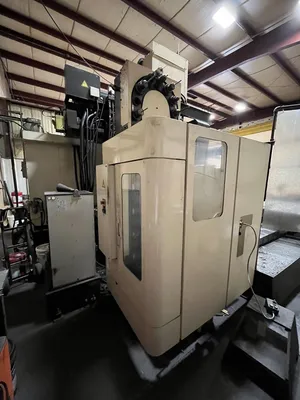

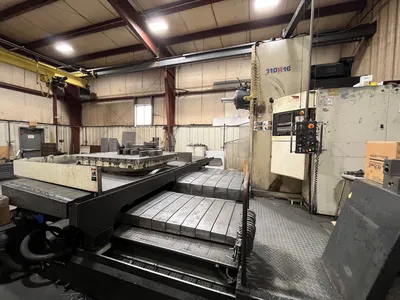

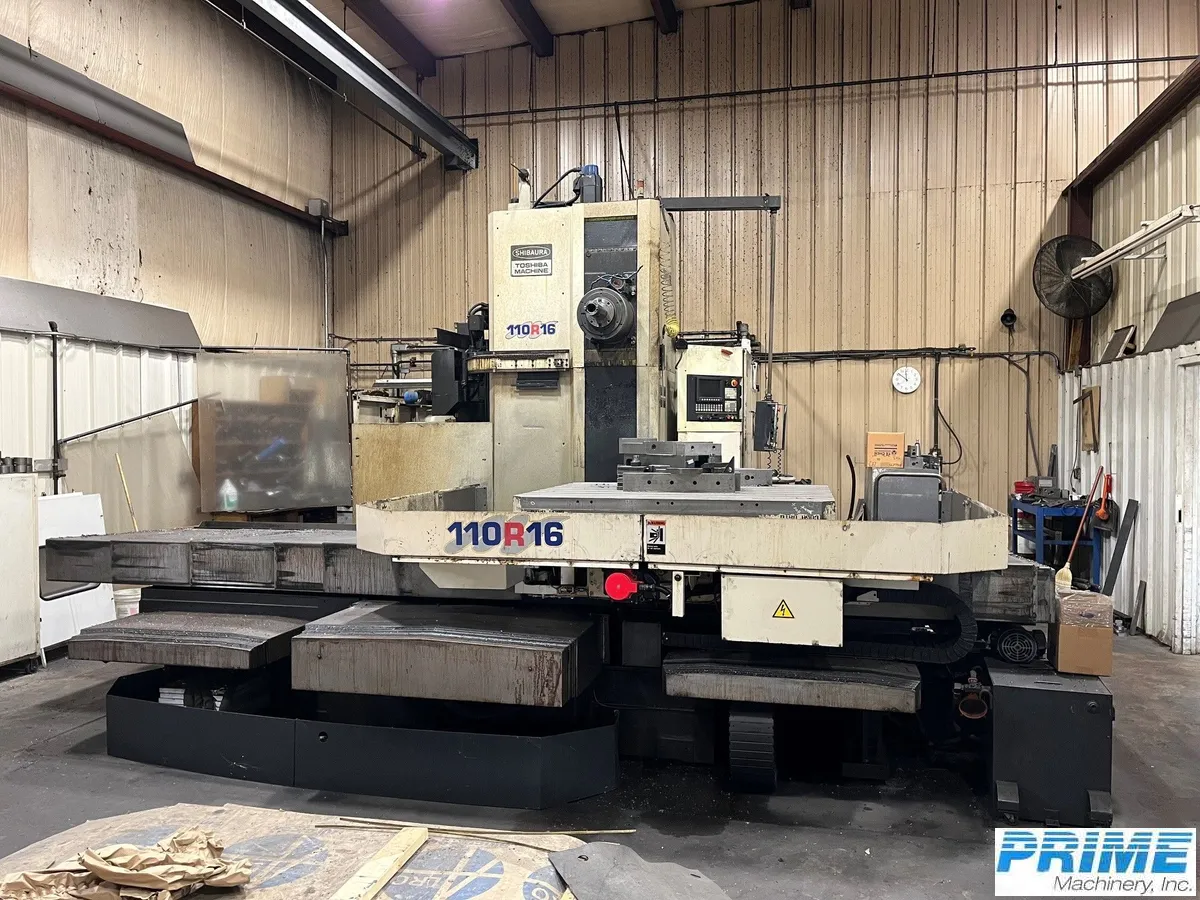

TOSHIBA BTD110R16 Boring Mill, Features a 4.3" spindle, 78.7" X-axis travel, 59.1" Y-axis travel, and 55"x63" rotary table. Equipped with Tosnuc 888 CNC Control and 38-position tool changer. Contact for details.
Specifications:
Spindle Diameter .............. 4.3"
Spindle Taper ................. #50
Milling Spindle Diameter ...... 8.86"
Vertical Head Travel .......... 59"
Cross Travel Of Table X-Axis .. 78.7"
Spindle Travel, Z-Axis ........ 19.7"
Saddle Travel W-Axis .......... 57"
Table Size (Built in Rotary) .. 55" X 63"
Table Indexing................. 0.001 DEGREE
Feed Rates .................... 1 - 157 IPM
Rapid Traverse ................ 394 IPM
Table Load Capacity ........... 13,860 LBS
Spindle Speeds (3 Speed Geared) 2 - 3000 RPM
Approximate Floor Space........ 187" X 232" X 156" HIGH
Approximate Machine Weight..... 56,100 LBS.
Equipped With:

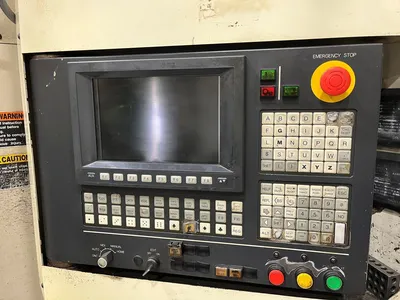

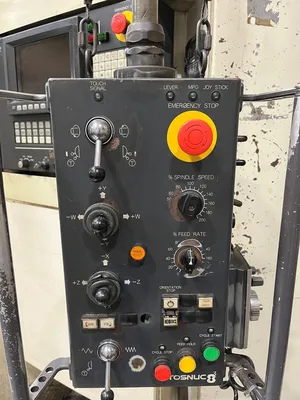

- Tosnuc 888 CNC Control
- 55" X 63" Built-In B-Axis Rotary Table
- 38 Position Automatic Tool Changer

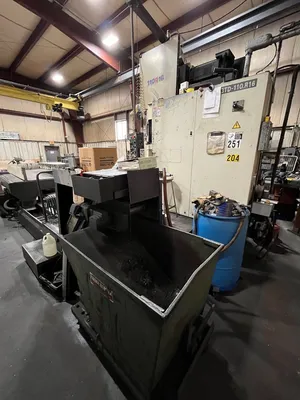

- Chip & Splash Enclosure Around Table
- 30 Horse Power Spindle Motor
- Scale Feedback
Inspect Under Power in a Northeast Shop
Needs to move out - They need the room.
Call to make a deal - Has to sell
TOSHIBA BTD110R16 Boring Mill, Features a 4.3" spindle, 78.7" X-axis travel, 59.1" Y-axis travel, and 55"x63" rotary table. Equipped with Tosnuc 888 CNC Control and 38-position tool changer. Contact for details.
Imperial
| Spindle Size | 4.3" |
| X-Horiz Tvl of Table | 78.7" |
| Y-Vert Tvl of Head | 59.1" |
| RPM | 3,000 RPM |
| Table-W | 55.1" |
| Table-L | 63" |
| Spindle Tvl. | 19.7" |
| Control | CNC (Toshiba Tosnuc 888) |
Specifications:
Spindle Diameter .............. 4.3"
Spindle Taper ................. #50
Milling Spindle Diameter ...... 8.86"
Vertical Head Travel .......... 59"
Cross Travel Of Table X-Axis .. 78.7"
Spindle Travel, Z-Axis ........ 19.7"
Saddle Travel W-Axis .......... 57"
Table Size (Built in Rotary) .. 55" X 63"
Table Indexing................. 0.001 DEGREE
Feed Rates .................... 1 - 157 IPM
Rapid Traverse ................ 394 IPM
Table Load Capacity ........... 13,860 LBS
Spindle Speeds (3 Speed Geared) 2 - 3000 RPM
Approximate Floor Space........ 187" X 232" X 156" HIGH
Approximate Machine Weight..... 56,100 LBS.
Equipped With:
- Tosnuc 888 CNC Control
- 55" X 63" Built-In B-Axis Rotary Table
- 38 Position Automatic Tool Changer
- Chip & Splash Enclosure Around Table
- 30 Horse Power Spindle Motor
- Scale Feedback
Inspect Under Power in a Northeast Shop
Needs to move out - They need the room.
Call to make a deal - Has to sell
