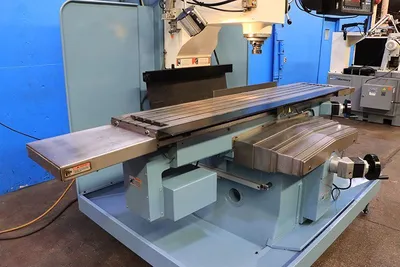

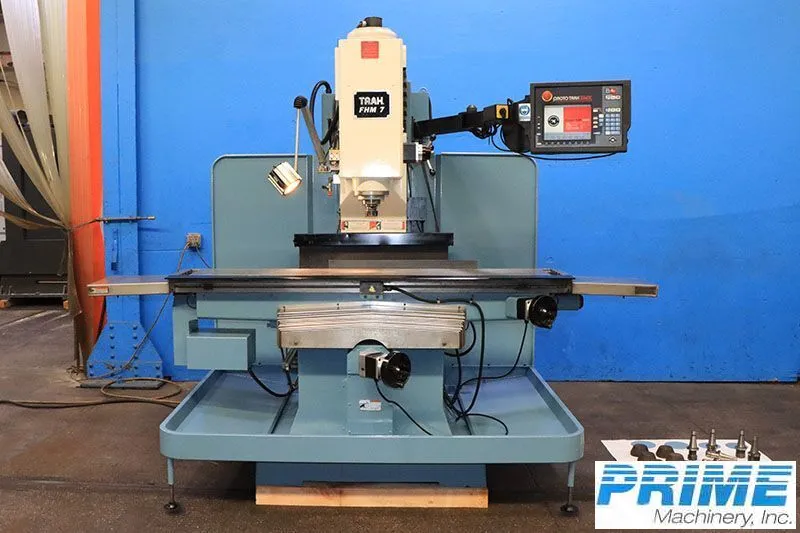

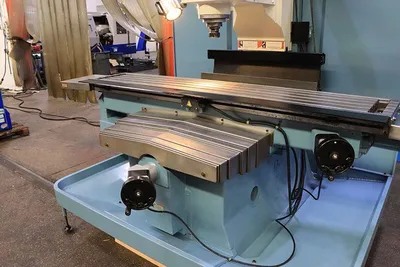

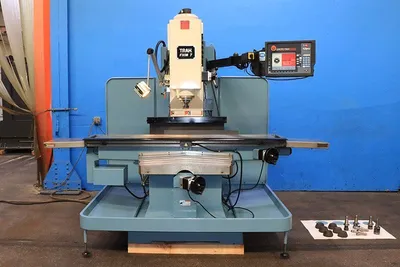

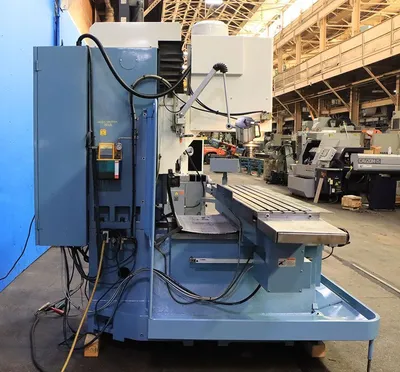

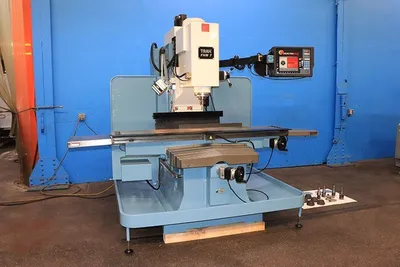

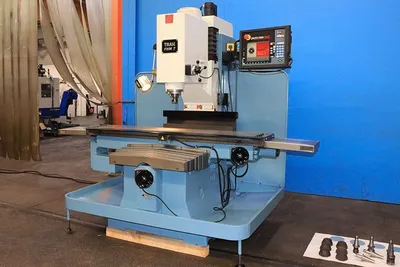

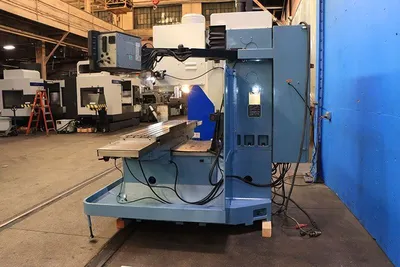

SOUTHWESTERN INDUSTRIES MODEL: FHM 7 CNC VERTICAL MILL - NEW: 2012
ConditionUsed
1 available
$34,950.00 USD
2012 Southwestern Industries FHM 7 CNC Vertical Mill, equipped with Proto-Trak SMX Control, Windows OS, and advanced features. Table: 76" x 14", X-axis: 60", spindle speed: 200-5000 RPM, max workpiece weight: 2,200 lbs. Professional machining.
TABLES SIZE ...................... 76" X 14"
TRAVELS:
TABLE (X-AXIS) .................. 60"
SADDLE (Y-AXIS) .................. 23"
HEAD (Z-AXIS) ................... 20.5"
QUILL DIAMETER ................... 5.06"
SPINDLE TAPER .................... #40
SPINDLE SPEED RANGE .............. 200 - 5000 RPM
SPINDLE CENTER TO COLUMN FACE .... 23.75"
SPINDLE MOTOR .................... 7.5 HP
MAX WEIGHT OF WORKPIECE .......... 2,200 LBS
TABLE HEIGHT FROM BED BOTTOM ..... 38.25"
MAX SPINDLE NOSE TO TABLE ........ 24"
MIN HEIGHT ....................... 91.75"
MAX HEIGHT ....................... 101"
APPROXIMATE MACHINE WEIGHT ....... 7,975 LBS.

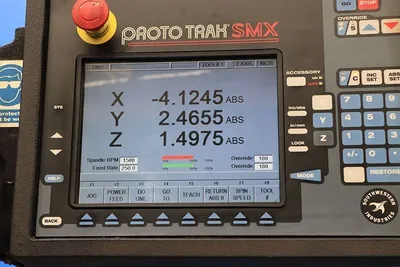

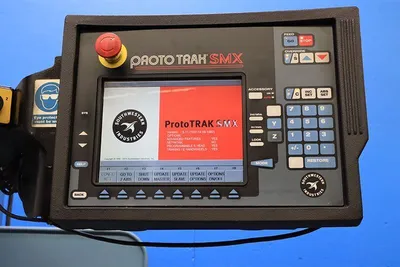

PROTO-TRAK MODEL: SMX CONTROL,
WINDOWS OPERATING SYSTEM,
ADVANCED FEATURES, PROGRAMMABLE E HEAD, TRAKing
10.4" LCD SCREEN, RS232 PORT& RJ45 CONNECTOR,
AUTO GEOMETRY ENGINE, LINEAR & CIRCULAR INTERPOLATION,
TWO OR THREE AXIS, ROTATE OR MIRROR, (2) USB PORTS,
& MUCH MUCH MORE!
TRAKing/ELECTRONIC HANDWHEELS

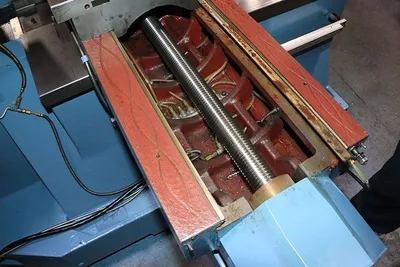

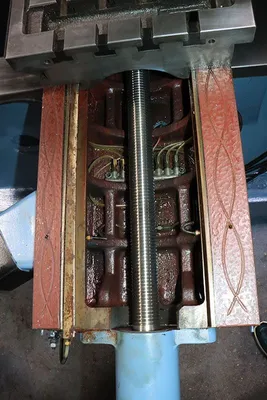

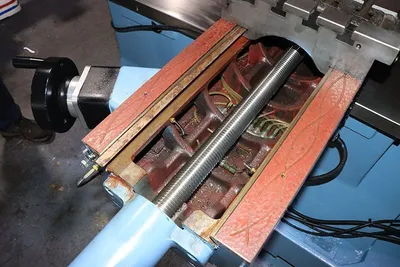

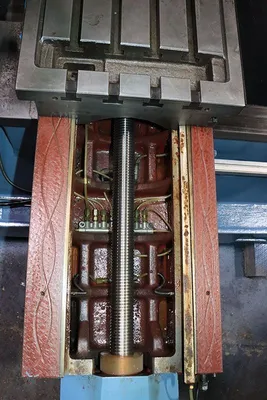

BALL SCREWS & AC SERVO MOTORS FOR X,Y & Z AXES

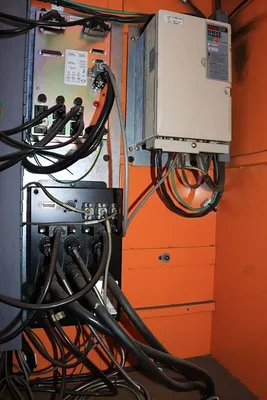

YASKAWA SPINDLE DRIVE

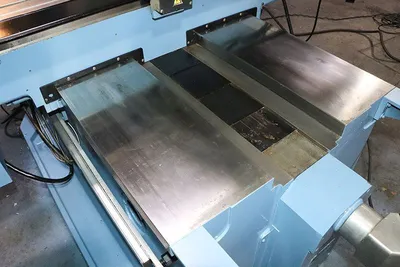

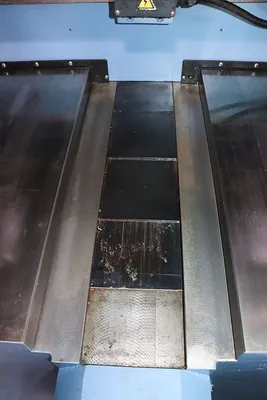

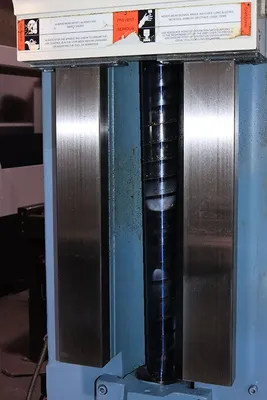

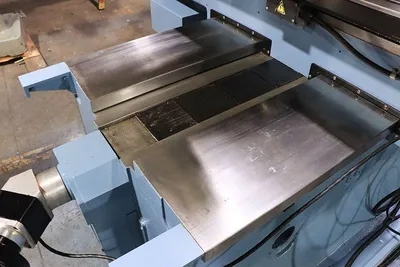

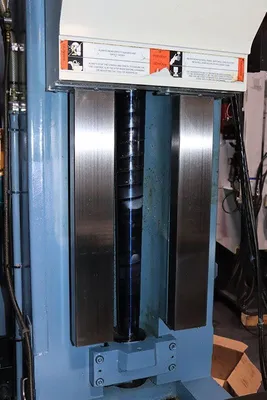

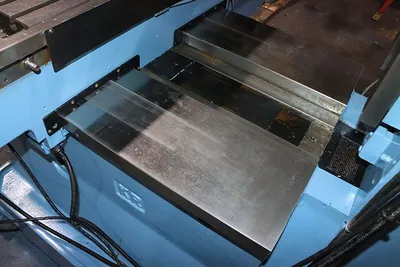

HARDENED & GROUND BOX WAYS

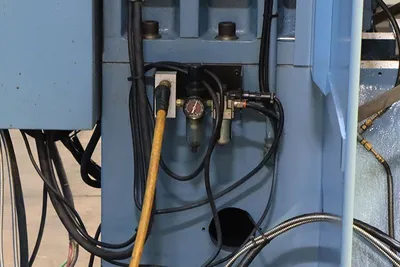

AUTOMATIC LUBRICATION SYSTEM
COOLANT SYSTEM w/CHIP PAN & SPLASH SHIELD
7.5 HORSE POWER SPINDLE MOTOR & INVERTER
2012 Southwestern Industries FHM 7 CNC Vertical Mill, equipped with Proto-Trak SMX Control, Windows OS, and advanced features. Table: 76" x 14", X-axis: 60", spindle speed: 200-5000 RPM, max workpiece weight: 2,200 lbs. Professional machining.
Imperial
| Table-W | 14" |
| Table-L | 79" |
TABLES SIZE ...................... 76" X 14"
TRAVELS:
TABLE (X-AXIS) .................. 60"
SADDLE (Y-AXIS) .................. 23"
HEAD (Z-AXIS) ................... 20.5"
QUILL DIAMETER ................... 5.06"
SPINDLE TAPER .................... #40
SPINDLE SPEED RANGE .............. 200 - 5000 RPM
SPINDLE CENTER TO COLUMN FACE .... 23.75"
SPINDLE MOTOR .................... 7.5 HP
MAX WEIGHT OF WORKPIECE .......... 2,200 LBS
TABLE HEIGHT FROM BED BOTTOM ..... 38.25"
MAX SPINDLE NOSE TO TABLE ........ 24"
MIN HEIGHT ....................... 91.75"
MAX HEIGHT ....................... 101"
APPROXIMATE MACHINE WEIGHT ....... 7,975 LBS.
PROTO-TRAK MODEL: SMX CONTROL,
WINDOWS OPERATING SYSTEM,
ADVANCED FEATURES, PROGRAMMABLE E HEAD, TRAKing
10.4" LCD SCREEN, RS232 PORT& RJ45 CONNECTOR,
AUTO GEOMETRY ENGINE, LINEAR & CIRCULAR INTERPOLATION,
TWO OR THREE AXIS, ROTATE OR MIRROR, (2) USB PORTS,
& MUCH MUCH MORE!
TRAKing/ELECTRONIC HANDWHEELS
BALL SCREWS & AC SERVO MOTORS FOR X,Y & Z AXES
YASKAWA SPINDLE DRIVE
HARDENED & GROUND BOX WAYS
AUTOMATIC LUBRICATION SYSTEM
COOLANT SYSTEM w/CHIP PAN & SPLASH SHIELD
7.5 HORSE POWER SPINDLE MOTOR & INVERTER
