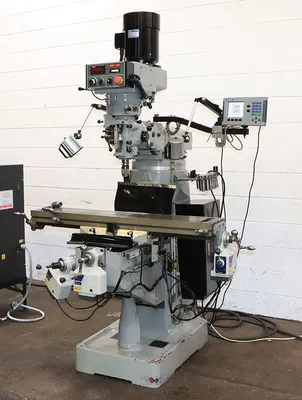

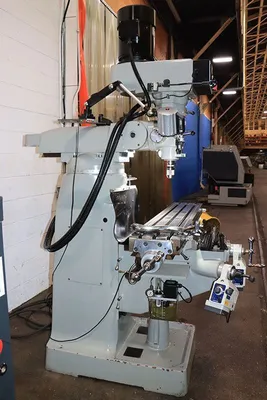

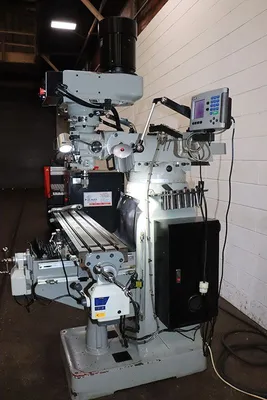

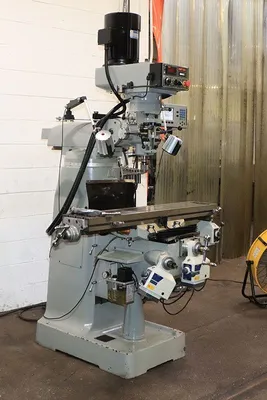

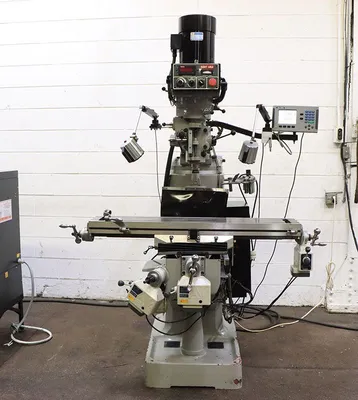

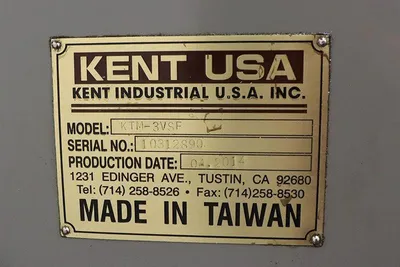

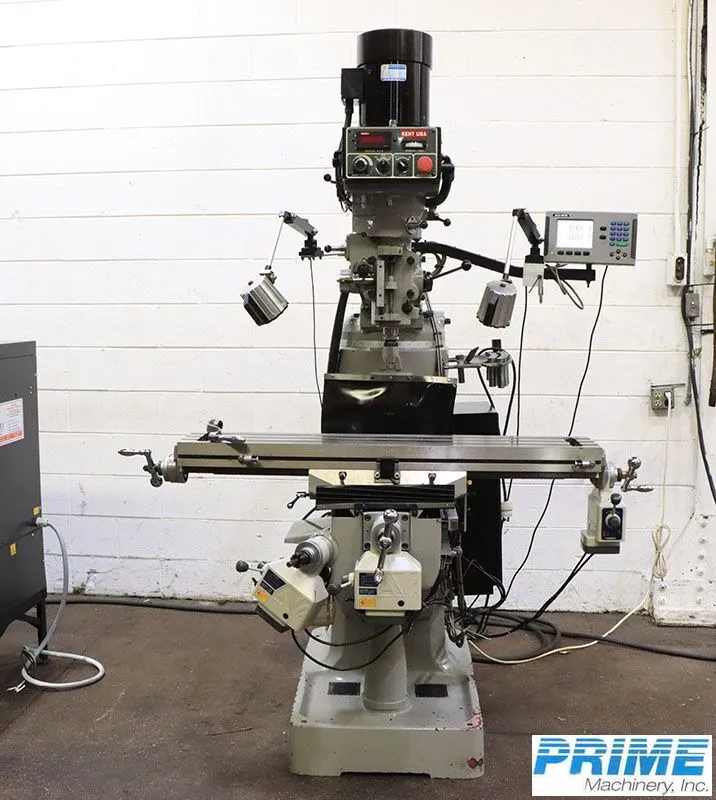

KENT MODEL: KTM-3VSF VERTICAL MILLING MACHINE - MFG: 2014
ConditionUsed
1 available
$10,500.00 USD
KENT KTM-3VSF vertical milling machine from 2014 in used condition. Features 9"x49" table, AC frequency inverter, two-axis digital readout, power feeds, 360° turret rotation, and more. Approx. dimensions: 75"x74"x90"H, weight: 2,600 lbs. Available in NJ.

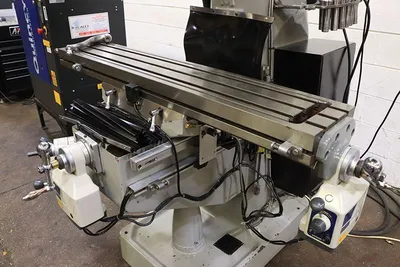

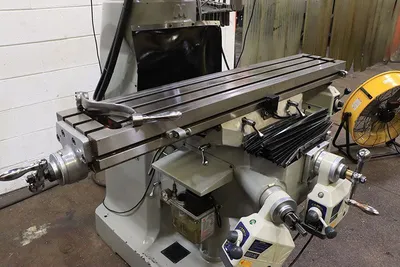

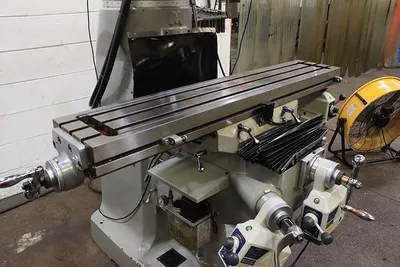

TABLE WORKING SURFACE ......................... 9" X 49"
NUMBER OF T-SLOTS (WIDTH) ..................... 3 (5/8")
MAXIMUM TABLE LOAD CAPACITY ................... 750 LBS
RANGE: LONGITUDINAL, MANUAL (X) ............... 35"
CROSS (Y) ........................ 12"
VERTICAL, KNEE ................... 15"

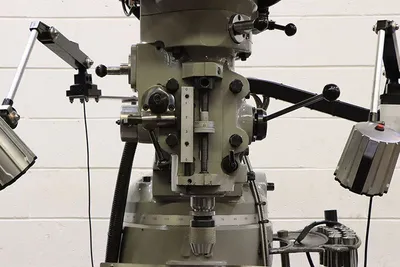

QUILL (Z) ........................ 5"
RAM TRAVEL .................................... 14.5"

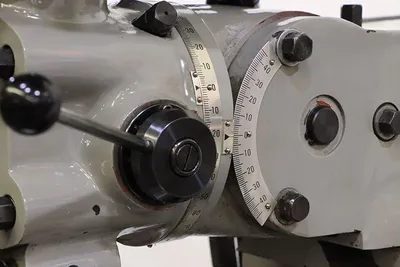

HEAD TILT, LEFT AND RIGHT ..................... 90 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY ............ 45 DEGREES
TURRET ROTATION ............................... 360 DEGREES
(3) POWER QUILL FEEDS ............ .0015, .003, .006 I.P.R.
QUILL DIAMETER ................................ 3-3/8"

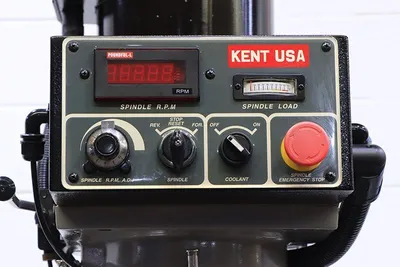

INFINITELY VARIABLE SPINDLE SPEEDS ............ 60 - 4,500 RPM
SPINDLE TAPER ................................. R-8

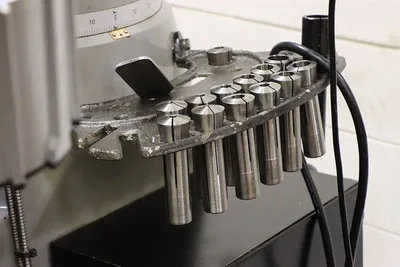

MAXIMUM COLLET CAPACITY ....................... 3/4"
APPRROXIMATE DIMENSIONS .................. 75" x 74" x 90"H
APPROXIMATE WEIGHT ............................ 2,600 LBS.

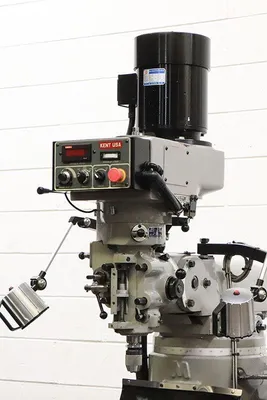

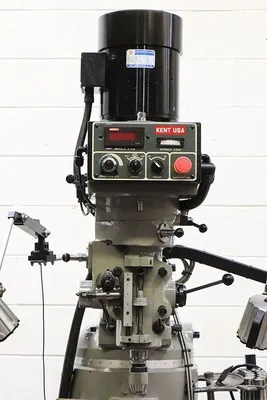

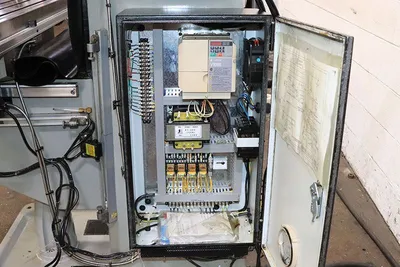

AC FREQUENCY INVERTER SPINDLE DRIVE

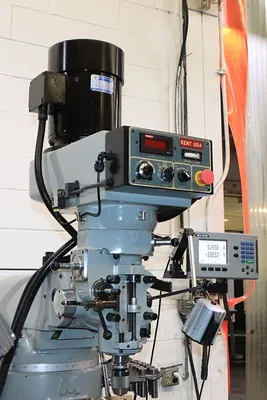

ACU-RITE TWO-AXIS DIGITAL READOUT

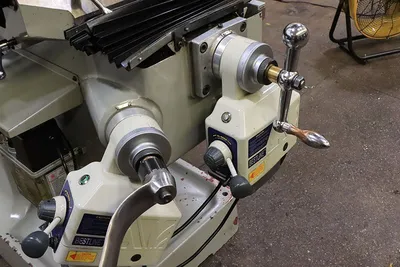

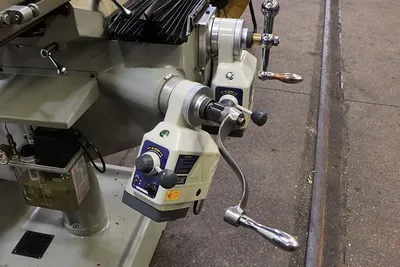

ALIGN POWER FEED FOR LONGITUDINAL TABLE TRAVEL
ALIGN POWER FEED FOR CROSS TABLE TRAVEL
ALIGN POWER FEED FOR KNEE VERTICAL TRAVEL
HARDENED AND GROUND DOVETAIL WAYS FOR X & Y AXES
MEEHANITE CASTING
WORKLIGHT

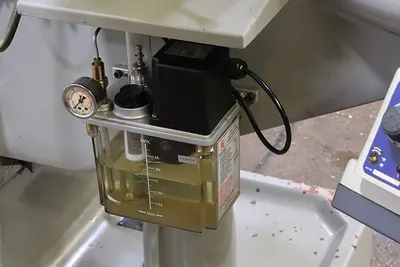

ONE-SHOT LUBRICATION SYSTEM
3 HORSE POWER SPINDLE DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
KENT KTM-3VSF vertical milling machine from 2014 in used condition. Features 9"x49" table, AC frequency inverter, two-axis digital readout, power feeds, 360° turret rotation, and more. Approx. dimensions: 75"x74"x90"H, weight: 2,600 lbs. Available in NJ.
Imperial
| Table-W | 9" |
| Table-L | 49" |
TABLE WORKING SURFACE ......................... 9" X 49"
NUMBER OF T-SLOTS (WIDTH) ..................... 3 (5/8")
MAXIMUM TABLE LOAD CAPACITY ................... 750 LBS
RANGE: LONGITUDINAL, MANUAL (X) ............... 35"
CROSS (Y) ........................ 12"
VERTICAL, KNEE ................... 15"
QUILL (Z) ........................ 5"
RAM TRAVEL .................................... 14.5"
HEAD TILT, LEFT AND RIGHT ..................... 90 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY ............ 45 DEGREES
TURRET ROTATION ............................... 360 DEGREES
(3) POWER QUILL FEEDS ............ .0015, .003, .006 I.P.R.
QUILL DIAMETER ................................ 3-3/8"
INFINITELY VARIABLE SPINDLE SPEEDS ............ 60 - 4,500 RPM
SPINDLE TAPER ................................. R-8
MAXIMUM COLLET CAPACITY ....................... 3/4"
APPRROXIMATE DIMENSIONS .................. 75" x 74" x 90"H
APPROXIMATE WEIGHT ............................ 2,600 LBS.
AC FREQUENCY INVERTER SPINDLE DRIVE
ACU-RITE TWO-AXIS DIGITAL READOUT
ALIGN POWER FEED FOR LONGITUDINAL TABLE TRAVEL
ALIGN POWER FEED FOR CROSS TABLE TRAVEL
ALIGN POWER FEED FOR KNEE VERTICAL TRAVEL
HARDENED AND GROUND DOVETAIL WAYS FOR X & Y AXES
MEEHANITE CASTING
WORKLIGHT
ONE-SHOT LUBRICATION SYSTEM
3 HORSE POWER SPINDLE DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
