Used 2024 TRAK 3060RX | LATHES, FLAT BED, N/C & CNC
ConditionUsed
1 available
Swing over Bed 33"
Swing Over Cross slide 21.2"
Cross Slide Travel 20.5"
Spindle Nose A2-11
Spindle Through Hole 6.3"
Spindle Speed Range (2-Speeds) 20-415 RPM, 20-1,300 RPM
Machine Size 150" L, 87" W, 86" H
• Gap bed lathe w/ 43.5” swing over 15.5” gap
• 60” between centers w/ 60” max cutting length
• Large 6.30” spindle through hole
• 20.5” of cross slide travel
• 30 HP continuous spindle motor
• Interface for rear chuck
• High and low speed range settings.

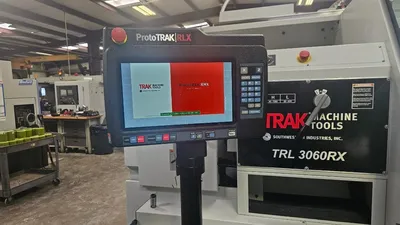

ProtoTRAK RLX CNC
• Manual or CNC operation
• Electronic hand wheels and jogstick
• Brushless servo motors
• Inverter-duty spindle drive
• Limit Switch
Options:
* Advanced Features w/ Verify, RLX
* Auxiliary Output Option-PTRLX
* Buck Chuck-20" A2
* Adaptor for Rear Chuck
* DXF Converter RLX Lathe
* Cam File Out Converter RLX

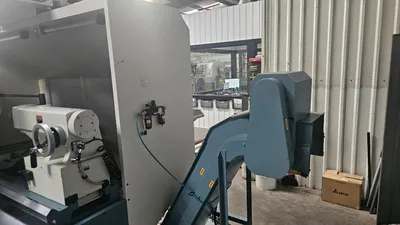

* Chip Conveyor
* Follow Rest Option
* Steady Rest Option (2 sets of fingers)
* TRAKing Option
* Tooling Kit -1.25" for TRL / Dorian tool post and holders
Appears to be in Like New Condition. Seller 's Operator Left and they do not have anyone to run the machine.
Swing over Bed 33"
Swing Over Cross slide 21.2"
Cross Slide Travel 20.5"
Spindle Nose A2-11
Spindle Through Hole 6.3"
Spindle Speed Range (2-Speeds) 20-415 RPM, 20-1,300 RPM
Machine Size 150" L, 87" W, 86" H
• Gap bed lathe w/ 43.5” swing over 15.5” gap
• 60” between centers w/ 60” max cutting length
• Large 6.30” spindle through hole
• 20.5” of cross slide travel
• 30 HP continuous spindle motor
• Interface for rear chuck
• High and low speed range settings.
ProtoTRAK RLX CNC
• Manual or CNC operation
• Electronic hand wheels and jogstick
• Brushless servo motors
• Inverter-duty spindle drive
• Limit Switch
Options:
* Advanced Features w/ Verify, RLX
* Auxiliary Output Option-PTRLX
* Buck Chuck-20" A2
* Adaptor for Rear Chuck
* DXF Converter RLX Lathe
* Cam File Out Converter RLX
* Chip Conveyor
* Follow Rest Option
* Steady Rest Option (2 sets of fingers)
* TRAKing Option
* Tooling Kit -1.25" for TRL / Dorian tool post and holders
Appears to be in Like New Condition. Seller 's Operator Left and they do not have anyone to run the machine.
