BAILEIGH MODEL: VM-949-3 VERTICAL MILLING MACHINE - MFG: 2021
ConditionUsed
1 available
$12,950.00 USD

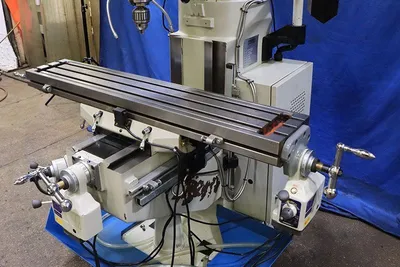

2021 Baileigh VM-949-3 Vertical Milling Machine with a 9"x49" table, 3 T-slots, and travels of 28.5", 12", and 16". Features include a Mitutoyo DRO, power feeds, one-shot lubrication, and a 3HP motor. Located in New Jersey.
TABLE SIZE .............................. 9" X 49"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 28.5"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 18"
HEAD TILT, LEFT & RIGHT ................. 90°
HEAD TILT, FRONT & REAR ................. 45°
INFINITELY VARIABLE SPEED RANGE ......... 60 - 4,200 RPM
SPINDLE TAPER ........................... NST40
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,500 LBS
APPROXIMATE DIMENSIONS .................. 60" x 60" x 83"H
MITUTOYO TWO AXIS DIGITAL READOUT
ALIGN AIR ACUATED POWER DRAW BAR

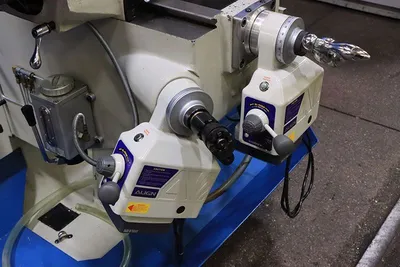

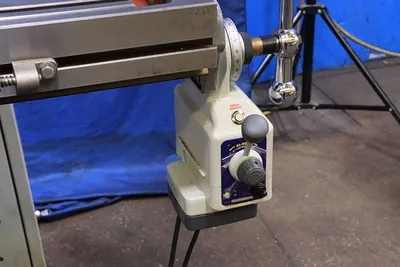

ALIGN POWER FEED FOR LONGITUDINAL TRAVEL
ALIGN POWER FEED FOR CROSS TRAVEL
ALIGN POWER FEED FOR VERTICAL KNEE TRAVEL
ONE SHOT LUBRICATION SYSTEM
COOLANT SYSTEM WITH CHIP TRAY
VARIABLE SPEED THROUGH YASKAWA INVERTER DRIVE
3 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
