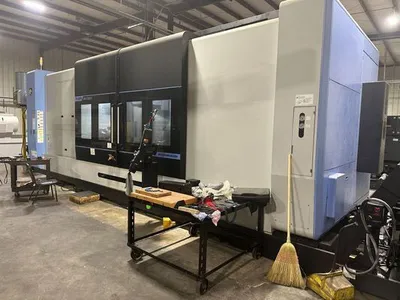

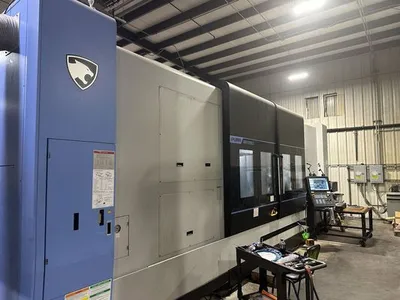

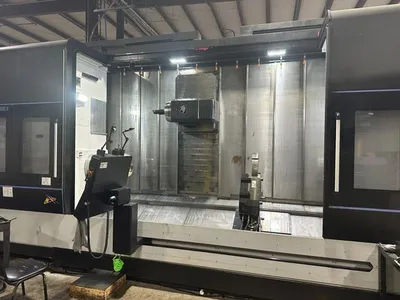

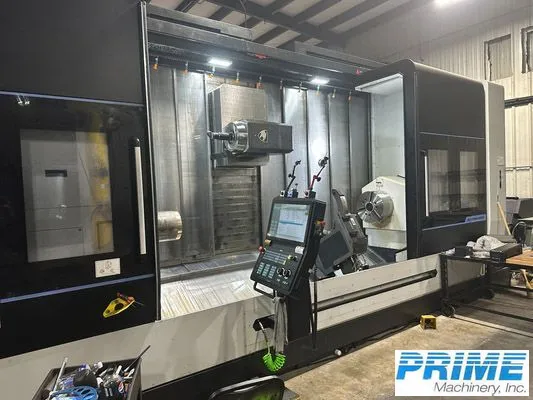

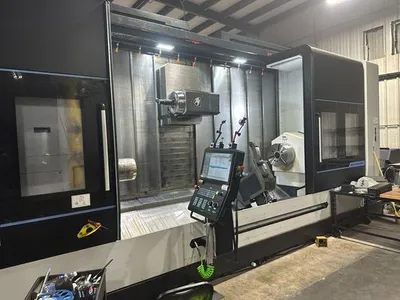

DN Solutions Puma SMX5100LS CNC Multi-Axis Turning Center - New: 2024

Swing over bed: 32.7”
Max turning diameter: 32.7”
Recom. Turning Diameter: 20.8”
Max turning length: 120.1”
Max Material Weight (Flange (Include Chuck) : 1,852 lbs
Bar capacity: 4.0”
X-Axis Travel: 35.8”
Y-Axis Travel: 20.5” (+/- 10.2”)
Z-Axis Travel: 126.6”
B-Axis: 240 Deg
C1-Axis: 360 Deg
C2-Axis: 360 Deg
Rapid Traverse X, Y, Z, A, B) 1574 IPM, 1574 IPM, 1574 IPM, 551 IPM, 30 R/min
Main spindle speed: 2,400 rpm
Main spindle power: 50/40 hp ((30 min / S1 cont)
Main Spindle Nose: A2-11
Main Spindle Bore: 4.7”
Min. Spindle Indexing Angle C1-Axis: .0001 Deg
Right Spindle Speed: 2400 RPM
Right Spindle Motor: 50 / 40 HP
Right Spindle Nose: A2-11
Right Spindle Bore: 4.7”
Right Spindle C-Axis: 0.0001 Deg
Milling Spindle Speed: 10,000 RPM
Milling Spindle Motor: 49.6 HP / 49.2 HP / 33.5 HP (2.5 min / 30 Min / Cont)
No. of Tool Stations: 40 ATC
Tool Shank: CAPTO C8
Max Tool Diameter: 5.3” / 10.2”
Max Tool Length / Weight: 23.6” / 66.1 lbs
Tool Change T to T / C to C: 2.13 sec / 19.67 sec
Main spindle torque: 1,212 ft-lb
Machine size: 375” x 132” x 142”
Machine weight: 70,989 lbs
