Used 1980 KURAKI KBT-1003W | BORING MILLS, HORIZONTAL, TABLE TYPE

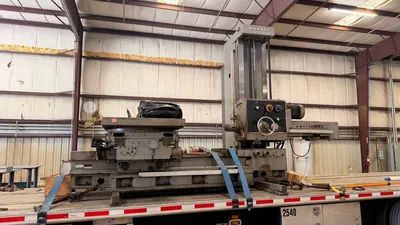

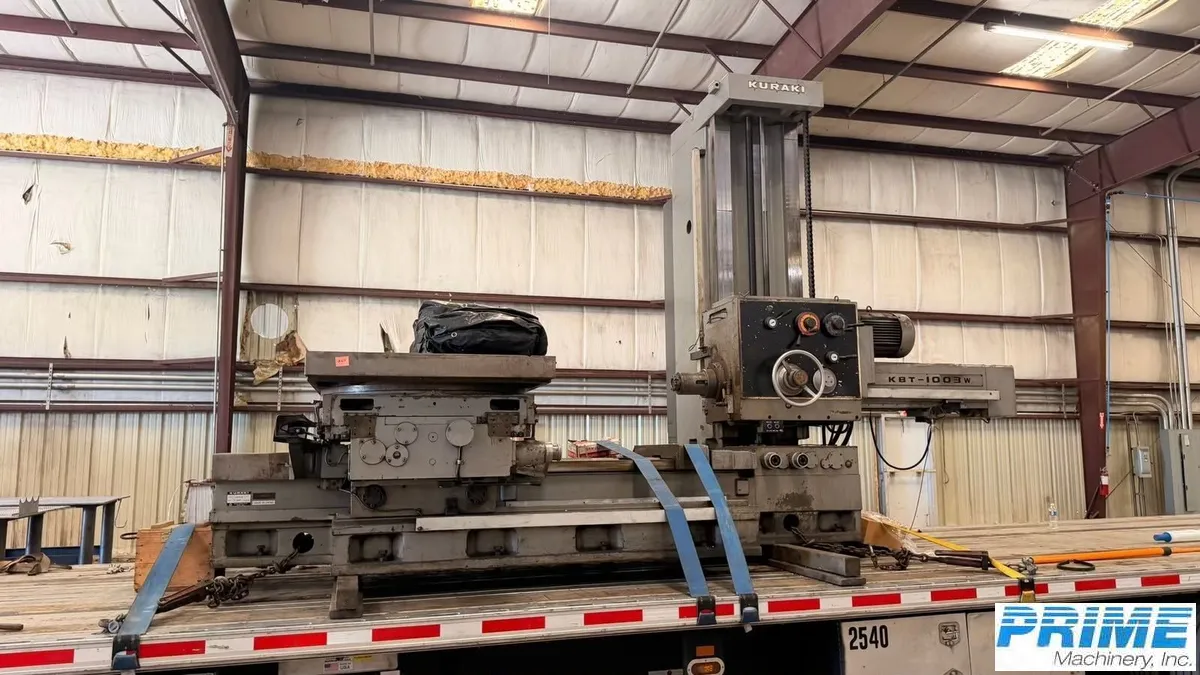

KURAKI TABLE TYPE HORIZONTAL BORING MILL
MODEL: KBT-1003W, S/N: 9257, NEW: 1980

SPECIFICATIONS:
SPINDLE DIAMETER ........................ 4"
SPINDLE TRAVEL .......................... 27.6"
SPINDLE HEAD VERTICAL TRAVEL ............ 49.2"
TABLE WORKING SURFACE (BUILT IN ROTARY) . 41.3" X 47.2"
TABLE CROSS TRAVEL ...................... 59"
TABLE IN AND OUT TRAVEL.................. 47.2"
MAXIMUM WEIGHT ON TABLE ................. 8,800 LBS
SPINDLE SPEEDS (16 SPEEDS) .............. 17 TO 1,200 RPM
BORING FEED RANGE (16) .................. 0.001 - .2 IPR
MILLING FEES (16) ....................... 0.25 - 48 IPR
SPINDLE TAPER ........................... 50 STD.
MAIN SPINDLE MOTOR ...................... 15 HP
APPROXIMATE MACHINE SIZE: 208" FB, 120" WIDE, 124" TALL
APPROXIMATE MACHINE WEIGHT: 36,300 LBS
