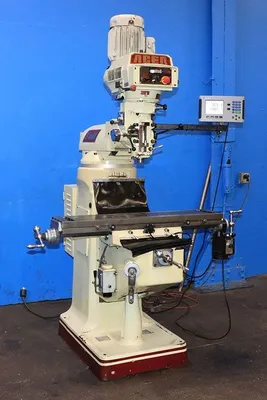

ACER MODEL: EVS-3VS VERTICAL MILLING MACHINE - MFG: 2003
ConditionUsed
1 available
$7,500.00 USD

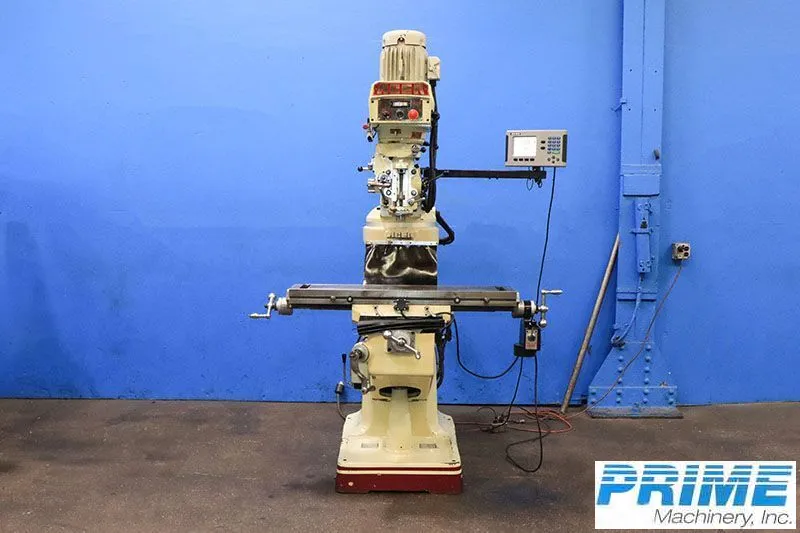

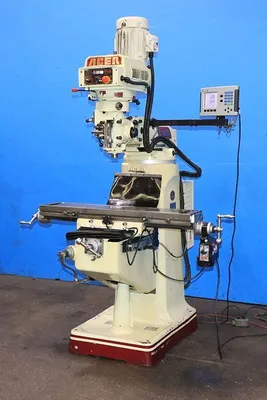

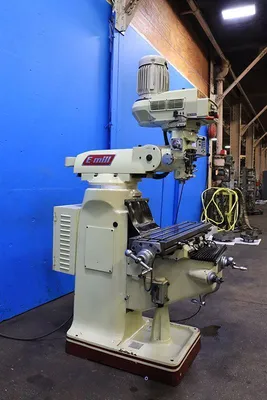

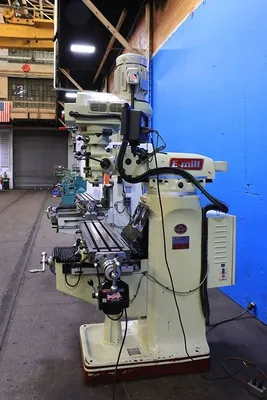

ACER EVS-3VS vertical milling machine from 2003. Features a 9" x 42" table, variable spindle speeds of 60-4,500 RPM, AC frequency inverter, and two-axis digital readout. Well-equipped with Servo power feed and one-shot lubrication system.

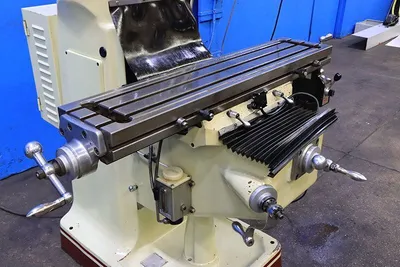

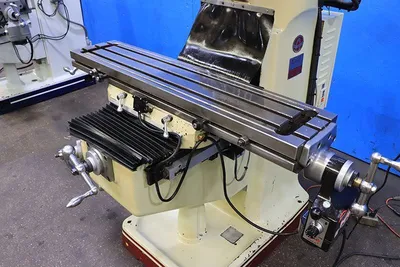

TABLE WORKING SURFACE ......................... 9" X 42"
NUMBER OF T-SLOTS (WIDTH) ..................... 3 (5/8")
RANGE: LONGITUDINAL, MANUAL (X) ............... 28"
CROSS (Y) ........................ 12"
VERTICAL, KNEE ................... 16"
QUILL (Z) ........................ 5"
RAM TRAVEL .................................... 20"
HEAD TILT, LEFT AND RIGHT ..................... 90 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY ............ 45 DEGREES
TURRET ROTATION ............................... 360 DEGREES
(3) POWER QUILL FEEDS ............ .0015, .003, .006 I.P.R.
QUILL DIAMETER ................................ 3-3/8"
INFINITELY VARIABLE SPINDLE SPEEDS ............ 60 - 4,500 RPM
SPINDLE TAPER ................................. R-8
MAXIMUM COLLET CAPACITY ....................... 3/4"
APPRROXIMATE DIMENSIONS .................. 79" x 74" x 90"H
APPROXIMATE WEIGHT ............................ 2,400 LBS.

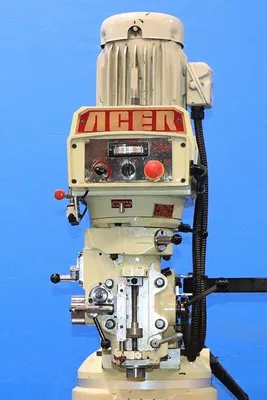

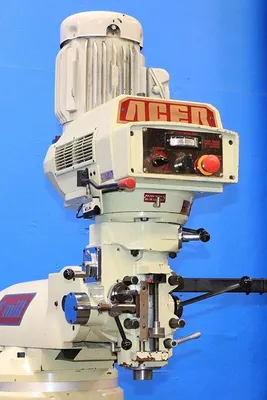

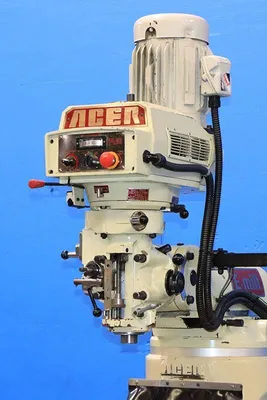

AC FREQUENCY INVERTER SPINDLE DRIVE
ACU-RITE TWO-AXIS DIGITAL READOUT

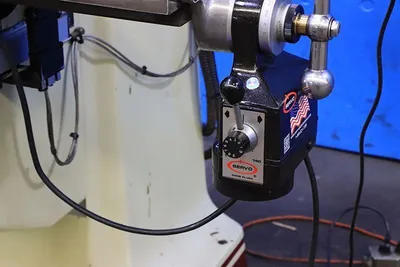

SERVO POWER FEED FOR LONGITUDINAL TABLE TRAVEL
HARDENED AND GROUND DOVETAIL WAYS FOR X & Y AXES
MEEHANITE CASTING
ONE-SHOT LUBRICATION SYSTEM
3 HORSE POWER SPINDLE DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
