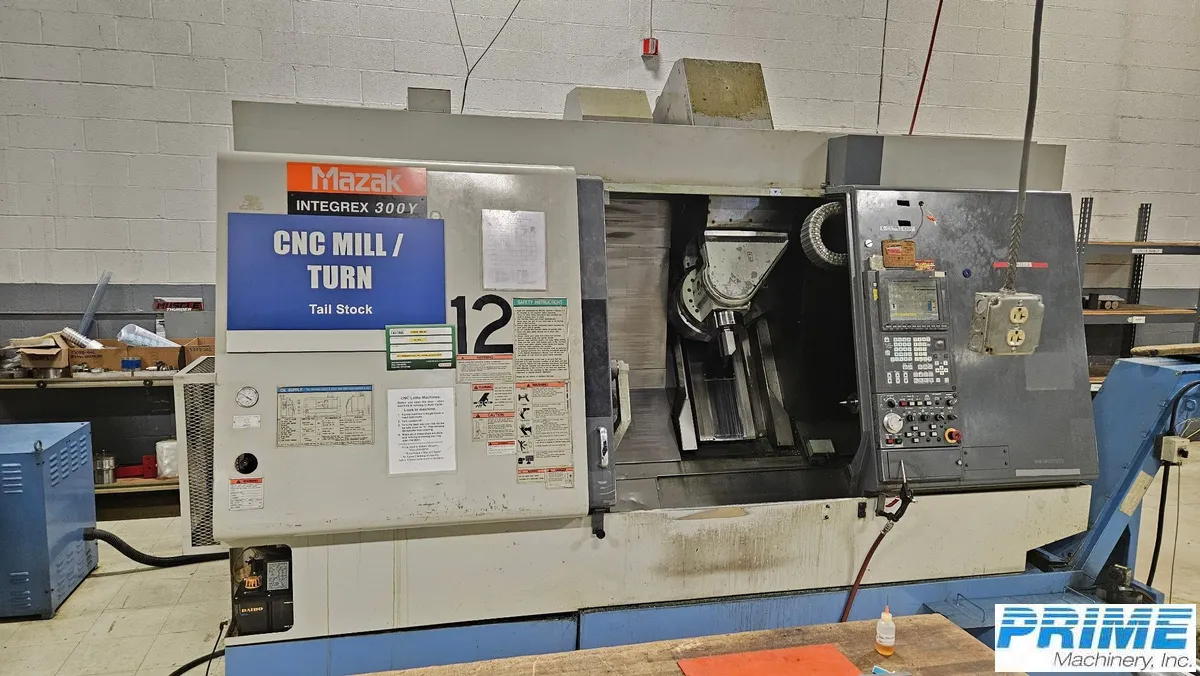

MAZAK INTEGREX MODEL: 300Y CNC Y-AXIS TURNING CENTER
ConditionUsed
1 available
MAZAK INTEGREX 300Y CNC lathe , boasts a 24.01" max swing and 40-tool capacity. Features include, Y-Axis, Fusion 640 MT CNC control, 10" 3-jaw chuck, and chip conveyor. With 35 HP spindle motor.
Maximum Swing / Swing Over Carriage 24.01" /15.35"
Maximum Machining Diameter 24.01"
Maximum Machining Length 40.71"
X-Axis Travel 28.8"
Y-Axis Travel 8.26"
Z-Axis 43.1"
C-Axis 0.001 Degree
Spindle Speed 3,500 RPM
Spindle Bore 3.46"
Rotary Tool Spindle speed 6,000 RPM
Tool Storage Capacity 40 Tools
Tailstock Travel 36.2"
Main Spindle Motor 35 HP
Rotary Tool Motor 20 HP
Floor Space Requirements 150" x 86"
Approximate Machine Weight 19,000 Lbs
Mazak Fusion 640 MT CNC Control
10" 3-Jaw Chuck
40 Position Tool Changer for Spindle
Tooling is KM63
Tailstock
Chip Conveyor
MAZAK INTEGREX 300Y CNC lathe , boasts a 24.01" max swing and 40-tool capacity. Features include, Y-Axis, Fusion 640 MT CNC control, 10" 3-jaw chuck, and chip conveyor. With 35 HP spindle motor.
Maximum Swing / Swing Over Carriage 24.01" /15.35"
Maximum Machining Diameter 24.01"
Maximum Machining Length 40.71"
X-Axis Travel 28.8"
Y-Axis Travel 8.26"
Z-Axis 43.1"
C-Axis 0.001 Degree
Spindle Speed 3,500 RPM
Spindle Bore 3.46"
Rotary Tool Spindle speed 6,000 RPM
Tool Storage Capacity 40 Tools
Tailstock Travel 36.2"
Main Spindle Motor 35 HP
Rotary Tool Motor 20 HP
Floor Space Requirements 150" x 86"
Approximate Machine Weight 19,000 Lbs
Mazak Fusion 640 MT CNC Control
10" 3-Jaw Chuck
40 Position Tool Changer for Spindle
Tooling is KM63
Tailstock
Chip Conveyor
