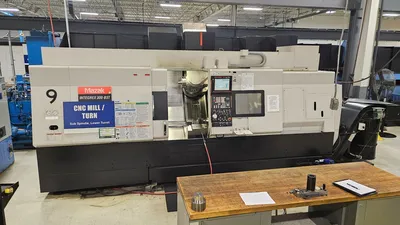

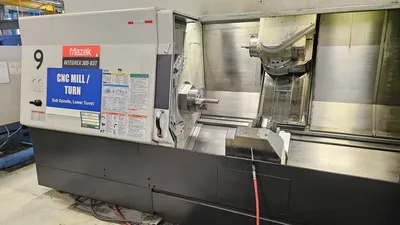

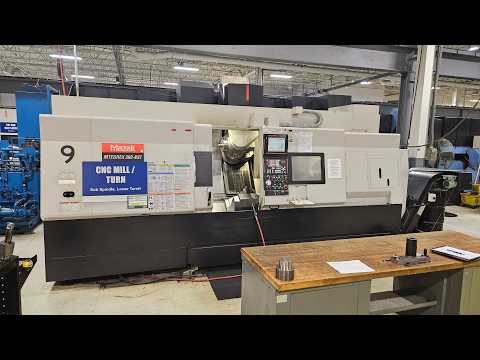

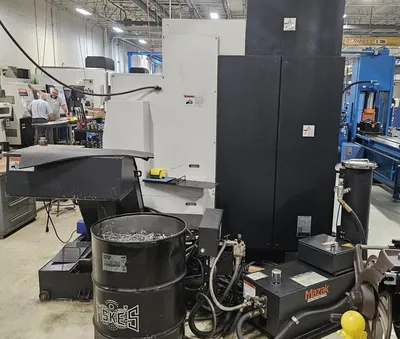

MAZAK INTEGREX 300-IIIST MULTI-AXIS CNC TURNING CENTER
ConditionUsed
1 available
MAZAK INTEGREX 300-IIIST lathe. Swing: 33.5", 60" machining length, 10" chucks for main and sub spindles, 3" bar capacity, 4,000 RPM, live tooling, sub spindle. Equipped with Mazak Mazatrol 640MT Pro control, chip conveyor, high pressure coolant.
Main SpindleSpeed 4,000 RPM
Sub Spindle Speed 4,000 RPM
Rotary Tool Speed 12,000 RPM
X/Y/Z/B Axis Travel (Upper Spindle) 60"/9.1"/62.4"
B-Axis Travel 225 Degrees
C-Axis Main Spindle 0.0001 Degree
C-Axis Sub Spindle 0.001 Degree
X2/Z2 Axis Travel (Lower Turret) 9.1"/60.2"
Tool Storage Capacity:
Upper Spindle Tool Capacity, 40 Tools
Lower Turret, 9 Position Drum
Main Spindle Bore 3.46"
Main Spindle Motor 40 HP
Sub spindle Motor 35 HP
Milling Motor 25 HP
Mazak Mazatrol 640MT Pro 5-Axis CNC Control

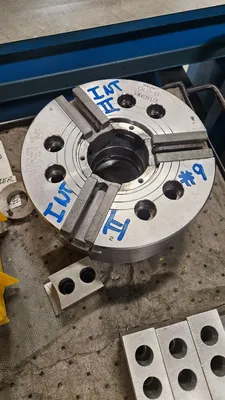

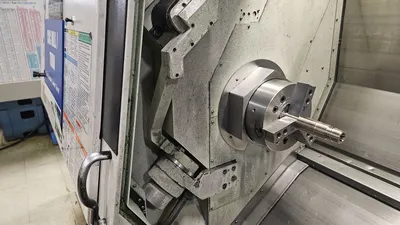

10" 3-Jaw Chucks for Main and Sub Spindle
Spindle Taper KM-63 Type Tooling

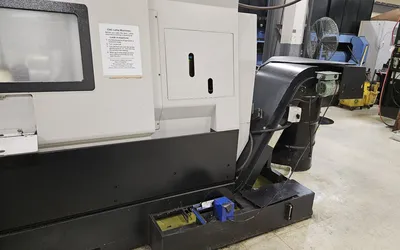

Chip conveyor
High Pressure Coolant
Very Clean and Ready to Show Under power In Plant
MAZAK INTEGREX 300-IIIST lathe. Swing: 33.5", 60" machining length, 10" chucks for main and sub spindles, 3" bar capacity, 4,000 RPM, live tooling, sub spindle. Equipped with Mazak Mazatrol 640MT Pro control, chip conveyor, high pressure coolant.
Imperial
| Swing | 33.5" |
| Machining Length | 60" |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Power | 35 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 10" |
| Tailstock | No |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Control | CNC |
| Dimensions | 202" x 98" |
| Weight | 30,000 bs |
Main SpindleSpeed 4,000 RPM
Sub Spindle Speed 4,000 RPM
Rotary Tool Speed 12,000 RPM
X/Y/Z/B Axis Travel (Upper Spindle) 60"/9.1"/62.4"
B-Axis Travel 225 Degrees
C-Axis Main Spindle 0.0001 Degree
C-Axis Sub Spindle 0.001 Degree
X2/Z2 Axis Travel (Lower Turret) 9.1"/60.2"
Tool Storage Capacity:
Upper Spindle Tool Capacity, 40 Tools
Lower Turret, 9 Position Drum
Main Spindle Bore 3.46"
Main Spindle Motor 40 HP
Sub spindle Motor 35 HP
Milling Motor 25 HP
Mazak Mazatrol 640MT Pro 5-Axis CNC Control
10" 3-Jaw Chucks for Main and Sub Spindle
Spindle Taper KM-63 Type Tooling
Chip conveyor
High Pressure Coolant
Very Clean and Ready to Show Under power In Plant
