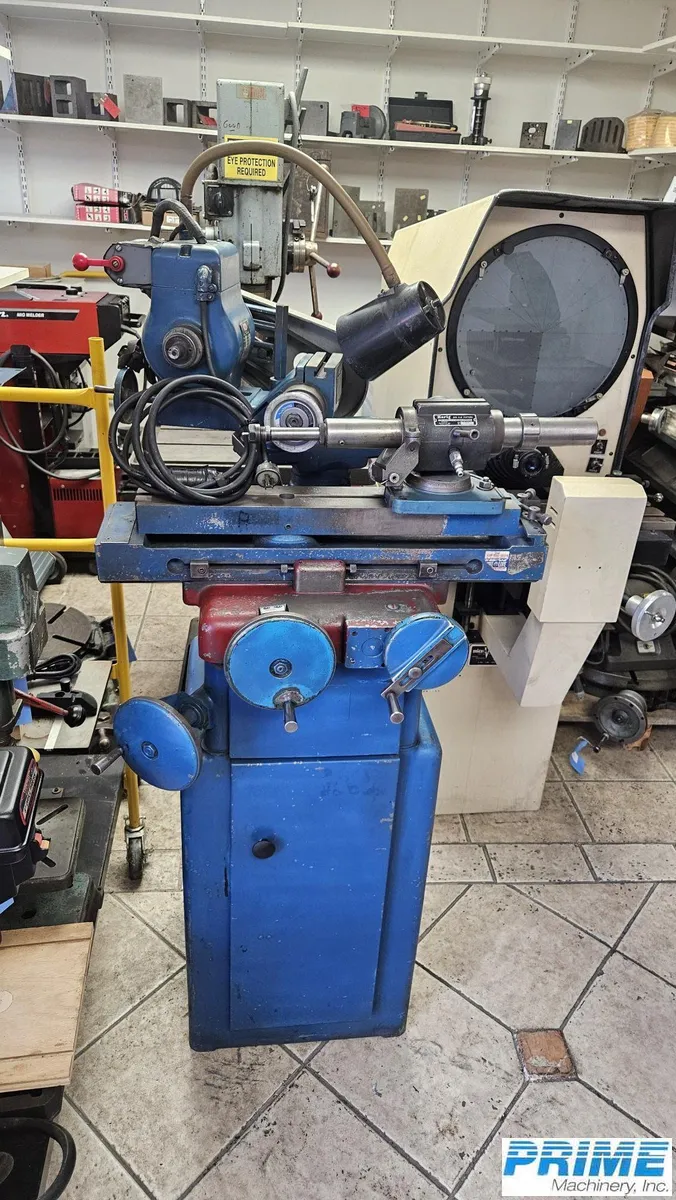

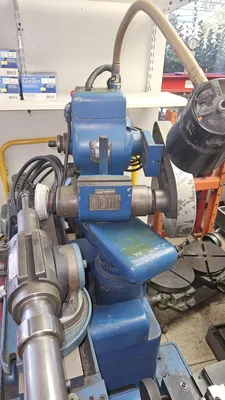

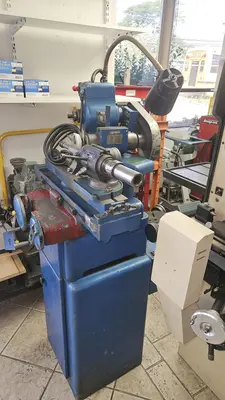

K.O. LEE MODEL: B360 UNIVERSAL TOOL & CUTTER GRINDER, WITH K.O. LEE B955 WHEELHEAD

K.O. LEE UNIVERSAL TOOL & CUTTER GRINDER,
WITH K.O. LEE B955 WHEELHEAD

MODEL: B360 S/N: 10267-67 NEW: 1967

SWING OVER TABLE ..................... 8-1/4"
DISTANCE BETWEEN TAILSTOCKS .......... 17"

TABLE WORKING SURFACE ............ 3-5/8" x 22-1/2"
SUB TABLE ........................ 6-3/8" x 26-1/4"

TOTAL CROSS FEED MOVEMENT ............ 4-3/4"
FEED PER REV. OF HANDWHEEL
(.001" GRAD.) ....................... 0.100"

TABLE TRAVERSE ....................... 10"
FAST FEED PER REV. OF HANDWHEEL ..... 2-3/4"
SLOW FEED PER REV. OF HANDWHEEL ..... 15/16"

VERTICAL MOVEMENT OF COLUMN .......... 6- 3/4"
FEED PER REV. OF HANDWHEEL
(.001" GRAD.) ....................... 0.040"

MIN./MAX. DISTANCE CENTERLINE
OF WHEEL SHAFT TO TOP OF TABLE ... 3-3/4" / 10-3/4"

MAX. DISTANCE FROM COLUMN TO
OUTSIDE OF STRAIGHT WHEEL,
DOVETAIL SLIDE NOT EXTENDED,
SPINDLE 90 DEGREES TO TABLE ........ 4-1/2"

SLIDE EXTENDED ...................... 10-11/16"

TABLE SWIVELS
(3" PER FT., 15° LEFT & RIGHT) ..... 225°
WHEELHEAD SWIVELS ................... 360°

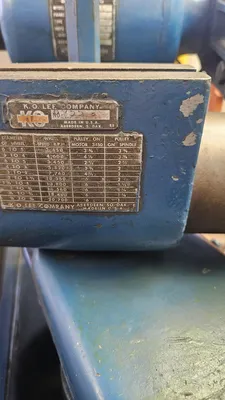

GRINDING WHEEL SPINDLE,
SPEED RANGE .................... 3,450 TO 20,700 RPM
GRINDING WHEEL SIZES AVAILABLE TO
USE WITH THE B955 WHEELHEAD ...... 1/4" TO 6" DIA.
MAX. CROSS FEED SURFACE GRINDING .... 2-3/4"

APPROX. MACHINE WEIGHT .............. 500 LBS
