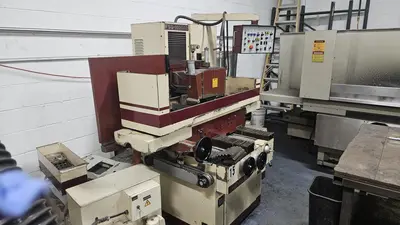

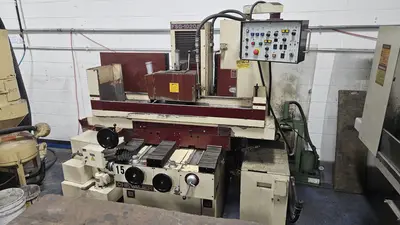

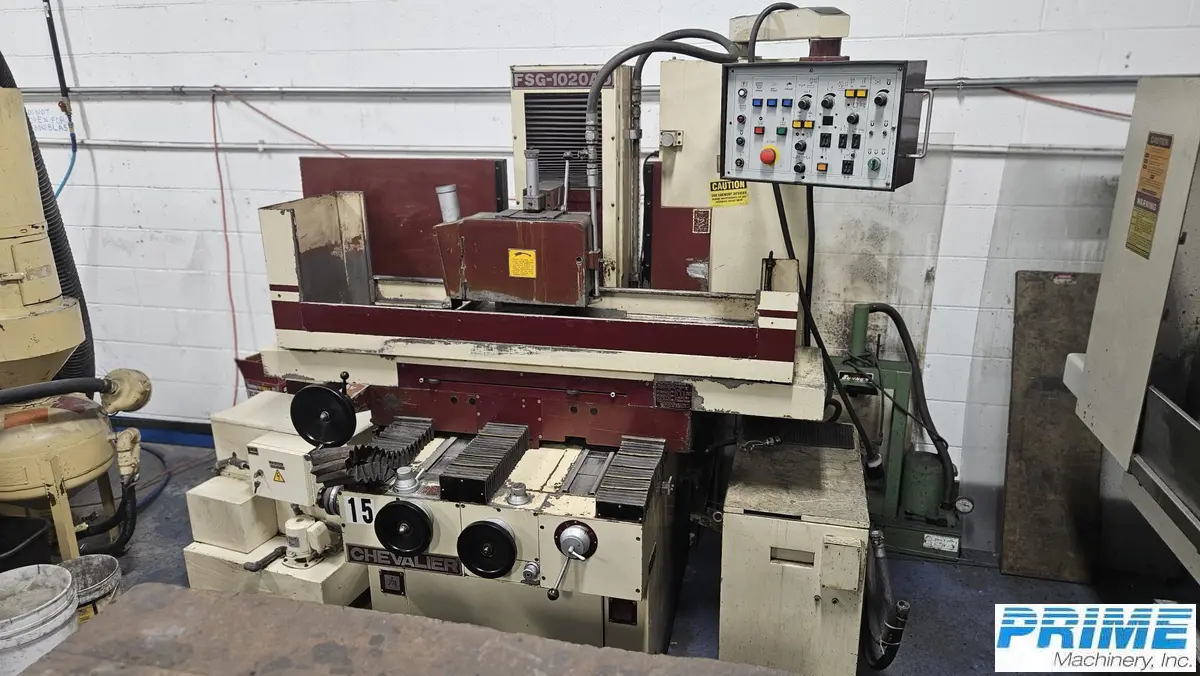

10" X 20" CHEVALIER MODEL: FSG-1020AD PRECISION SURFACE GRINDER WITH PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED
ConditionUsed
1 available
$9,950.00 USD
1989 Chevalier FSG-1020AD precision surface grinder with 10" x 20" capacity, programmable microprocessor auto-cycle, automatic incremental downfeed, hydraulic table traverse, 12" wheel, electromagnetic chuck, coolant system and 3 HP spindle.
10" X 20" CHEVALIER
PRECISION SURFACE GRINDER
WITH PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED
MODEL: FSG-1020AD
S/N: E178B004
NEW: 1989
"A "TRUE 10"x 20" CAPACITY MACHINE
(NOT 8" x 18") WITH A
12" GRINDING WHEEL TOO!"
MAX. GRINDING CAPACITY .............. 10" x 20"
MAX. LONGITUDINAL TABLE TRAVEL,
HYDRAULIC ......................... 21"
MAX. LONGITUDINAL TABLE TRAVEL,
MANUAL ............................ 22"
MAX. CROSSFEED TRAVEL, AUTOMATIC .... 11"
MAX. CROSSFEED TRAVEL, MANUAL ....... 11- 1/8"
DIST. FROM SPINDLE CENTER TO TABLE .. 21"
VARIABLE TABLE SPEED, HYDRAULIC ..... 16' TO 98' FPM
AUTOMATIC CROSSFEED INCREMENT ....... 0.02" TO 1/2"
CROSSFEED HANDWHEEL, PER GRAD. ...... 0.0025"
PER REVOLUTION ...................... 0.25"
MICROFEED, PER REVOLUTION ........... 0.005"
PER GRADUATION ...................... 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED ...... 0.00005" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ... 0.0005"
PER REVOLUTION ...................... 0.05"
MICROFEED ........................... 0.00005"/.0001"
RAPID TRAVERSE RATE ................. 8" IPM
SPINDLE MOTOR ....................... 3 HP

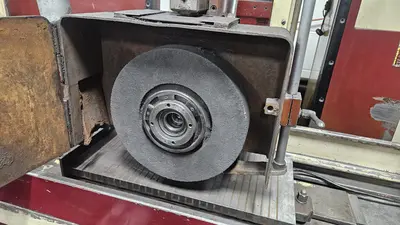

STANDARD GRINDING WHEEL ............. 12" DIA.
APPROX. WEIGHT ...................... 4,850 LBS.
APPROX. DIMENSIONS .................. 85" x 48 x 65"H
FULLY PROGRAMMABLE MICROPROCESSOR AUTO-CYCLE
CONTROL W/DIGITAL DISPLAY
AUTOMATIC INCREMENTAL DOWNFEED (PLUNGE & SURFACE)
SPARKOUT CYCLE W/AUTOMATIC WHEELHEAD RETRACTION
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
ELECTRONIC CROSS & VERTICAL FEEDS
TABLE RIDES ON HARDENED WAYS W/LINEAR NEEDLE BEARINGS
TABLE, SADDLE & VERTICAL AXES RIDE ON HARDENED & GROUND
DOUBLE VEE GUIDE-WAYS W/LINEAR NEEDLE ROLLER BEARINGS
FINE FEEDS FOR CROSS & VERTICAL AXES (.00005" GRAD.)

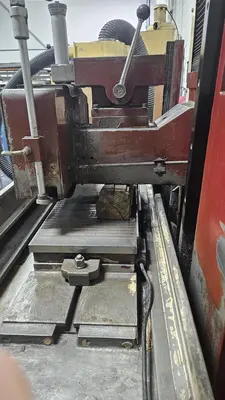

10" X 20" CHEVALIER MODEL "ELC-2550C" ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL
OVER-THE-WHEEL WHEEL DRESSER WITH MICROMETER ADJUSTMENT
COOLANT SYSTEM W/PAPER FILTRATION
EXTERNAL HYDRAULIC SYSTEM
AUTO LUBE SYSTEM
3 H.P/3/60/220-440 SUPER-PRECISION DIRECT DRIVE SPINDLE
MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLT OPERATION
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** ORIGINAL PAINT - EXCELLENT APPEARANCE **
** SUPERIOR CONDITION **
