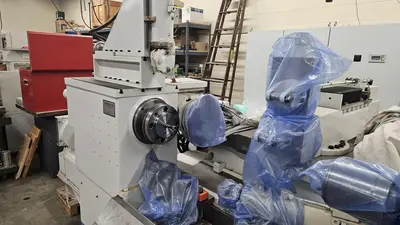

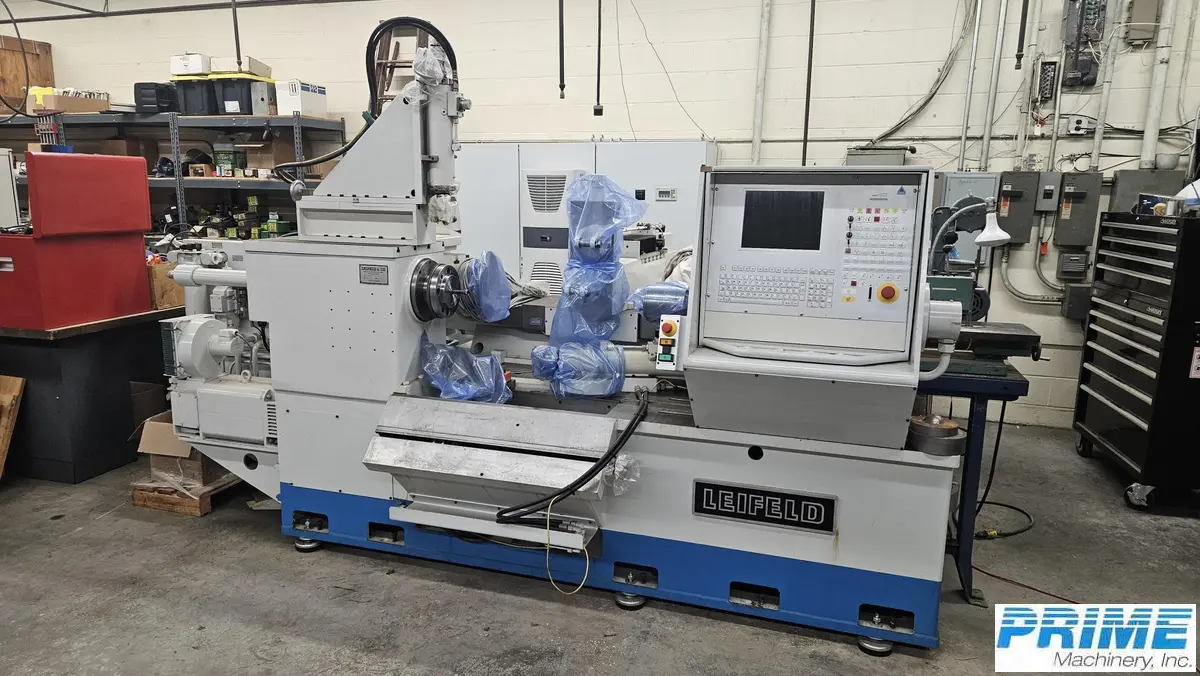

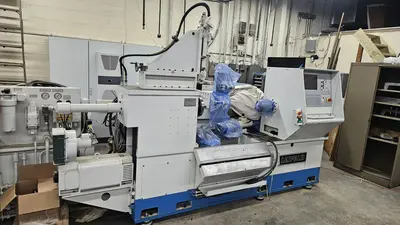

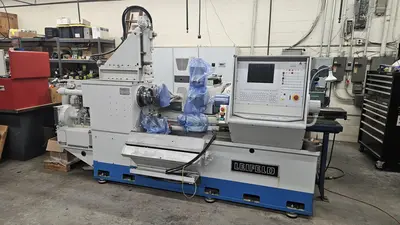

LEIFELD PNC 90 SPINNING LATHE

Sell Your LEIFELD PNC 90
LATHES, SPINNING
Manufacturer:
LEIFELD
Model:
PNC 90
Stock #:
69408

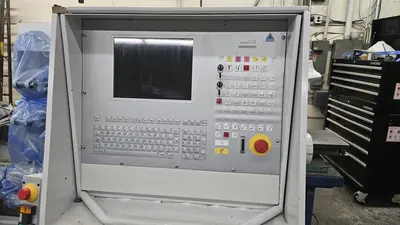

The PNC 90 is a multipurpose machine designed to encompass a large variety of spinform applications, in different shapes and sizes. Automatic, multipurpose, precision spinforming machine with two roller changer and two axes. This automatic spinforming machine is equipped with a computer numerical system, including software for programming single pass shear form or multiple pass spinforming operations. The PNC 90 is economical for short runs with frequent setup changes or for extended production runs. Factory Overhauled in 2014 and never used

Technical Data
Center Height 17 inches
Blank Diameter 35 inches
Distance between Centers 36 inches
Slide Stroke Longitudinal 17 inches
Slide Stroke Transverse 12 inches
Slide Power Longitudinal Force 10,100 lbs
Slide Power Transverse 10,100 lbs
Tailstock Force 7,400 lbs
Tailstock Stroke 17 inches
Ejector Stroke 11.75 inches

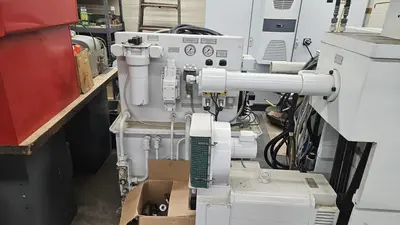

Hydraulic Motor Power 20 H.P.
Dimensions:
Length 19'
Width 10.5'
Height 8'
Net Weight 10,000 lbs

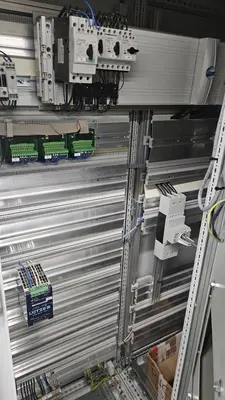

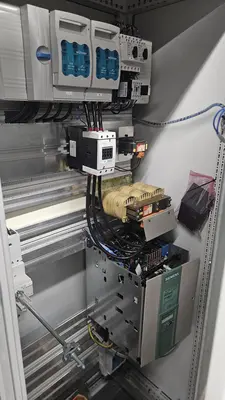

Machine was factory Overhauled Electrically, Hydraulically and Mechanically in 2014 and never used.

This equipment has been sold. Similar equipment available now is shown below.
