MAZAK QTN 350-II/1500 CNC TURNING CENTER NEW: 2008
ConditionUsed
1 available
For sale: 2008 Mazak QTN 350-II/1500 CNC Turning Center. Features a 26.77" max swing, 60.672" machining length, 3300 RPM spindle speed, and Mazatrol Nexus Matrix Control. Includes 15" hydraulic chuck, 12-position turret, tailstock, and chip conveyor.
MAZAK QTN 350-II/1500 CNC TURNING CENTER
NEW: 2008
SPECIFICATIONS:
MAX. SWING ..................... 26.77"
SWING OVER CARRIAGE ............ 16.54"
MAX. MACHINING LENGTH .......... 60.672
BAR WORK CAPACITY .............. 4.0"
X-AXIS TRAVEL .................. 8.875"
Z-AXIS TRAVEL .................. 63.625"
CHUCK SIZE ..................... 15"
SPINDLE SPEED .................. 3300 RPM
SPINDLE NOSE ................... A2-11
SPINDLE BORE ................... 4.41"
TURRET TYPE .................... 12 POSITION DRUM TYPE
NUMBER OF TOOLS ................ 12
TURNING TOOL SHANK ............. 1"
BORING BAR SHANK DIAMETER ...... 1-1/2"
TAILSTOCK STROKE ............... 62.375"
TAILSTOCK TAPER ................ MT#5
MAIN SPINDLE MOTOR ............. 40/30HP
APPROX. WEIGHT ................. 17,000 LBS.
EQUIPPED WITH:
- MAZATROL NEXUS MATRIX CONTROL
- TOOLEYE
- 15" 3-JAW HYDRAULIC CHUCK

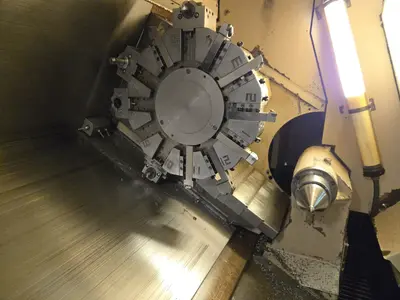

- 12 POSITION TURRET
- TAILSTOCK
- CHIP CONVEYOR
- ALL AVAILABLE TOOLHOLDERS AND MANUALS
Inspect Under Power in our NJ Warehouse. We will Prep and Load for you.
