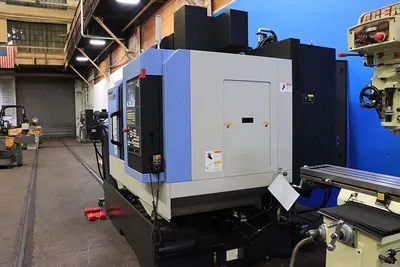

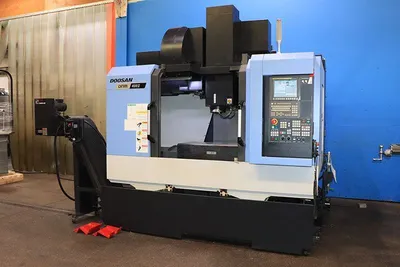

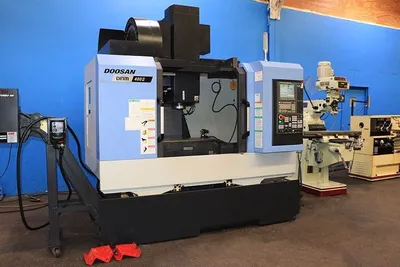

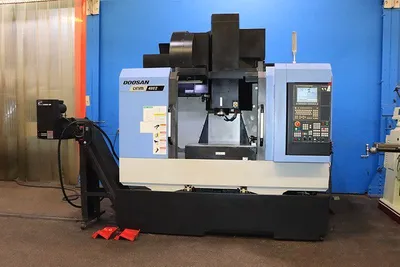

DOOSAN MODEL: DNM-400 II VERTICAL MACHINING CENTER - YEAR: 2015
ConditionUsed
1 available
$44,500.00 USD
DOOSAN DNM-400II Vertical Machining Center, 2015 model. Features include 30" X-axis travel, 1320 lbs table load, 24.8 HP spindle motor, 12,000 RPM speed, and FANUC 0i-MD CNC control. Comes with tool probe, spindle chiller, and chip conveyor.
X-AXIS TRAVEL.............. 30" / 762mm
Y-AXIS TRAVEL.............. 17.1" / 435mm
Z-AXIS TRAVEL.............. 20.1" / 510mm

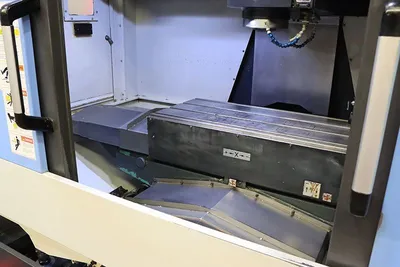

TABLE SIZE................. 36.2" X 17.1" / 1200mm X 540mm
MAXIMUM TABLE LOAD......... 1320 LBS / 600 kg
SPINDLE NOSE TO TABLE TOP.. 5.9" - 26"
SPINDLE MOTOR.............. 24.8 HP
MAX SPINDLE SPEED.......... 12,000 RPM
SPINDLE TAPER.............. CT 40 BIG PLUS
AUTOMATIC TOOL CHANGER..... 30 TOOLS
RAPID TRAVERSE RATES X-Y/Z. 1417/1181 IPM
APPROXIMATE MACHINE DIMS... 82.5" X 114" X 106.5"
APPROXIMATE MACHINE WEIGHT. 12,500 LBS

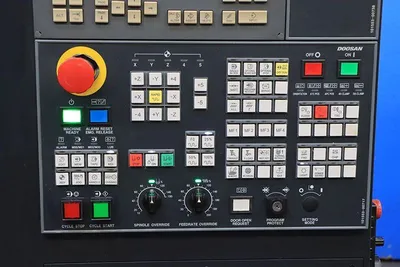

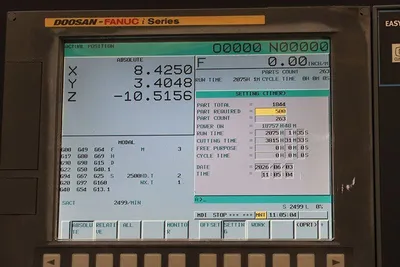

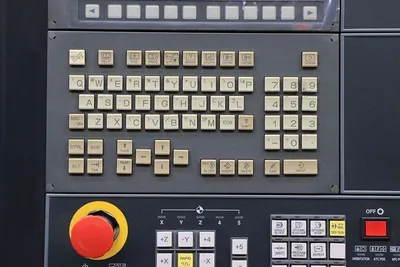

FANUC 0i-MD SERIES CNC CONTROL w/EZ-GUIDE I
REMOTE JOG HANDLE

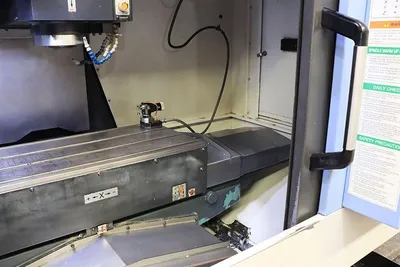

TOOL TOUCH PROBE
COOLANT THRU SPINDLE
SPINDLE CHILLER
TWIN AUGERS

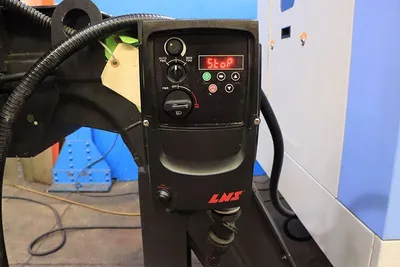

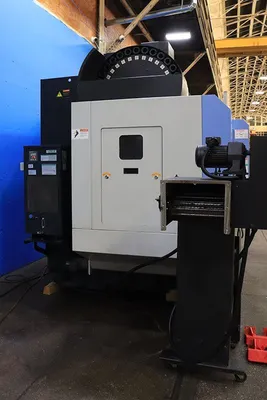

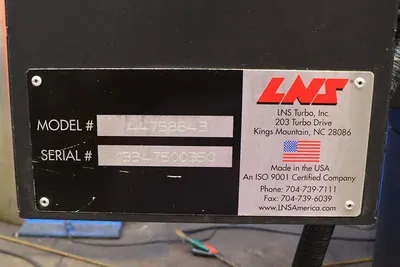

LNS CHIP CONVEYOR
30 STATION SIDE MOUNT ATC
