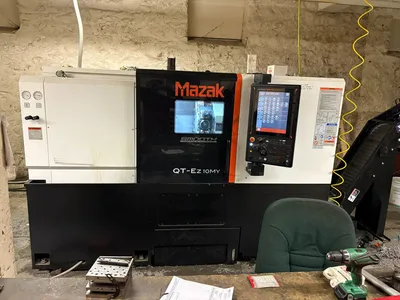

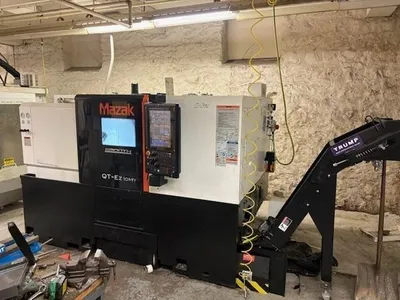

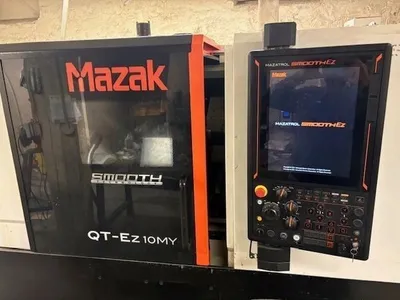

Mazak QT-EZ 10MY new 2022

Specifications QT-Ez 10MY
New 2022 with only 1,737 Cutting Hours

Capacity Maximum Swing 27.4"
Maximum Machining Diameter 13.5"
Standard Machining Diameter 9.25"
Maximum Bar Work Capacity 3.0"
Maximum Support Weight (Chuck) 200 lbs
Maximum Support Weight (Shaft Work 1,100 lbs
Maximum Machining Length (500U) 20.2"
Main Spindle Chuck Size 10"
Maximum Speed 4,200 rpm
Maximum Speed of STD Chuck 4,200 rpm
Motor Output (30 minute rating) 20 hp
Spindle Torque (Max) ft-lbs / N-m 123 / 167
Spindle Nose A2-6
Turret Number of Tools Number 12

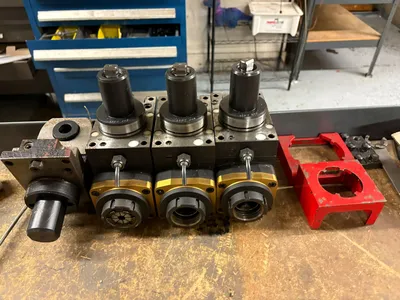

Live Tooling Maximum Speed 6,000 rpm
Motor Output (10 minute rating) hp/kw 7.5 / 5.5
Feed Axes
Travel (X Axis) in/mm 8.5 / 215
Travel (Y Axis) in/mm 4 / 100
Travel (Z Axis) in/mm 25 / 635

Dimensions
Machine Depth 75 "
Machine Length 109.1 "
Machine Height 67.9"
Machine Weight 12,000 lbs
