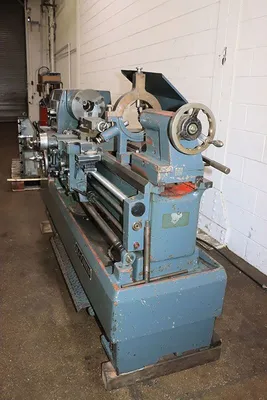

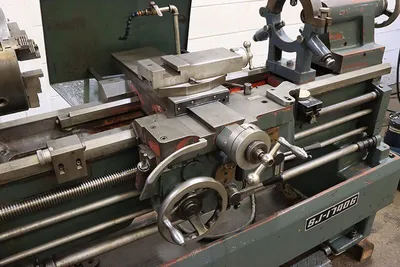

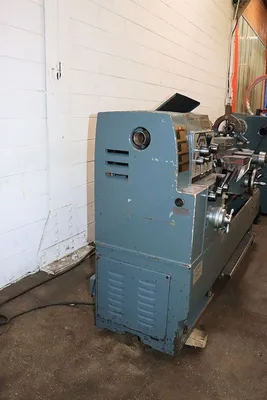

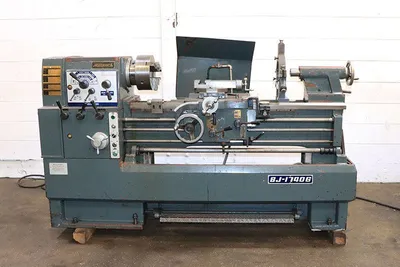

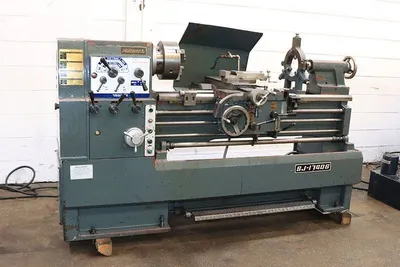

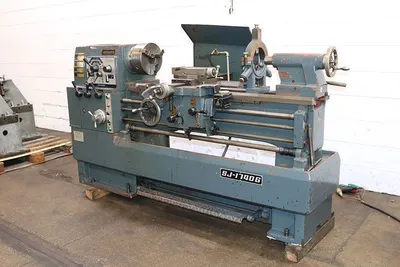

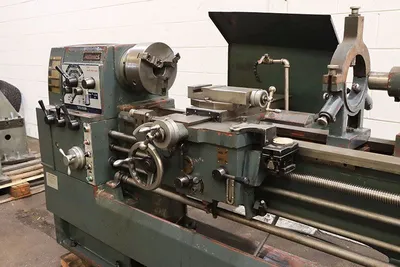

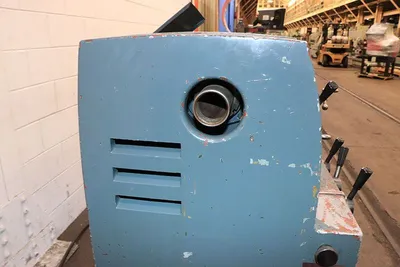

17"/25" x 40" MILLPORT MODEL: SJ1760G GAP BED ENGINE LATHE - NEW: 1984
ConditionUsed
1 available
$7,500.00 USD
1984 Millport SJ1760G gap bed engine lathe, 17" swing, 40" centers, 32-2000 RPM, D1-6" camlock spindle, equipped with 3-jaw chuck, steady rest, and coolant system. Used condition.
SWING OVER BED ....................... 17"

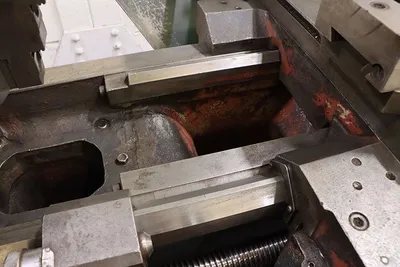

SWING IN GAP ......................... 25"
SWING OVER CROSS SLIDE ............... 10"
HOLE THRU SPINDLE .................... 2-9/32"
DISTANCE BETWEEN CENTERS ............. 40"
WIDTH OF BED ......................... 11-3/4"
SPINDLE NOSE ......................... D1-6"CAMLOCK

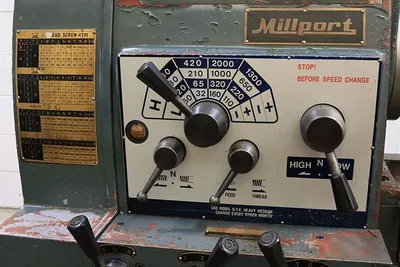

SPINDLE SPEED RANGE (16) ............. 32 - 2000 RPM
LONGITUDINAL FEED RANGE (30) ......... .0035 - .0252 IPR
CROSS FEED RANGE (30) ................ .001 - .0076 IPR

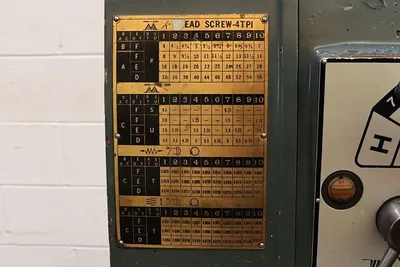

ENGLISH THREADING RANGE ............. 2 - 56 TPI
METRIC THREADING RANGE ............... .5 - 7 mm
TAILSTOCK SPINDLE TRAVEL ............. 5"
TAILSTOCK SPINDLE TAPER .............. #4MT
APPROXIMATE DIMENSIONS ............... 88"L X 40"W
APPROX WEIGHT ........................ 4,500 LBS

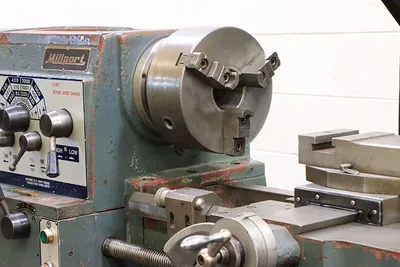

3-JAW CHUCK
TRAV-A-DIAL FOR LONGITUDINAL CARRIAGE TRAVEL

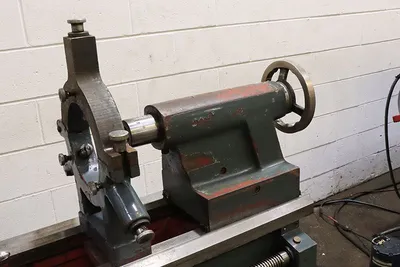

ROLLER TYPE STEADY REST
LIVE CENTER FOR TAILSTOCK
THREAD DIAL INDICATOR
MICROMETER CARRIAGE STOP
MULTIPLE CARRIAGE STOP

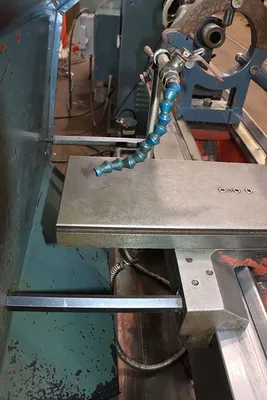

COOLANT SYSTEM
REMOVEABLE CHIP PAN
HARDENED & GROUND BEDWAYS
7.5 HORSE POWER MAIN MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
