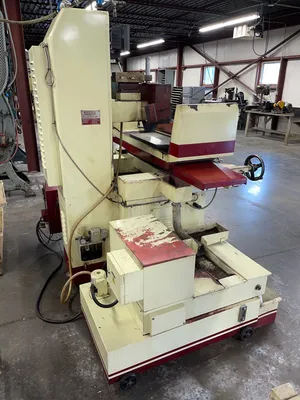

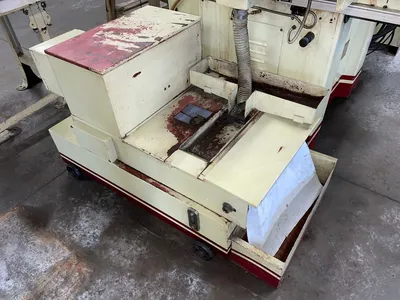

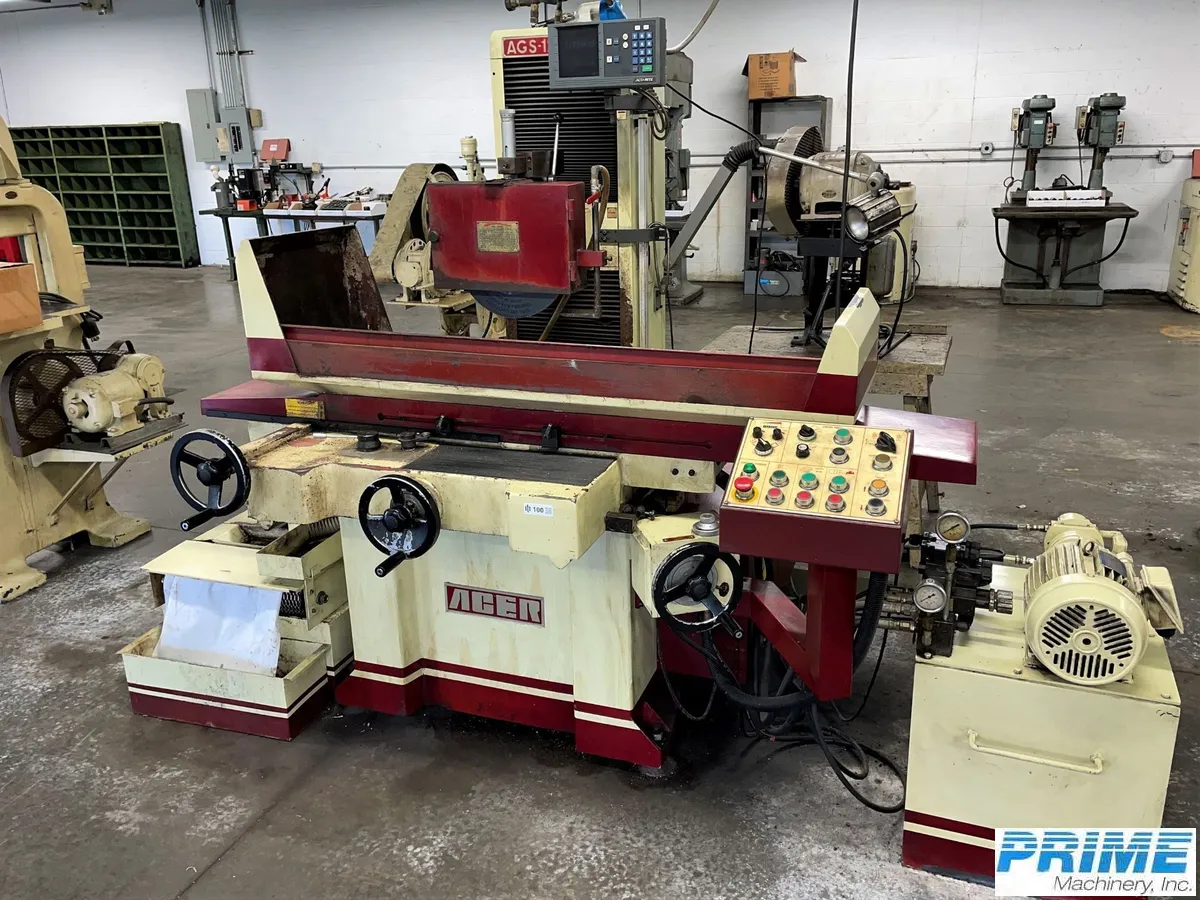

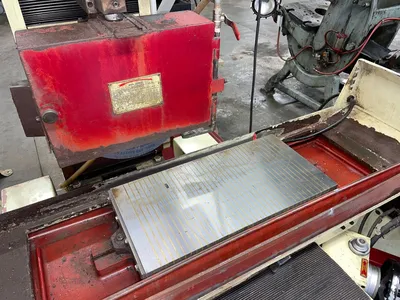

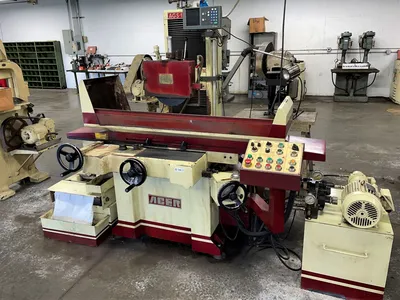

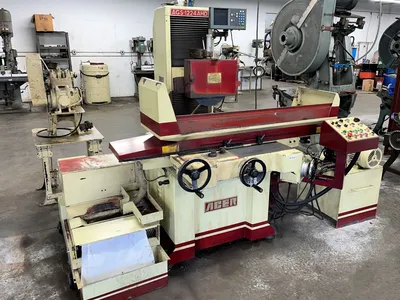

12" X 24" ACER MODEL: AGS-1224AHD HYDRAULIC SURFACE GRINDER

12" X 24" ACER HYDRAULIC SURFACE GRINDER
W/AUTOMATIC INCREMENTAL DOWNFEED

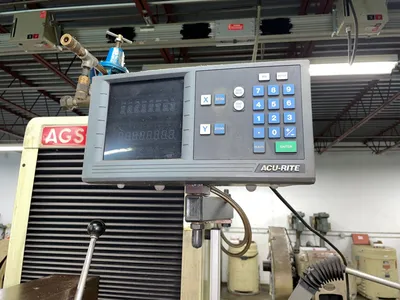

WITH "ACU-RITE" 2-AXIS DRO

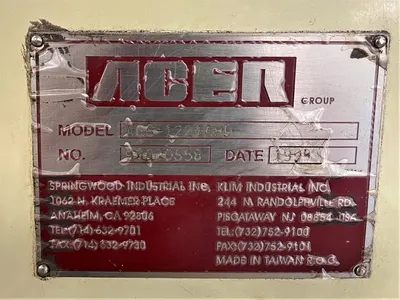

MODEL: AGS-1224AHD S/N: 99070558 NEW: 1999

MAX. SURFACE GROUND ........................ 12" X 24"
DIST. FROM SPINDLE CENTER TO TABLE ......... 23- 1/2"

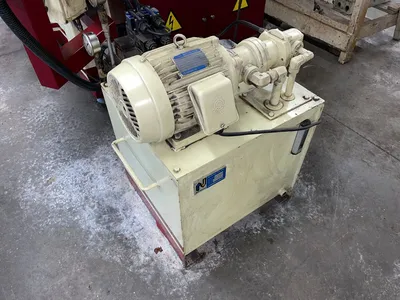

VARIABLE TABLE SPEED, HYDRAULIC ...... 16' TO 80' FPM
MAX. TABLE TRAVEL .......................... 26.5"
AUTOMATIC CROSSFEED INCREMENT .............. 0" TO 1"
MAX. CROSSFEED TRAVEL (AUTO FEED) .......... 14"
PER REVOLUTION ............................. 0.1"
CROSSFEED HANDWHEEL PER GRADUATION ......... 0.001"
PER REVOLUTION ............................. 0.2"
AUTO INCREMENTAL DOWNFEED .................. 0.001" TO .0001"
VERTICAL GRADUATION ........................ 0.0005"
VERTICAL REVOLUTION ........................ 0.1"
MICRO ADJUSTMENT FOR VERTICAL HANDWHEEL .... 0.0001" GRAD.
SPINDLE MOTOR .............................. 5 H.P.
STANDARD GRINDING WHEEL .................... 14"D x 1- 1/4" x 5"
SPINDLE SPEED .............................. 1,750 RPM
MAXIMUM TABLE LOAD CAP. INCLUDING CHUCK .. 1,000 LBS.

APPROX. WEIGHT ............................. 4,180 LBS
FLOOR SPACE REQUIRED .................. 84"L-R x 67"W x 89"H
