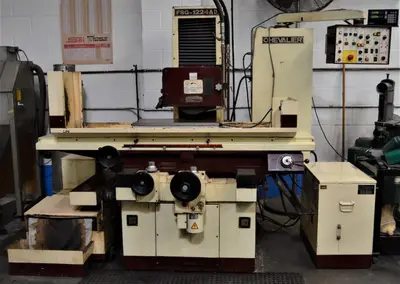

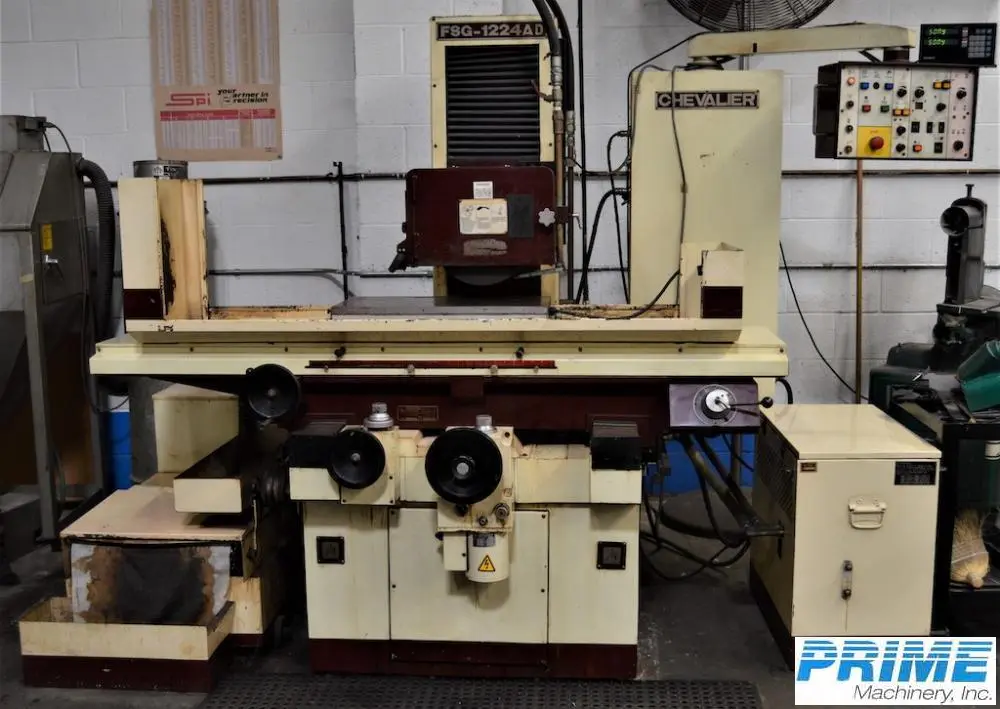

12" X 24" CHEVALIER MODEL: FSG-1224AD PRECISION SURFACE GRINDER - NEW: 1995
ConditionUsed
1 available
$12,500.00 USD
CHEVALIER FSG-1224AD, 1995 surface grinder with programmable microprocessor control, hydraulic table feed, electromagnetic chuck, and original paint. Features a SONY digital readout and external coolant system. A robust addition to your workshop.
12" X 24" CHEVALIER PRECISION SURFACE GRINDER
W/PROGRAMMABLE MICROPROCESSOR AUTOMATIC
INCREMENTAL DOWNFEED CONTROL (PENDANT MOUNTED)
MODEL: FSG-1224AD S/N: F1841006 NEW: 1995
TABLE SIZE......................... 11-3/4" X 25-3/8"
MAX. GRINDING CAPACITY .................... 12" X 24"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC ... 25-5/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ...... 27-1/2"
MAX. CROSSFEED TRAVEL, AUTOMATIC ................ 12"
MAX. CROSSFEED TRAVEL, MANUAL ............... 13-3/4"
DIST. FROM SPINDLE CENTER TO TABLE .......... 19-3/4"
VARIABLE TABLE SPEED, HYDRAULIC ...... 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT ........ 1/8" TO 1-1/4"
CROSSFEED HANDWHEEL, PER GRADUATION ......... 0.0025"
PER REVOLUTION ................................ 0.25"
MICROFEED, PER REVOLUTION ................... 0.0005"
PER GRADUATION ............................. 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED .... 0.00005" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ........... 0.0005"
PER REVOLUTION ................................ 0.05"
MICROFEED ........................... 0.00005"/.0001"
RAPID TRAVERSE RATE .......................... 8" IPM
SPINDLE MOTOR .................................. 5 HP
STANDARD GRINDING WHEEL ......... 14"DIA. X 2"W X 5"B
APPROX. WEIGHT ............................ 4,850 LBS
APPROX. DIMENSIONS ................. 98" X 68" X 88"H
EQUIPPED WITH:
PENDANT MOUNTED AND MICROPROCESSOR CONTROLLED AUTOMATIC
INCREMENTAL DOWNFEED OF GRINDING WHEELHEAD FROM 0.00005"
T0 0.002" IN SURFACE OR PLUNGE MODES OF OPERATION. FULLY
AUTOMATIC GRINDING CYCLE INCLUDING RAPID ADVANCE OF
GRINDING WHEELHEAD, 0 T0 7 SPARKOUT PASSES, AND RETRACTION
OF WHEELHEAD TO A PRE-SET DISTANCE AT THE COMPLETION OF
THE CYCLE.
HYDRAULICALLY ACUTATED LONGITUDINAL TABLE FEED
ELECTROMECHANICALLY ACTUATED FEED OF SADDLE
TABLE AND SADDLE GUIDE WAYS MADE OF SPECIAL STEEL RAILS
WITH HIGH ACCURACY STEEL ROLLERS
PRECISION NEEDLE ROLLER BEARINGS USED ON THE ELEVATING
GUIDE WAYS
FINE (MICRO) FEEDS GRADUATED TO .00005" FOR VERTICAL
& CROSS FEEDS
11-3/4" X 23-5/8" KANETSU ELECTROMAGNETIC CHUCK WITH A
PENDANT MOUNTED POTENTIOMETER FOR VARIABLE HOLDING POWER
AND A SELECTOR SWITCH FOR AUTOMATIC DEMAGNETIZATION OF
WORK PIECE
"SONY" TWO-AXIS DIGITAL READOUT DISPLAY
EXTERNAL COOLANT SYSTEM WITH PAPER FILTER
EXTERNAL HYDRAULIC PUMP AND TANK
5 HP 3/60/230-460 VOLT DRIVE SPINDLE MOTOR
MACHINE IS PREWIRED TO ACCEPT 230 OR 460 VOLTS
** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE!! **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
