Used 1997 OKAMOTO ACC-1224-ST | GRINDERS, SURFACE, RECIPROC. TABLE (HOR. SPDL.)
ConditionUsed
1 available
$19,500.00 USD

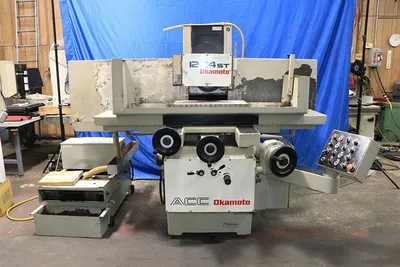

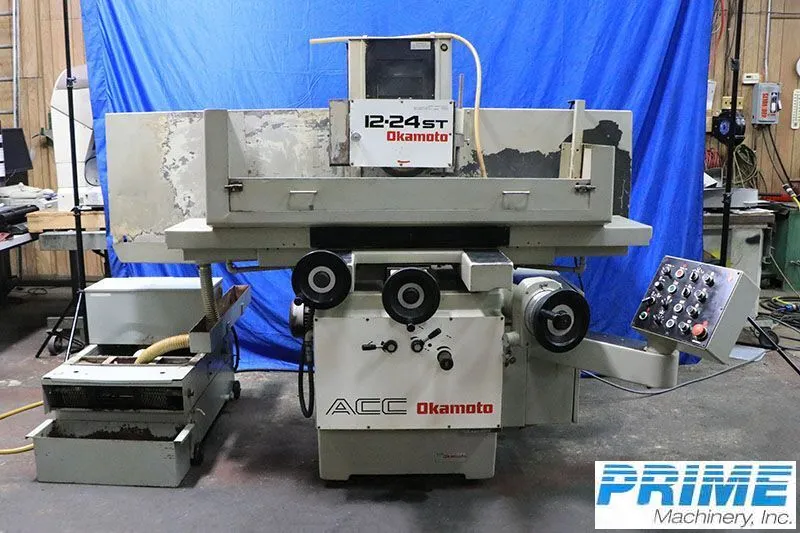

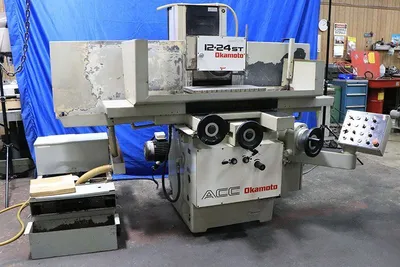

OKAMOTO ACC-1224-ST, a used high-precision hydraulic surface grinder from 1997, features a 12"x24" grinding capacity, auto incremental downfeed, electro-magnetic chuck, and coolant system with filtration. Weighs 3,900 lbs and retains original paint.

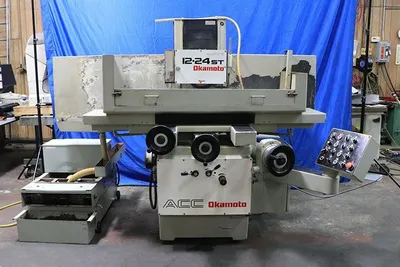

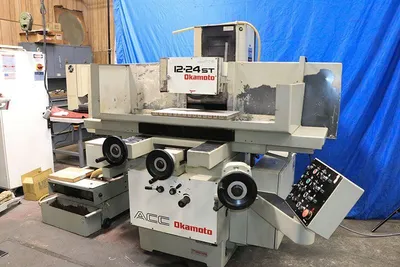

12" X 24" OKAMOTO HIGH-PRECISION
HYDRAULIC SURFACE GRINDER
WITH AUTO INCREMENTAL DOWNFEED

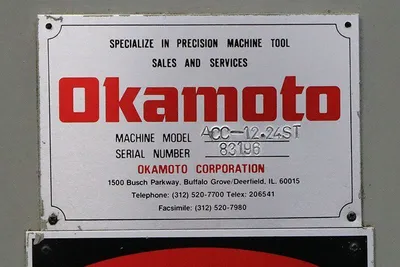

MODEL: ACC-1224-ST S/N: 83196 NEW: 1997
MAXIMUM GRINDING LENGTH:......... 24"
MAXIMUM GRINDING WIDTH:.......... 12"
MAXIMUM HEIGHT UNDER 12" WHEEL:.. 13.7"
MAXIMUM LONGITUDINAL MOVEMENT:... 29.5"
MAXIMUM CROSS MOVEMENT:.......... 13.6"
FEEDS:
LONGITUDINAL HYDRAULIC FEED:..... 1' TO 82' FPM
CROSS FEED, HYD. INTERMITTENT: .. 0.02" -.8"
HYDRAULIC CONTINUOUS:............ 0.4" 40" IPM
HAND FEED/REVOLUTION:............ 0.25"
GRADUATION OF WHEEL:............. 0.001"
VERTICAL MOVEMENT OF WHEELHEAD:
AUTO FEED/TABLE STROKE:........ 0.0001" - 0.0005"
AUTO FEED/SADDLE REVERSAL:..... 0.0001" - 0.0015"
HAND FEED/REVOLUTION:............ 0.05"
GRADUATION OF HANDWHEEL:......... 0.0001"
RAPID FEEDRATE:.................. 19" IPM
GRINDING WHEEL:............... 12" X 1- 1/2" X 5"
SPINDLE MOTOR:................... 5 HP
HYDRAULIC PUMP MOTOR:............ 3 HP
VERTICAL RAPID FEED MOTOR:....... 0.5 HP
DIMENSIONS:................ 103"R-L x 74"F-B x 74"H
APPROX. MACHINE WEIGHT:.......... 3,900 LBS.
EQUIPPED WITH:

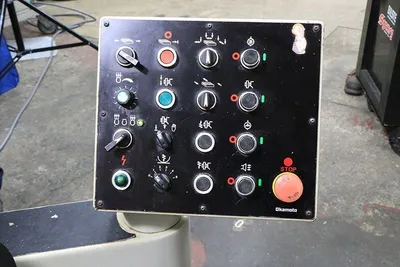

CENTRALIZED OPERATOR CONTROLS
AUTO INCREMENTAL DOWNFEED, SURFACE & PLUNGE MODES
AUTOMATIC SPARKOUT OF WHEEL UP TO 5 PASSES
POWER ELEVATION

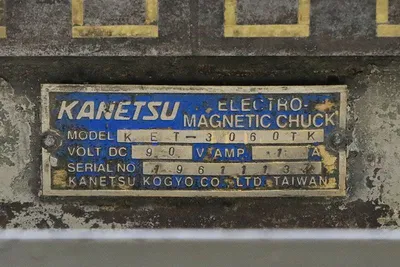

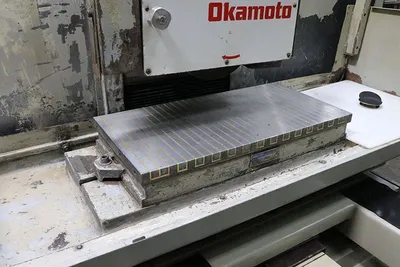

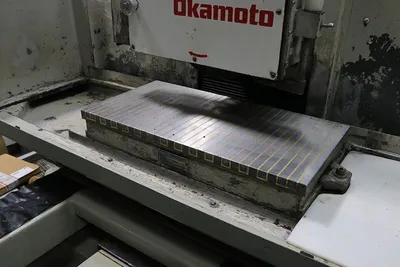

12" X 24" ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER ON THE CONSOLE CONTROL

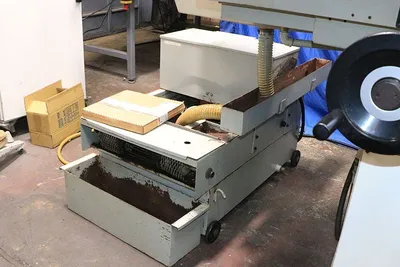

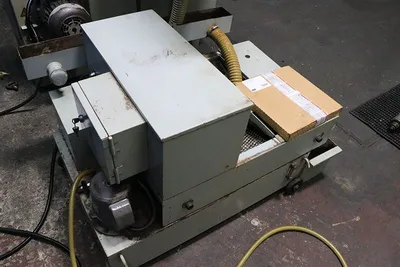

COOLANT SYSTEM WITH PAPER FILTRATION

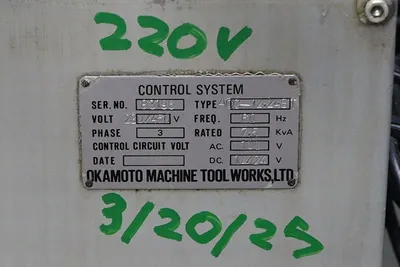

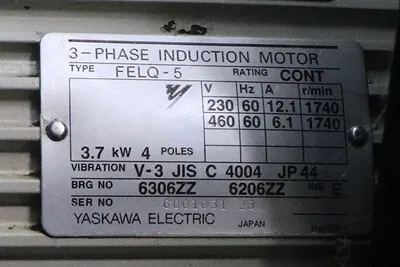

5 H.P. SPINDLE MOTOR/3/60/230-460 VOLTS
** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
