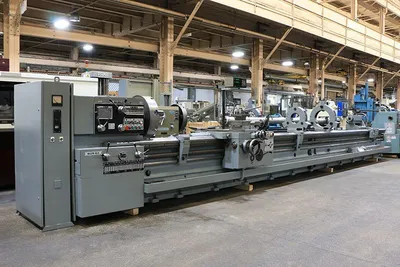

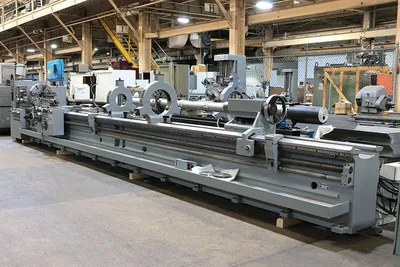

25" x 320" TOS MODEL: SUS-63 ENGINE LATHE - NEW: 1991
ConditionUsed
1 available

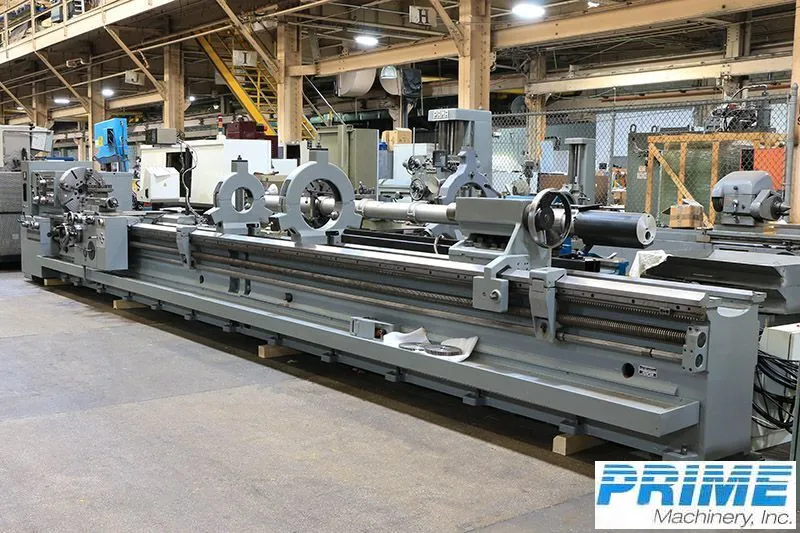

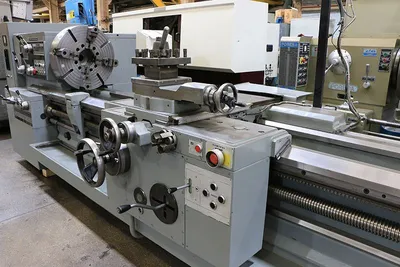

1991 TOS SUS-63 Engine Lathe in excellent used condition. Features a 25.8" swing over bed, 320" center distance, 9-1120 RPM spindle speed, and equipped with inch & metric threading, digital readout, taper turning, and more. 25 HP main motor.
SWING OVER BED WAYS ......................... 25.8"
SWING OVER CROSS SLIDE ...................... 15.4"
DISTANCE BETWEEN CENTERS .................... 320"
HOLE THRU SPINDLE ........................... 3.3"
WIDTH OF BED ................................ 23"
SPINDLE SPEED RANGE (22) .................... 9 - 1120 RPM
LONGITUDINAL FEED RANGE .................... .002" - .12 IPR
LONGITUDINAL FEED W/SPINDLE COUNTER SHAFT .. .004" - .94 IPR
CROSS FEEDS ARE HALF OF LONGITUDINAL SETTING
INCH THREADING RANGE (48) .................. 1/4 - 56 TPI
METRIC THREADING RANGE (40) ................ .5 - 224 mm

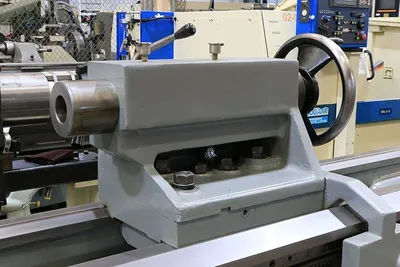

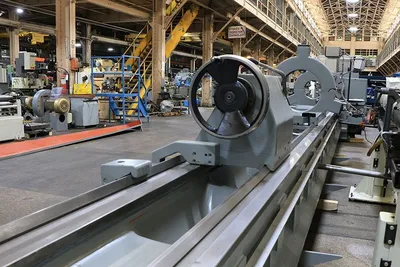

TAILSTOCK SPINDLE TRAVEL ................... 11"
TAILSTOCK SPINDLE TAPER .................... 6 MT
APPROXIMATE WEIGHT ......................... 26,000 LBS
DIMENSIONS ................................. 390" x 74" x 60"

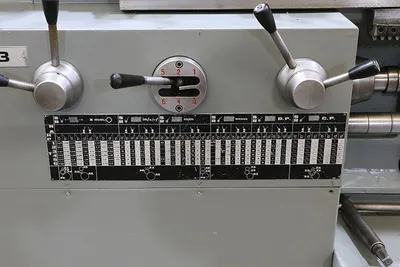

INCH & METRIC THREADING

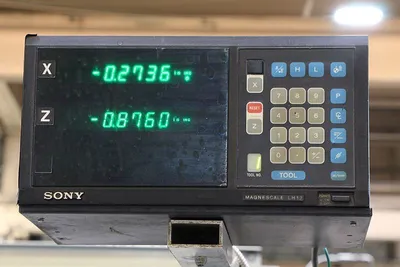

SONY TWO AXIS DIGITAL READOUT

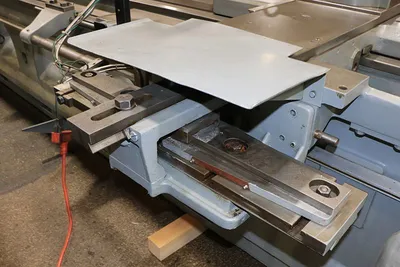

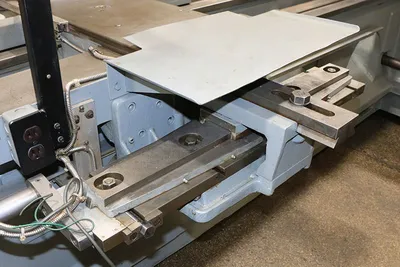

TAPER TURNING ATTACHMENT
RAPID TRAVERSE

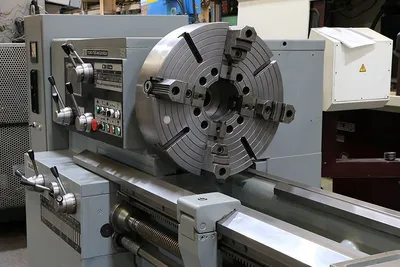

23-1/2" 4-JAW CHUCK

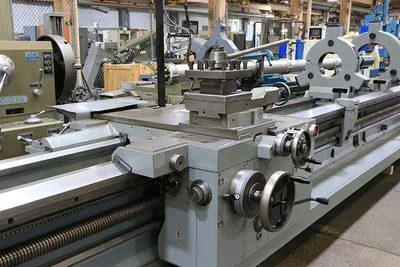

4-WAY TURRET TOOLPOST

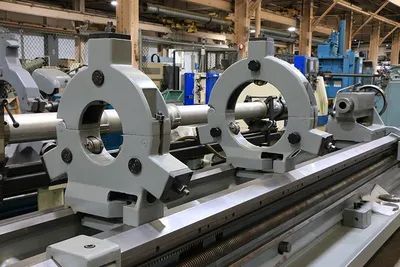

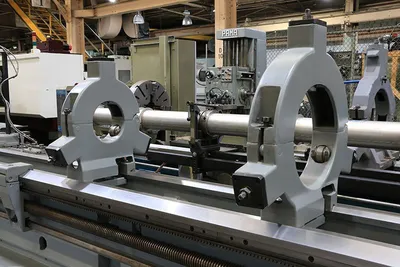

15" ROLLER TYPE STEADY REST
8-1/2" ROLLER TYPE STEADY REST
COOLANT SYSTEM

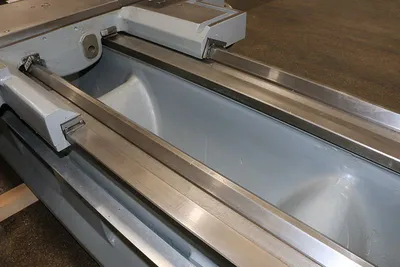

HARDENED & GROUND BED WAYS
25 HORSE POWER MAIN MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
