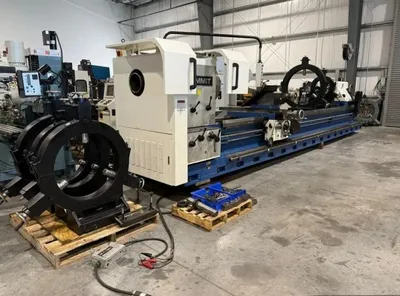

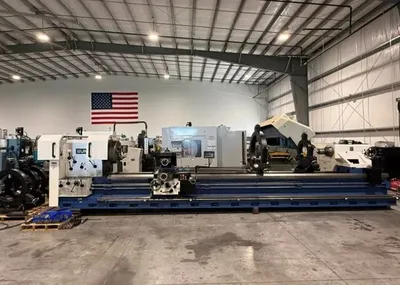

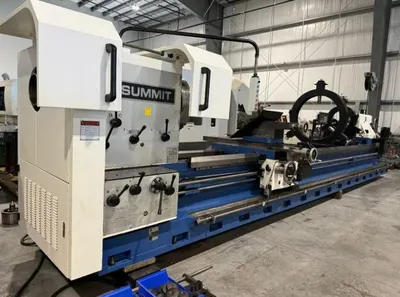

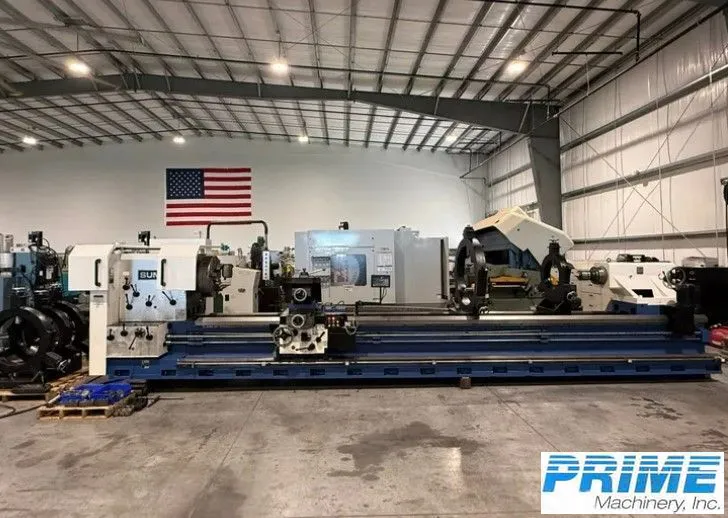

47" X 240” SUMMIT MODEL # 47-9X240 HOLLOW SPINDLE LATHE - NEW: 2013
ConditionUsed
1 available
SUMMIT 47-9X240 oil field & hollow spindle lathe from 2013 in used condition available for sale. Ideal for machining needs, offering robust performance from a trusted manufacturer.
SWING OVER BED- ........................ 47”
SWING OVER CROSS SLIDE- ................ 32.6”
DISTANCE BETWEEN CENTERS- .............. 240”
MAXIMUM WORKPIECE BETWEEN CENTERS- ..... 22,000 LBS. (SUPPORTED)
SPINDLE NOSE- .......................... A2-15

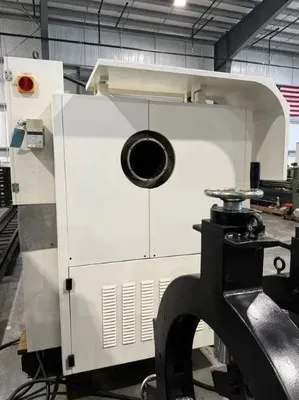

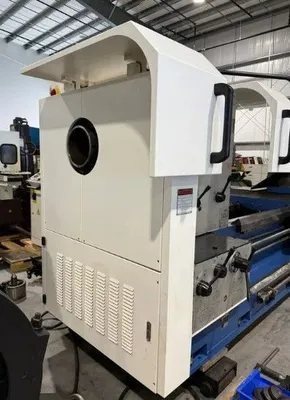

SPINDLE BORE- .......................... 9”
SPINDLE SPEEDS- (12) ................... 6 – 400 R.P.M.
CROSS SLIDE TRAVE- ..................... 30.7”
COMPOUND TRAVEL- ....................... 13.7”
BED WIDTH- ............................. 31.5”
LEADSCREW DIAMETER- .................... 1.97”
LONGITUDINAL FEEDS- (48) ............... 0.13 – 1.92 I.P.R.
CROSS FEEDS- (48) ...................... 0.065 - .96 I.P.R.
INCH THREADS- (48) ..................... 1 – 15 T.P.I.
METRIC THREADS- (48) ................... 2 – 30 MM
TAILSTOCK TAPER- ....................... #7 MORSE TAPER
TAILSTOCK QUILL TRAVEL- ................ 11.8”
TAILSTOCK QUILL DIAMETER- .............. 7.9”
FULL CAST HD BASE DESIGN

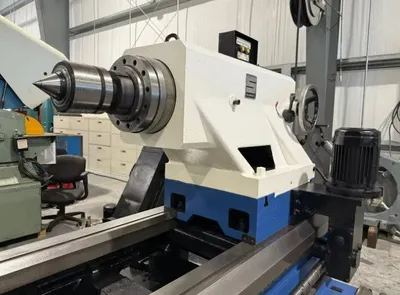

POWER TAILSTOCK
2 AXIS NEWAL DRO DIGITAL READOUT
FULL LENGTH CHIP CONVEYOR
2 WAY POWER RAPIDS
25” BISON “SET-TRU” 3 JAW CHUCK
(5) STEADY RESTES ROLLER TYPE- 35” CAPACITY, (2) 25” CAPACITY, 23” CAPACITY, 17” CAPACITY
HD LIVE CENTER
DEAD CENTER
DORIAN HD TOOL POST
25” 3 JAW CHUCK
LEVELING PADS
40 H.P. MAIN MOTOR
MACHINE LOCATION- F.O.B. SARASOTA, FLORIDA
MACHINE DIMENSIONS- 360” X 87” X 83” H
MACHINE WEIGHT- 43,120 LBS.
