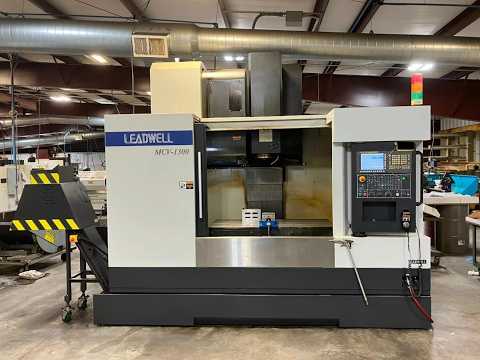

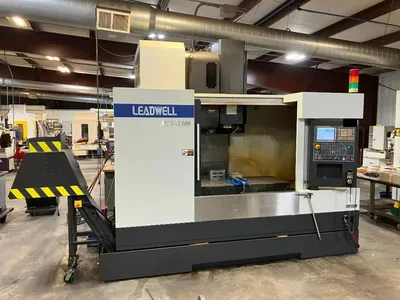

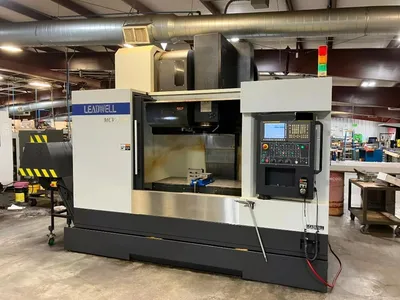

LEADWELL MCV-1300 VERTICAL MACHINING CENTER - NEW: 2016
ConditionUsed
1 available
$59,500.00 USD
LEADWELL MCV-1300, 2016, CNC vertical machining center with 51.1" x 25" x 24" travels, 34 HP, 10,000 RPM geared head, 24 ATC. Fanuc Oi-MF CNC, Manual Guide i, chip conveyor. 3,000 lb table load, box ways, Coolaant Thru spindle, Cat 50 taper.
X-AXIS TRAVEL ........................... 51.1"
Y-AXIS TRAVEL ........................... 25"
Z-AXIS TRAVEL ........................... 24"
SPINDLE NOSE TO TABLE TOP ............... 5.9" TO 29.9"
DISTANCE FROM SPINDLE CENTER TO COLUMN .. 25"
TABLE SIZE .............................. 56" X 24"
MAX TABLE LOAD .......................... 3,000 LBS
RAPID TRAVERSE RATES (X & Y/ Z) ......... 787 IPM
SPINDLE SPEEDS .......................... TO 10,000 RPM
SPINDLE MOTOR ........................... 34 HP
SPINDLE TAPER ........................... CAT 50
TOOL STORAGE CAPACITY ................... 24 TOOL
APPROX MCHINE DIMENSIONS ......... 140" X 141" X 113" TALL
APPROX MACHINE WEIGHT .................. 18,500 LBS
EQUIPPED WITH:

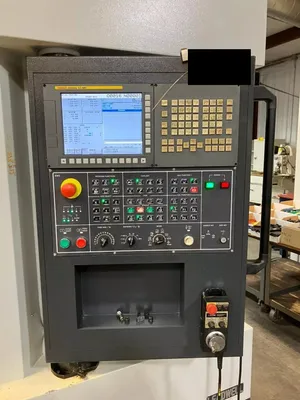

* FANUC MODEL: 0iMF CNC CONTROL w/MANUAL GUIDE i
* REMOTE JOG HANDLE (MPG)
* BOX WAYS ON ALL AXES
* TWO SPEED GEARBOX, 40 TO 10,000 RPM
* COOLANT TANK AND CHIP PAN, FLOOD COOLANT
* THROUGH SPINDLE COOLANT
* HIGH PREESURE COOLANT UNIT

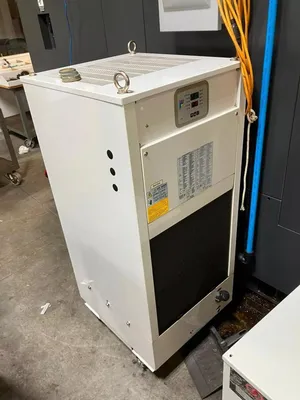

* SPINDLE OIL CHILLER
* CHIP CONVEYOR
* 24 TOOL CAPACITY SIDEMOUNT CHANGER
* 34 HORSE POWER SPINDLE MOTOR
* 4TH AXIS PREP
LEADWELL MCV-1300, 2016, CNC vertical machining center with 51.1" x 25" x 24" travels, 34 HP, 10,000 RPM geared head, 24 ATC. Fanuc Oi-MF CNC, Manual Guide i, chip conveyor. 3,000 lb table load, box ways, Coolaant Thru spindle, Cat 50 taper.
X-AXIS TRAVEL ........................... 51.1"
Y-AXIS TRAVEL ........................... 25"
Z-AXIS TRAVEL ........................... 24"
SPINDLE NOSE TO TABLE TOP ............... 5.9" TO 29.9"
DISTANCE FROM SPINDLE CENTER TO COLUMN .. 25"
TABLE SIZE .............................. 56" X 24"
MAX TABLE LOAD .......................... 3,000 LBS
RAPID TRAVERSE RATES (X & Y/ Z) ......... 787 IPM
SPINDLE SPEEDS .......................... TO 10,000 RPM
SPINDLE MOTOR ........................... 34 HP
SPINDLE TAPER ........................... CAT 50
TOOL STORAGE CAPACITY ................... 24 TOOL
APPROX MCHINE DIMENSIONS ......... 140" X 141" X 113" TALL
APPROX MACHINE WEIGHT .................. 18,500 LBS
EQUIPPED WITH:
* FANUC MODEL: 0iMF CNC CONTROL w/MANUAL GUIDE i
* REMOTE JOG HANDLE (MPG)
* BOX WAYS ON ALL AXES
* TWO SPEED GEARBOX, 40 TO 10,000 RPM
* COOLANT TANK AND CHIP PAN, FLOOD COOLANT
* THROUGH SPINDLE COOLANT
* HIGH PREESURE COOLANT UNIT
* SPINDLE OIL CHILLER
* CHIP CONVEYOR
* 24 TOOL CAPACITY SIDEMOUNT CHANGER
* 34 HORSE POWER SPINDLE MOTOR
* 4TH AXIS PREP
