Mazak Integrex 300SY
ConditionUsed
1 available
2000 MAZAK Integrex 300SY CNC lathe with Y-axis, C-axis, subspindle, and 3" bar capacity. Features a 10" hydraulic chuck, chip conveyor, and HSK 63 tooling. Maximum swing 24", 40" centers, Equipped with Mazatrol Fusion 640MT.

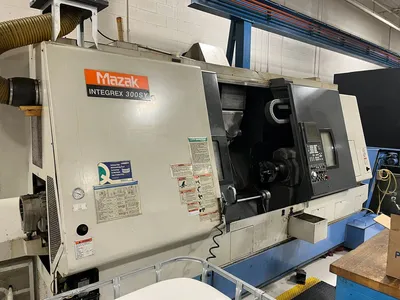

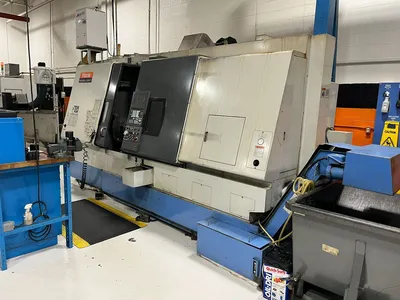

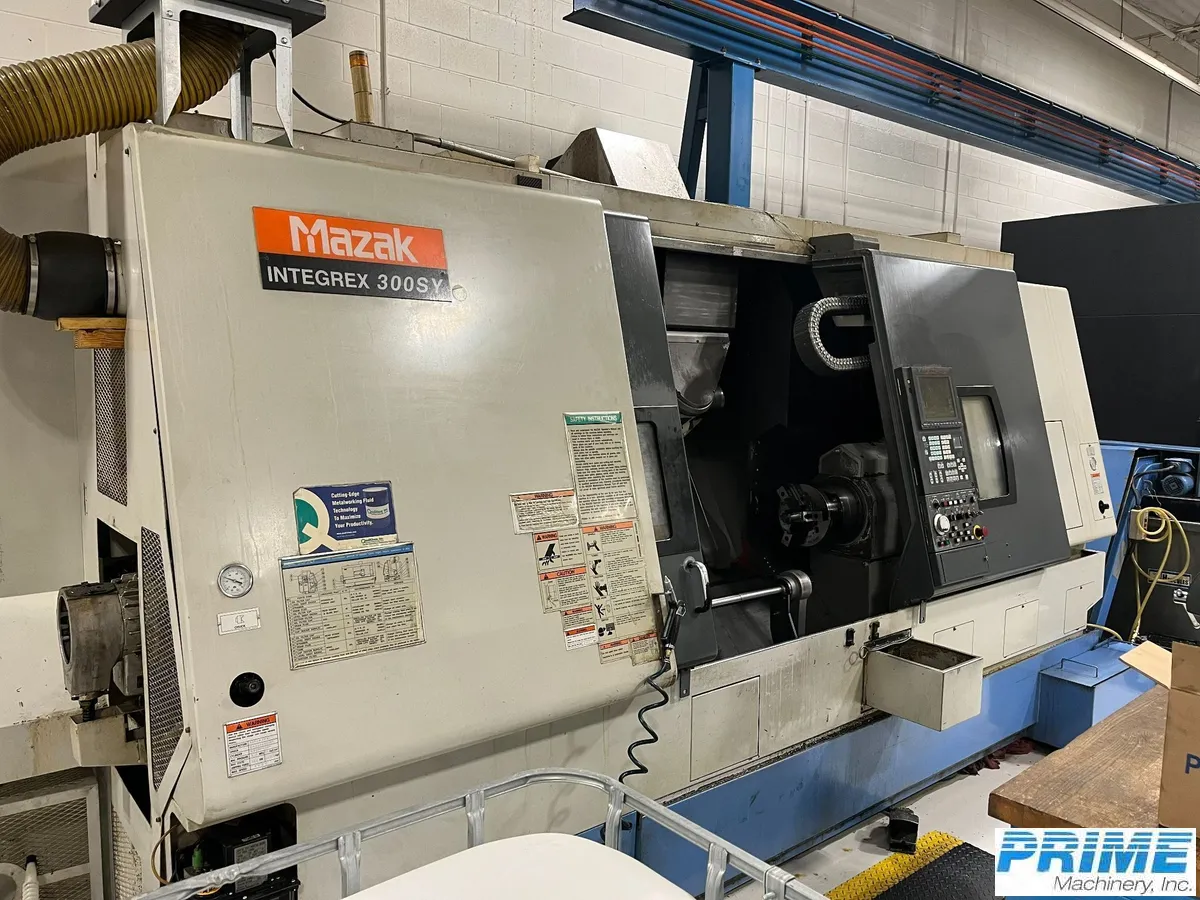

2000 Mazak Integrex 300SY
with C Axis/Milling, Y Axis, Subspindle, 3" Bar Capacity, 40" Centers,
Chip Conveyor, Toolsetter and All Available HSK 63 Tooling
Maximum swing over the Slant Bed 24"
Maximum Swing Over the Carriage 17.7"
Distance between centers 40.1"
X-axis travel 22.83"
Y-axis travel 9.06" (+/- 4.19")
Z-axis travel 43.2"
B-axis tilt movement 225 Degrees at .001 Increments
C-axis rotation .001 Degree
Spindle nose / spindle bore / bar capacity A2-8 / 3.46" / 3"
Spindle speed 35 to 3,500 RPM
Spindle motor 35 HP
Subspindle nose / bore / bar capacity A2-8" / 2.99" / 2.5"
Subspindle speed 35 to 3,500 RPM
Milling spindle speed 15 to 15,000 RPM
Milling spindle motor 20 HP

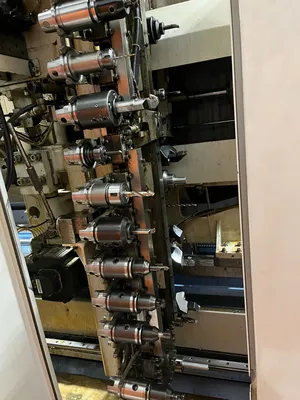

Tool magazine capacity 40 Station Tool Changer
Rapid traverse rates (x, y, z) 1181 IPM / 590 IPM / 1181 IPM
Machine dimensions lxwxh 229"x 96" x110"
Machine weight 27,600 lbs

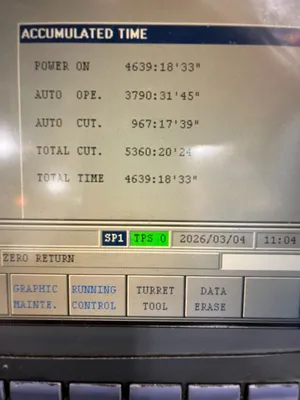

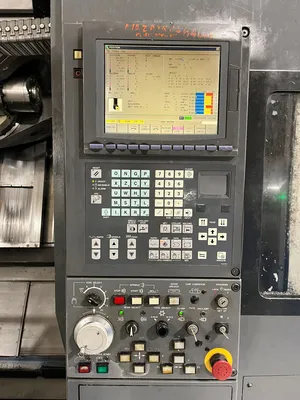

Mazatrol Fusion 640MT

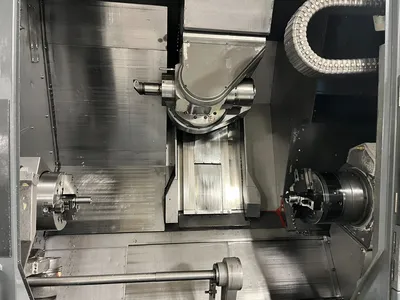

B-Axis Pendulum Style Turret Head
Y-Axis Capability
Full C-Axis Spindle Rotation
Milling / Drilling Capability
Subspindle
Chip Conveyor

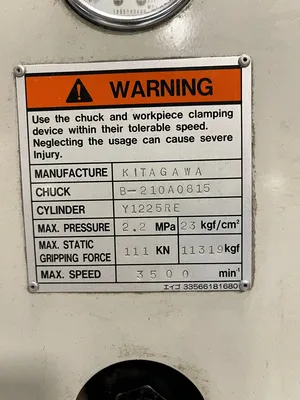

10" 3 Jaw Hydraulic Chuck on Main Spindle
10" 3 Jaw Hydraulic Chuck on Sub Spindle
Automatic Tool Eye
Chip conveyor

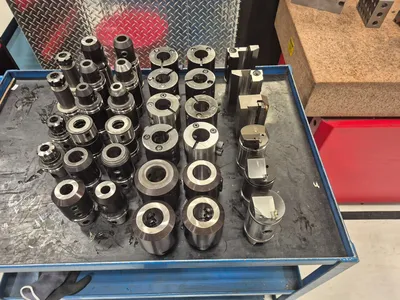

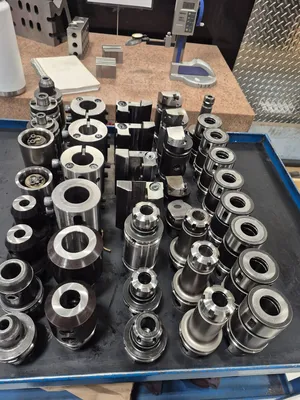

All Available HSK 63 Tooling is Included
