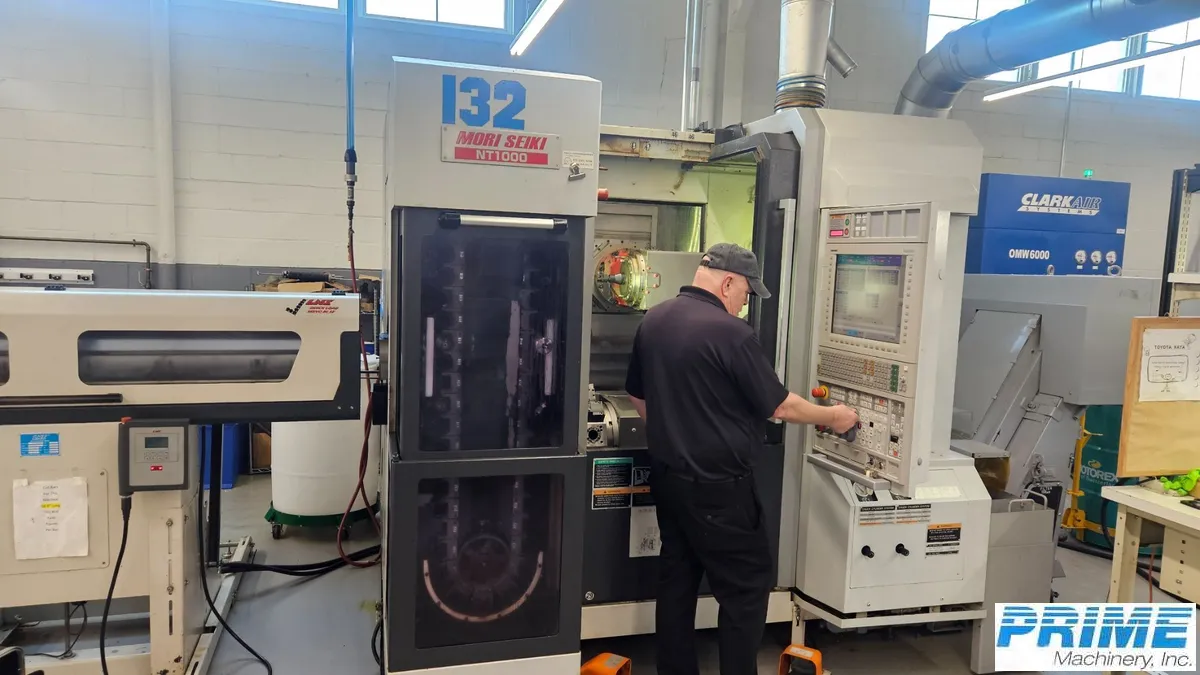

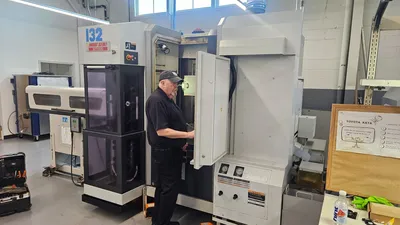

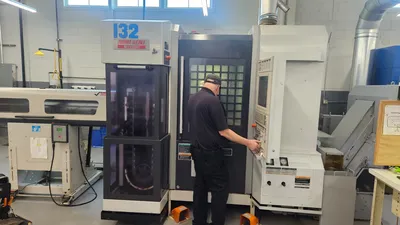

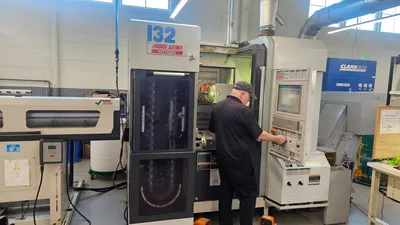

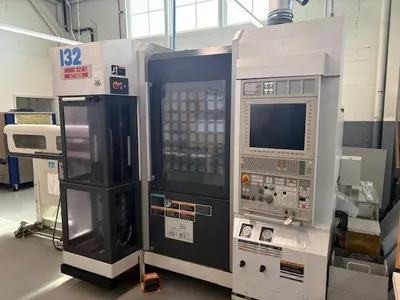

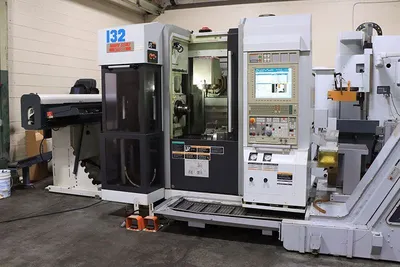

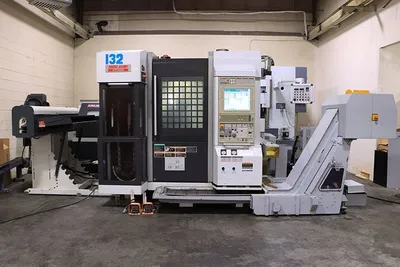

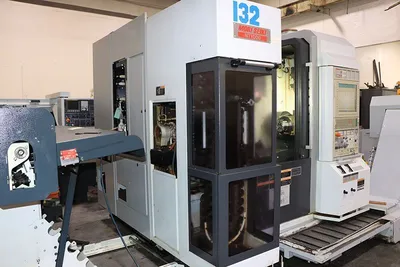

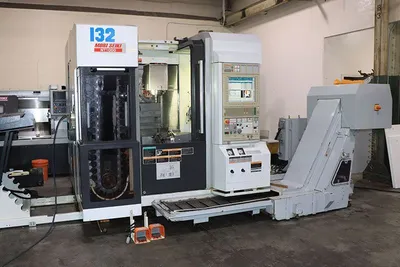

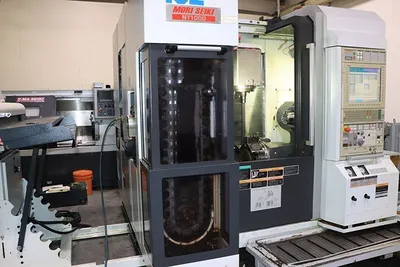

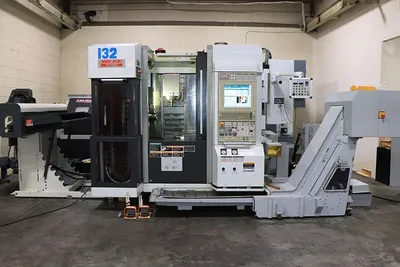

Mori Seiki NT-1000 SZ CNC Mill/Turn Center with Sub Spindle

2010 Mori Seiki NT-1000/SZ CNC Integrated Milling & Turning Center

CAPACITY:
Max Turning Diameter for Tool Spindle... 14.5"
Max Turning Diameter for Turret 2 ... 10.6"
Maximum Turning Length ………………………… 16.6″

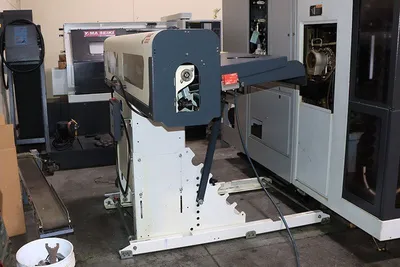

Bar Work Capacity ……………………………………. 2″

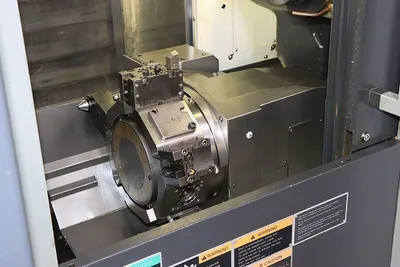

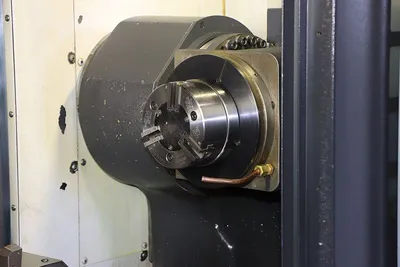

SPINDLE 1, MAIN SPINDLE:
Max. Spindle Speed …………………………………… 6000 RPM
Spindle Nose …………………………………………….. JIS A2-5
Spindle Hole Diameter …………………………….. 2.4″
Bar Capacity …………………………………………….. 2″
Min. Spindle Indexing Increment ……………. 0.0001 Degree
Spindle Motor …………………………………………… 15 HP
C-Axis 360 Degree

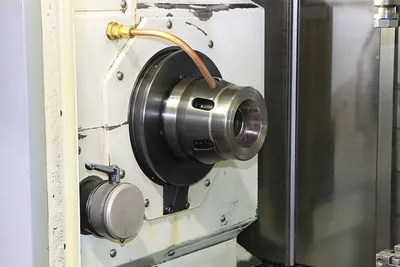

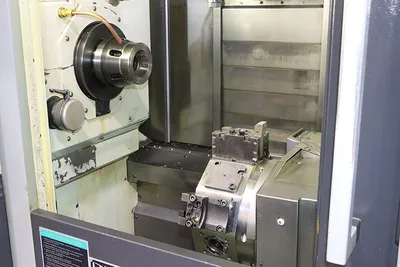

SPINDLE 2, SUB-SPINDLE:
Spindle Speed ………………………………………….. 6000 RPM
Bar Capacity ……………………………………………. 1.5″
Spindle Motor ………………………………………….. 10 HP
X-2-Axis 6.1"
Z2 Axis 24"

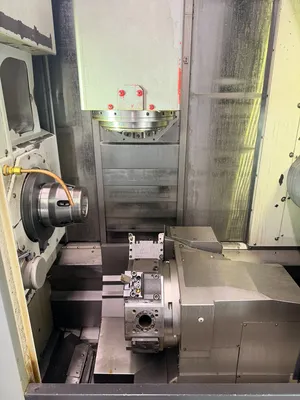

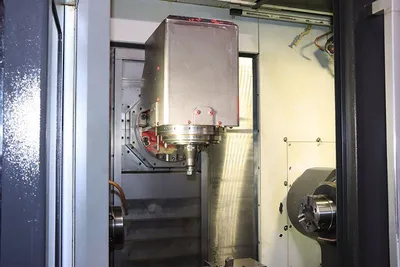

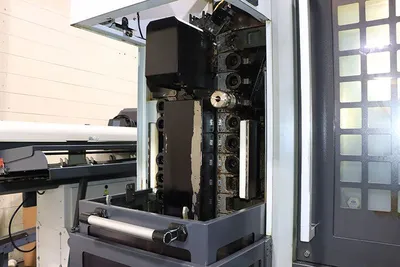

TOOL SPINDLE
Spindle Speed …………………………………………. 12,000 RPM
Spindle Taper ………………………………………….. CAPTO C5

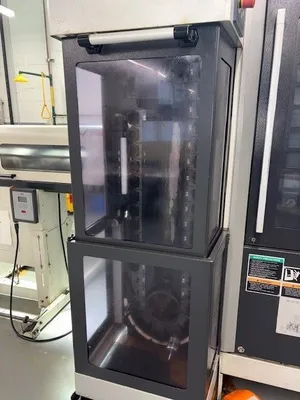

Tool Capacity (ATC) ……………………………….. 38 ATC
Tool Change Time ………………………………….. 1.2 Seconds
B-Axis Indexing Increment ……………………. 0.0001 Degrees
Spindle Motor......................12 HP
X1-Axis 15"
Y-Axis 8.3"
Z1-Axis 18.1"
B-Axis +- 120 Degrees

Turret 2 (lower Turret)
Number of tool Stations ... 10

DIMENSIONS & WEIGHTS:

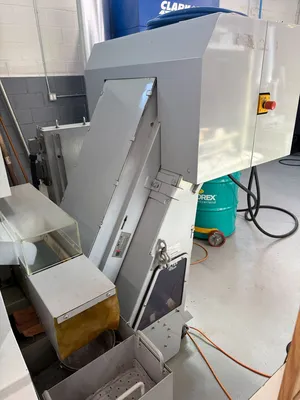

Floor Space ………………………………………….. 95.5″ L (153" W Chip Conv) x 106.5″ W
Machine Height …………………………………… 94″
Machine Weight …………………………………… 19,000 Lbs.
