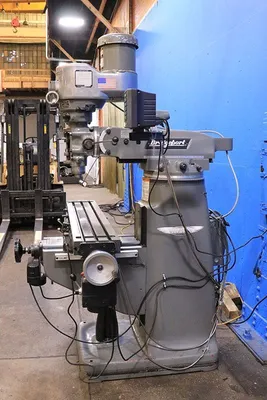

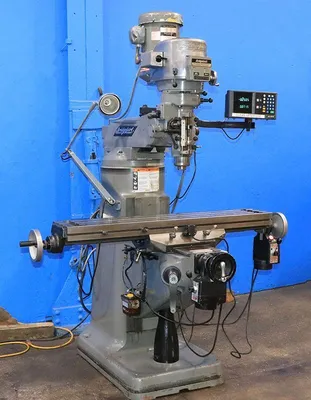

BRIDGEPORT MODEL: SERIES I VERTICAL MILLING MACHINE - NEW: 2002
ConditionUsed
1 available
$12,500.00 USD

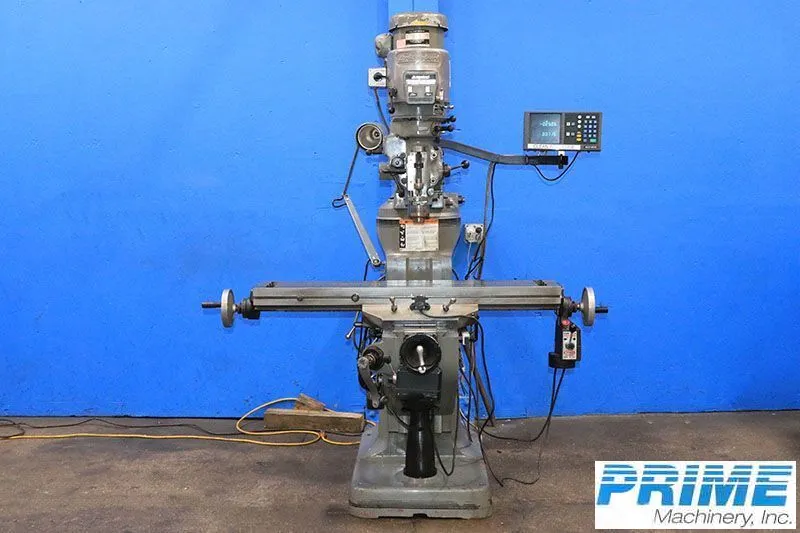

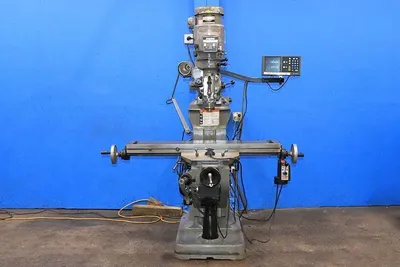

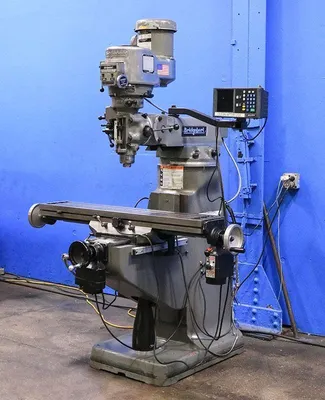

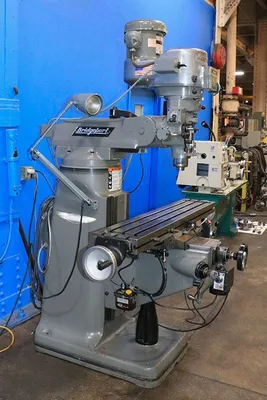

Bridgeport Series I Vertical Milling Machine, 2001. Features a 9" x 48" table, 36" longitudinal travel, and 60-4,200 RPM variable speed. Equipped with AcuRite digital readout, power feeds, and Bijur lubrication. Located in NJ warehouse.

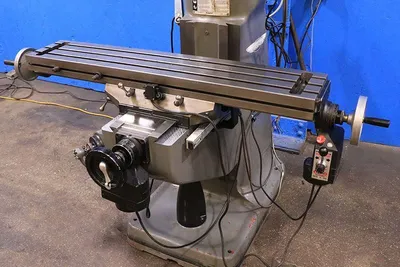

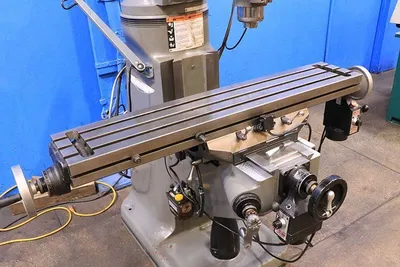

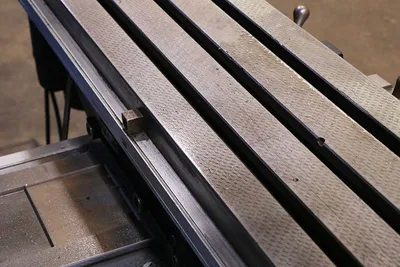

TABLE SIZE .............................. 9" X 48"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 36"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT & RIGHT ................. 90 DEGREES
HEAD TILT, FRONT & REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... R-8
MAX COLLET CAPACITY ..................... 3/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS

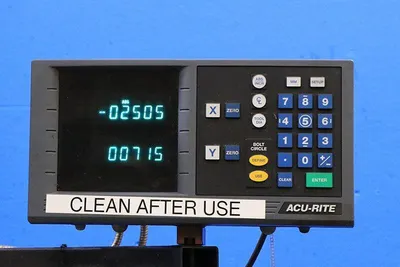

ACURITE TWO AXIS DIGITAL READOUT

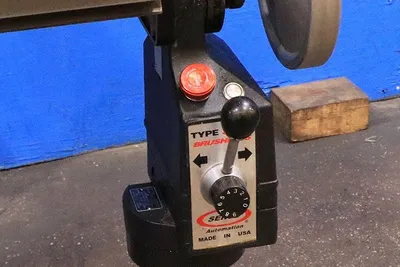

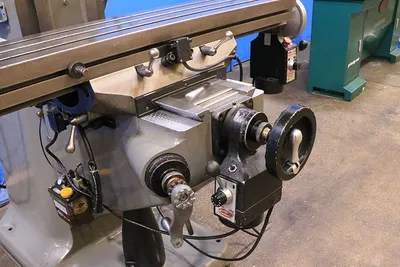

SERVO MODEL: TYPE 350X POWER FEED FOR LONGITUDINAL TRAVEL
SERVO MODEL:TYPE 150 POWER FEED FOR CROSS TRAVEL

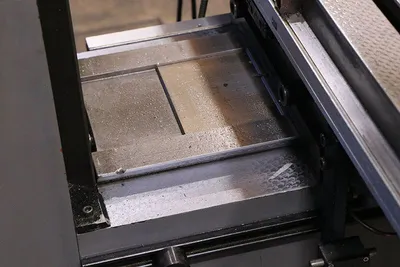

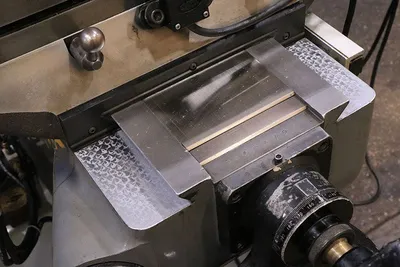

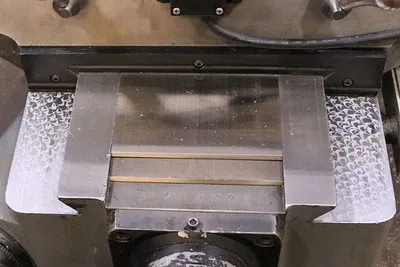

CHROME WAYS
BIJUR SPRAY MIST COOLANT SYSTEM

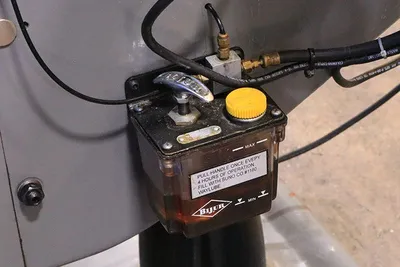

BIJUR ONE SHOT LUBRICATION SYSTEM

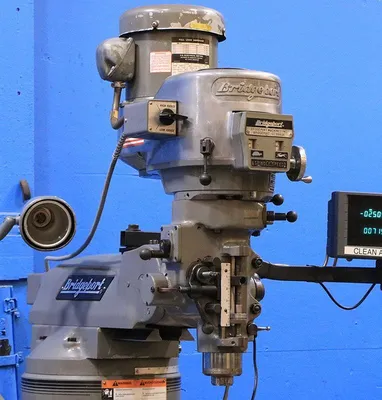

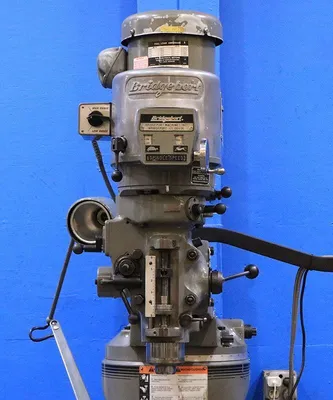

BRIDGEPORT SERIES I MILLING HEAD S/N: 314709
2 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
