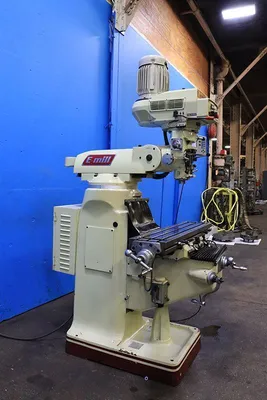

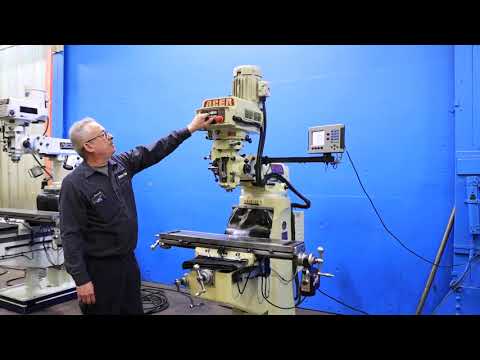

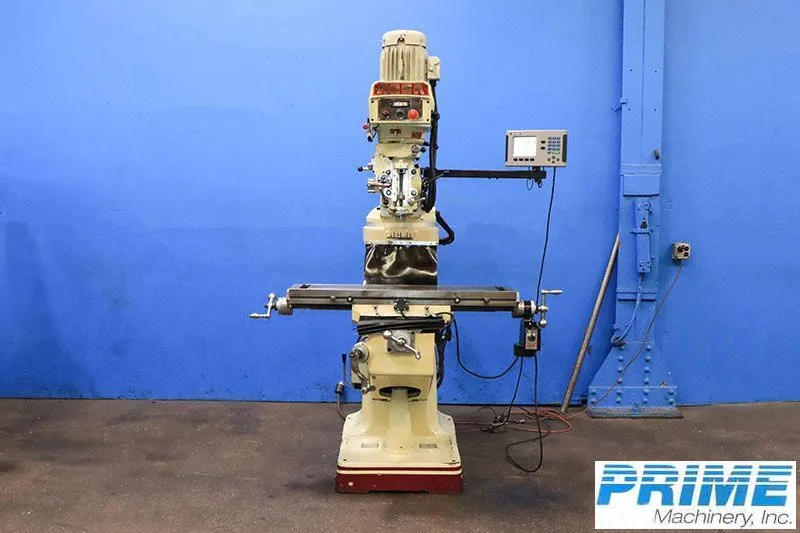

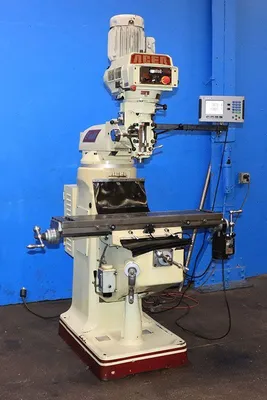

ACER MODEL: EVS-3VS VERTICAL MILLING MACHINE - MFG: 2003
$7,500.00 USD
ConditionUsed
1 available

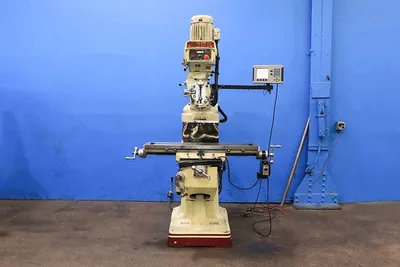

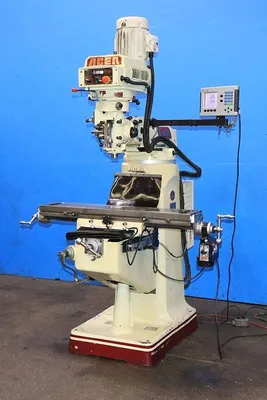

ACER EVS-3VS Vertical Milling Machine, 2003. Features a 9" x 42" table, 3-axis digital readout, servo power feed, AC spindle drive, and 3 HP motor. Perfect for precise operations. Located in NJ, inspect under power. 79"x74"x90", 2,400 lbs.

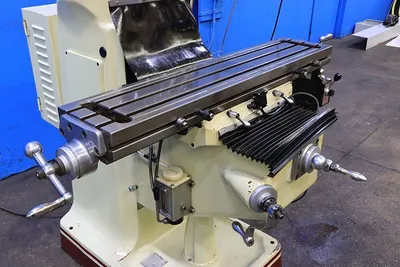

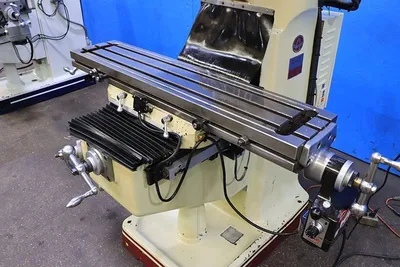

TABLE WORKING SURFACE ......................... 9" X 42"
NUMBER OF T-SLOTS (WIDTH) ..................... 3 (5/8")
RANGE: LONGITUDINAL, MANUAL (X) ............... 28"
CROSS (Y) ........................ 12"
VERTICAL, KNEE ................... 16"
QUILL (Z) ........................ 5"
RAM TRAVEL .................................... 20"
HEAD TILT, LEFT AND RIGHT ..................... 90 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY ............ 45 DEGREES
TURRET ROTATION ............................... 360 DEGREES
(3) POWER QUILL FEEDS ............ .0015, .003, .006 I.P.R.
QUILL DIAMETER ................................ 3-3/8"
INFINITELY VARIABLE SPINDLE SPEEDS ............ 60 - 4,500 RPM
SPINDLE TAPER ................................. R-8
MAXIMUM COLLET CAPACITY ....................... 3/4"
APPRROXIMATE DIMENSIONS .................. 79" x 74" x 90"H
APPROXIMATE WEIGHT ............................ 2,400 LBS.

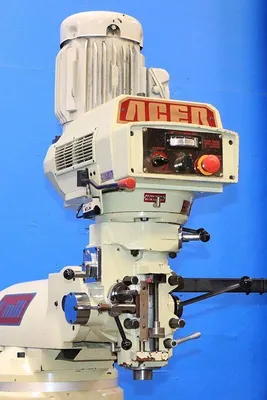

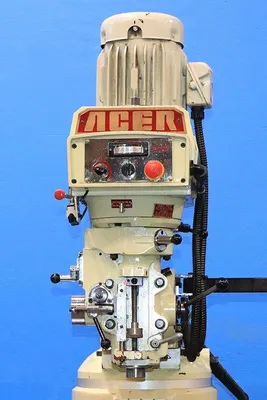

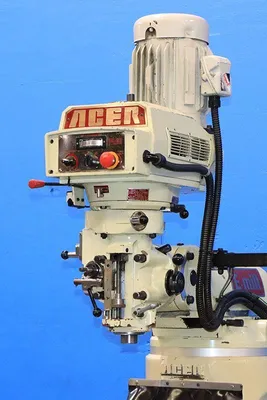

AC FREQUENCY INVERTER SPINDLE DRIVE

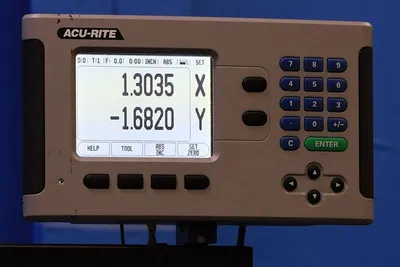

ACU-RITE TWO-AXIS DIGITAL READOUT

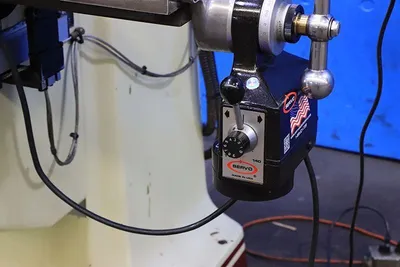

SERVO POWER FEED FOR LONGITUDINAL TABLE TRAVEL
HARDENED AND GROUND DOVETAIL WAYS FOR X & Y AXES
MEEHANITE CASTING

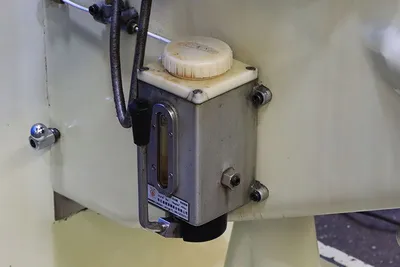

ONE-SHOT LUBRICATION SYSTEM
3 HORSE POWER SPINDLE DRIVE MOTOR

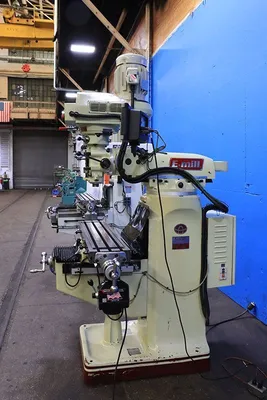

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
