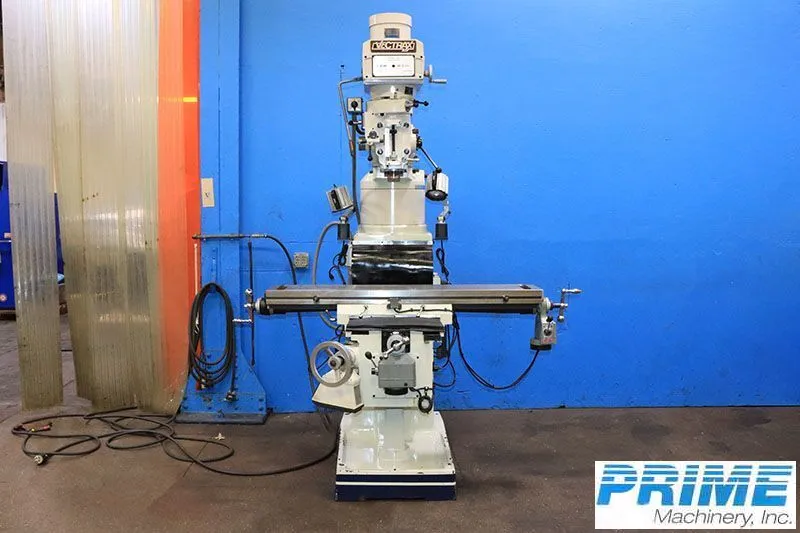

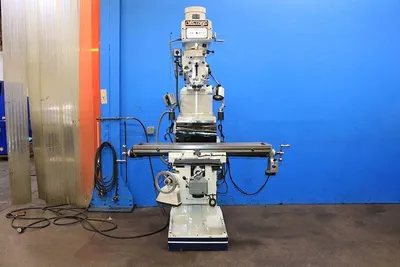

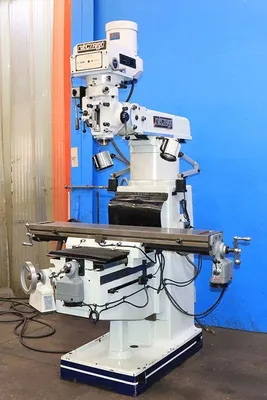

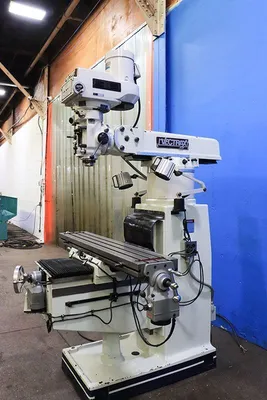

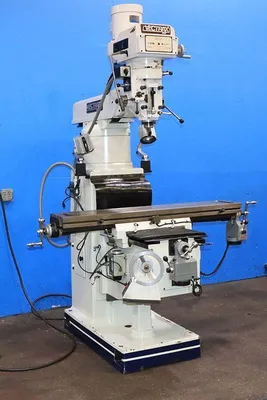

VECRAX MODEL: GS-20V VERTICAL MILLING MACHINE
ConditionUsed
1 available
$7,500.00 USD
VECRAX GS-20V Vertical Milling Machine available. Features include 10"x54" table, 32" longitudinal and 17.5" cross travel, 0-90° head tilt, and 70-3,600 RPM range. Equipped with ball screws, servo power feeds, lights, and lubrication system.

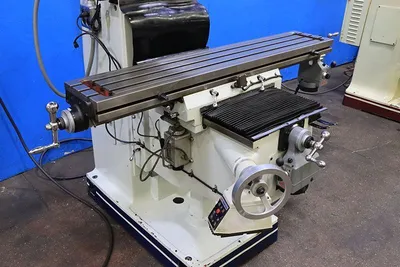

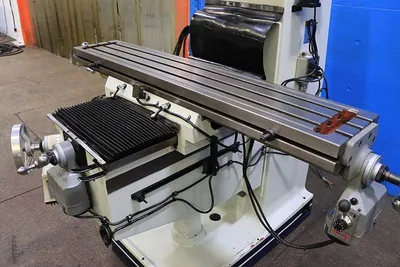

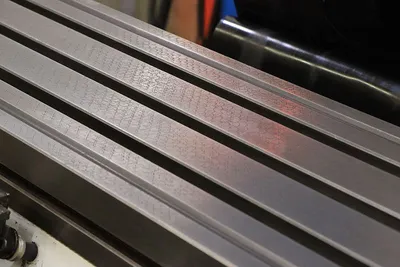

TABLE SIZE .............................. 10" X 54"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 32"

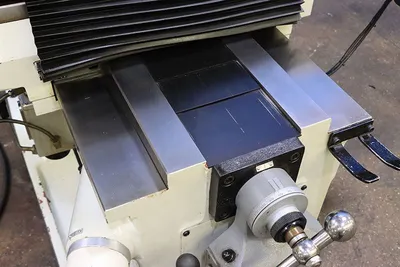

CROSS TRAVEL ............................ 17.5"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 18"

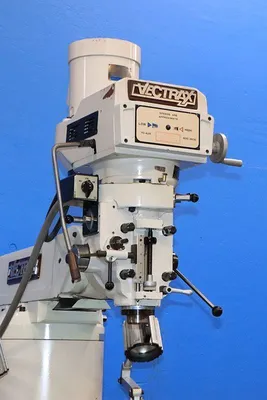

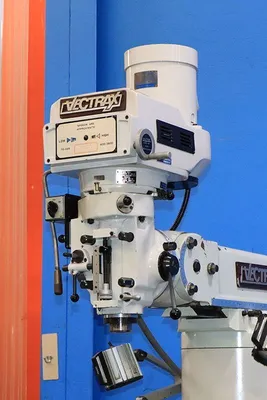

HEAD TILT, LEFT & RIGHT ................. 90 DEGREES
HEAD TILT, FRONT & REAR ................. 15 DEGREES

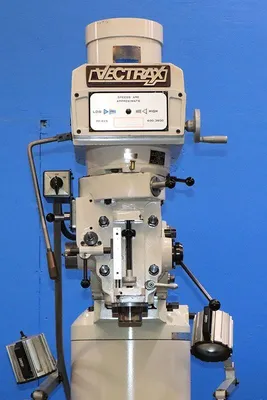

INFINITELY VARIABLE SPEED RANGE ......... 70 - 3,600 RPM
SPINDLE TAPER ........................... R-8
MAX COLLET CAPACITY ..................... 3/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 5,000 LBS
BALL SCREWS FOR X & Y AXES

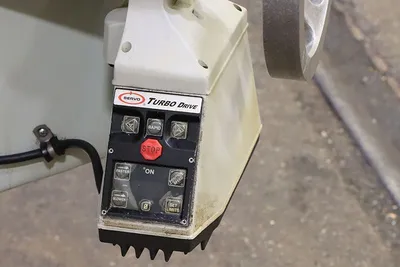

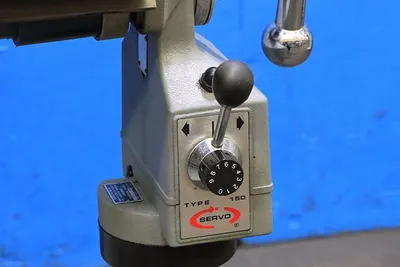

SERVO POWER FEED FOR LONGITUDINAL TRAVEL
SERVO POWER FEED FOR CROSS TRAVEL
SERVO POWER FEED FOR VERTICAL KNEE TRAVEL
RISER BLOCK
TWO HALOGEN WORK LIGHTS

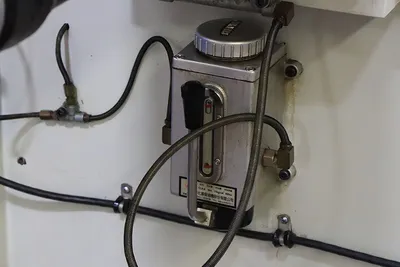

ONE SHOT LUBRICATION SYSTEM
5 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
