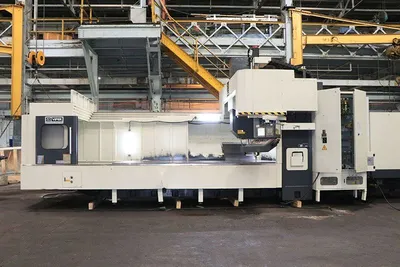

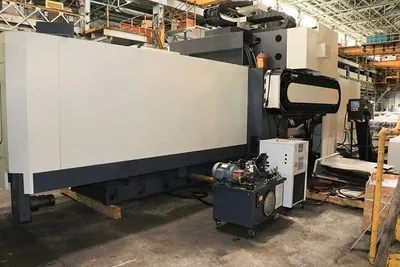

MIGHTY MODEL: PRO 4216AG DOUBLE-COLUMN MACHINING CENTER - NEW: 2017
ConditionUsed
1 available

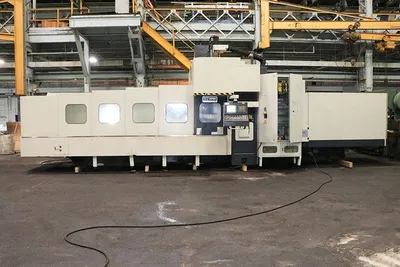

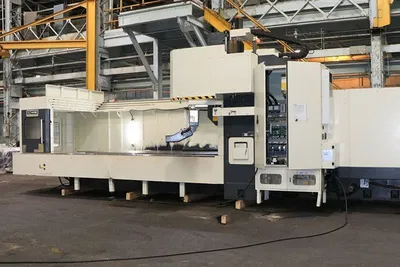

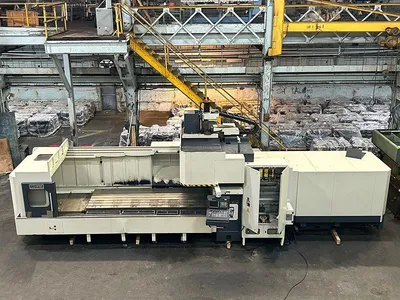

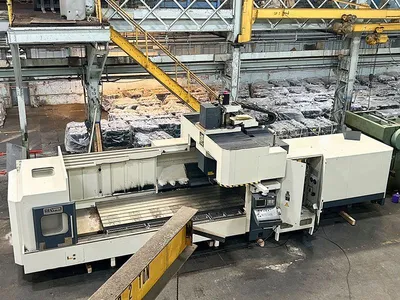

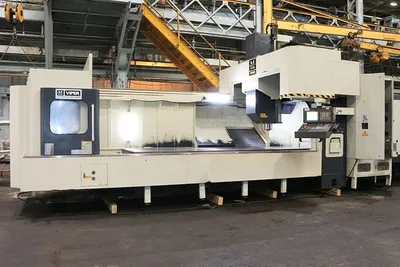

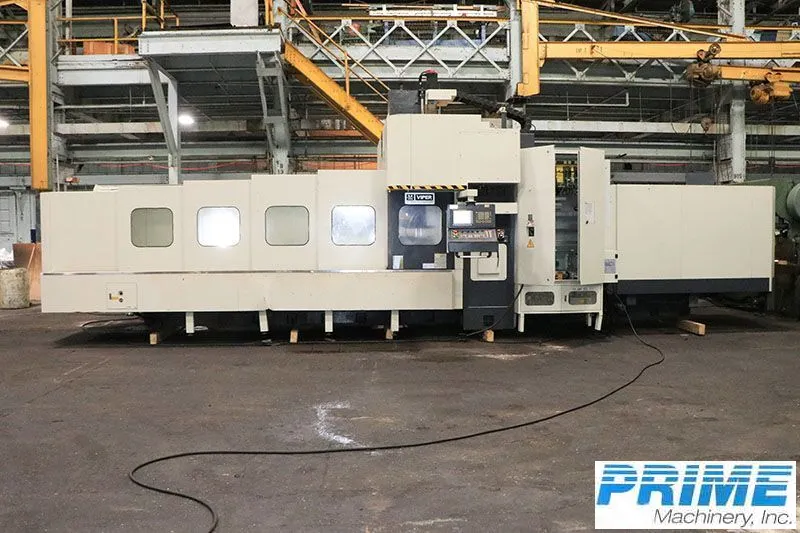

Explore precision with the used MIGHTY PRO 4216AG Double-Column Machining Center. Built in 2016, it offers extensive x-axis travel of 165", a 40-tool automatic changer, and a robust Fanuc control system, all powered by a 30 HP spindle motor.
TRAVELS
LONGITUDINAL TRAVEL (X) AXIS ............ 165" / 4200mm
CROSS TRAVEL (Y) AXIS ................... 63" / 1600mm
VERTICAL TRAVEL (Z) AXIS ............... 31.5" / 800mm
TABLE TO SPINDLE MIN TO MAX ............. 5.9" / 37.4"
DISTANCE BETWEEN COLUMNS ................ 66.92" / 1700mm

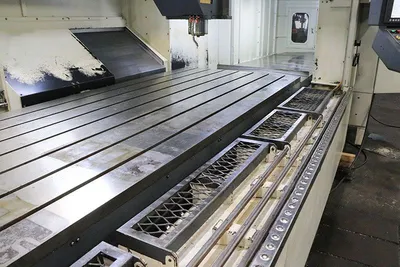

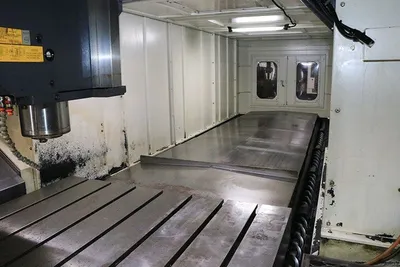

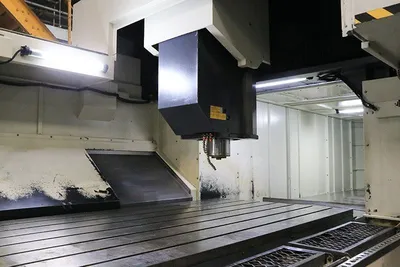

TABLE WORKING SURFACE ................... 86.6" X 43.3"
MAXIMUM WORKLOAD ON TABLE ............... 26,450 LBS

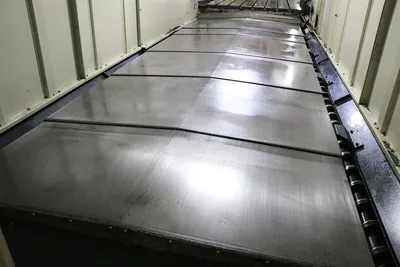

TABLE SURFACE ........................... GROUND / T-SLOTTED
SPINDLE TAPER ........................... CT 50
SPINDLE SPEED TWO SPEED GERED HEAD ...... 0 - 6,000 RPM
TOOL STORAGE CAPACITY.................... 40 TOOLS
MAXIMUM TOOL LENGTH ..................... 15.74" / 400mm
MAXIMUM TOOL WEIGHT ..................... 44 LBS / 20 KG
MAX TOOL SIZE (NEXT SLOT EMPTY) ......... 9.64" / 245mm
TOOL SIZE (FULL TOOLS)................... 4.92 / 125mm
MACHINE WEIGHT (BASE MACHINE ONLY) ...... 62,500 LBS

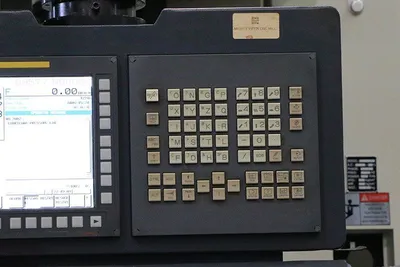

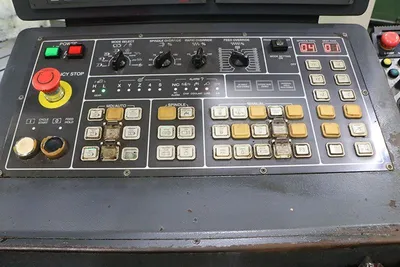

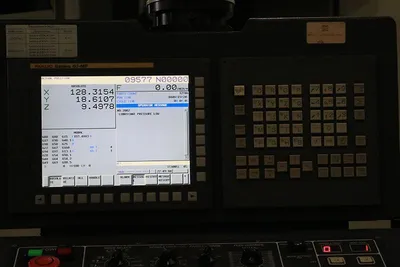

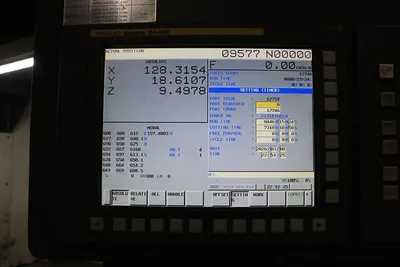

FANUC MODEL: 0I-MF FANUC CONTROL

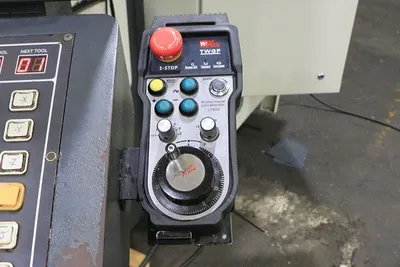

WIRELESS MANUAL PULSE GENERATOR (MPG)

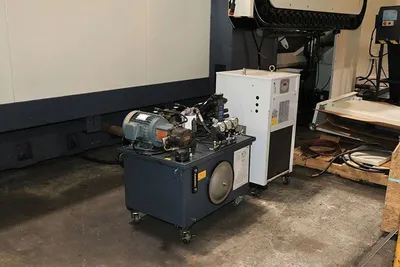

HYDRAULIC COUNTERBALANCE FOR HEADSTOCK
40 TOOL AUTOMATIC TOOL CHANGER
SPINDLE CHILLER
COOLANT SYSTEM

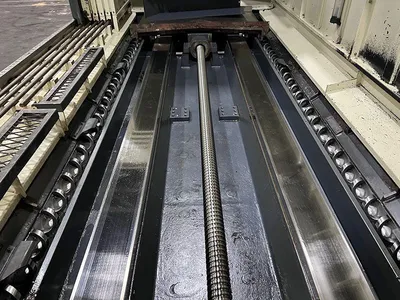

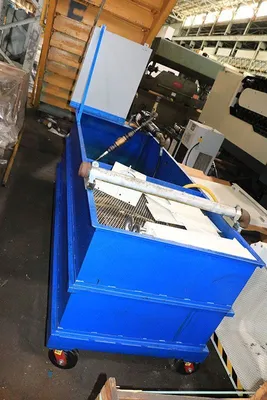

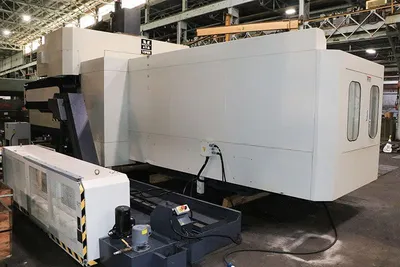

DUAL CHIP AUGERS TO SINGLE CHIP CONVEYOR

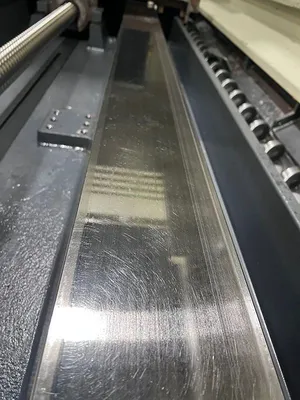

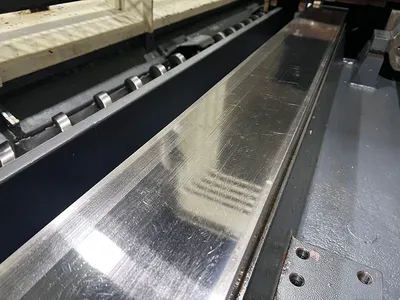

HARDENED & GROUND BOX WAYS
30 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
