20"/27" x 100" FORTUNE MODEL: S20100 GAP BED LATHE - NEW: 1993
$14,950.00 USD
ConditionUsed
1 available
20"/27" x 100" Fortune Lathe, Model S20100G, 1993. Swing: 27" in gap, 20" over bed. 100" between centers. Equipped with DRO, 10HP motor, 3-jaw chuck, steady rest, and more. Ideal for precision threading. Approx. weight: 6,000 lbs. Located in NJ.

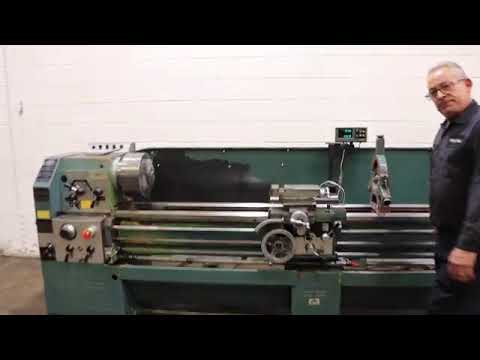

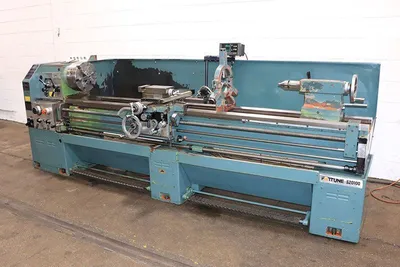

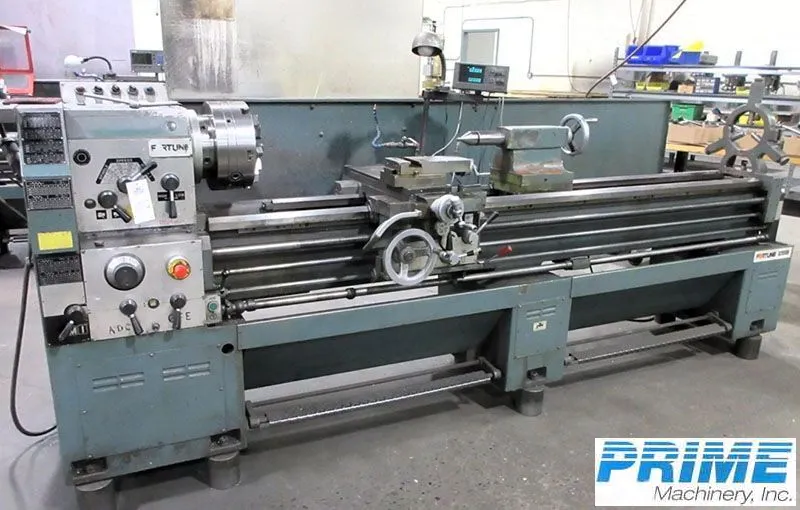

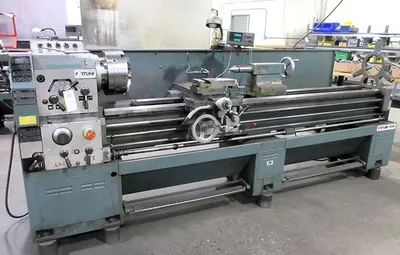

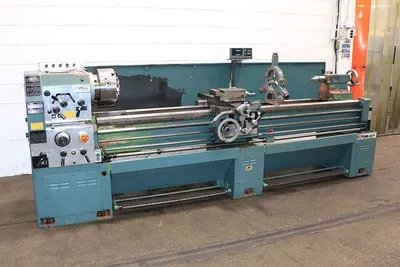

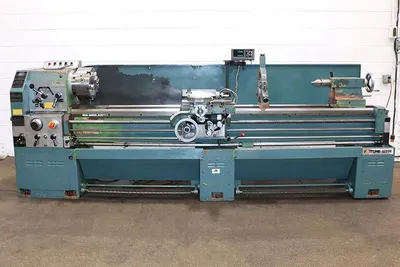

20"/27" x 100" FORTUNE GAP BED LATHE
MODEL: S20100G, S/N: 712256, NEW: 1993
SPECIFICATIONS:
SWING OVER BED WAYS ................. 20"
SWING IN REMOVABLE GAP .............. 27"
SWING OVER CROSS SLIDE .............. 11-1/4"
DISTANCE BETWEEN CENTERS ............ 100"
WIDTH OF BED ........................ 14-1/8"

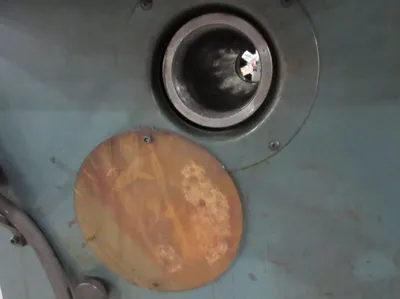

HOLE THRU SPINDLE ................... 3-1/8"
SPINDLE NOSE ........................ D1-8" CAMLOCK

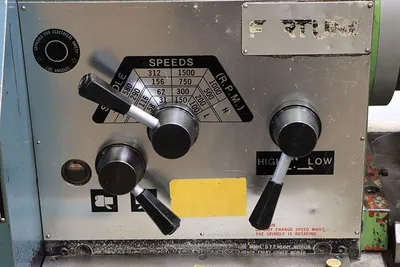

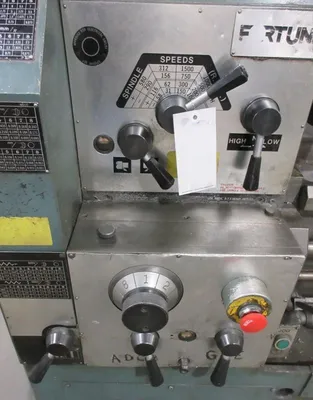

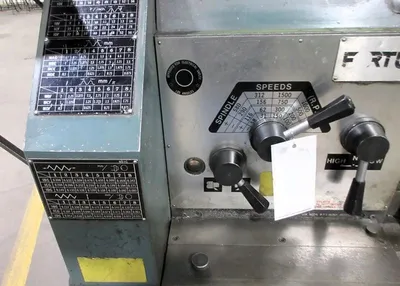

SPINDLE SPEED RANGE (16) ............ 31 - 1500 RPM
LONGITUDINAL FEED RANGE ............. .0033" - .0233"
CROSS FEED RANGE .................... .0016" - .0108"
INCH THREADING RANGE ................ 4 - 56 TPI
METRIC THREADING RANGE .............. 0.5 - 7mm
TAILSTOCK SPINDLE TRAVEL ............ 6"
TAILSTOCK SPINDLE TAPER ............. #4MT
APPROXIMATE FLOOR SPACE ............. 145"L x 36"W x 50"H
APPROX WEIGHT ....................... 6,000 LBS
EQUIPPED WITH:

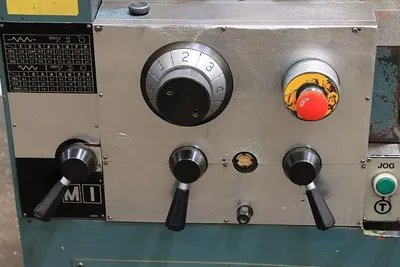

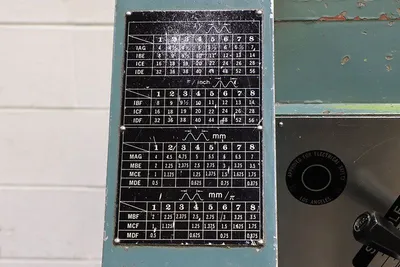

INCH & METRIC THREADING CAPABILITY

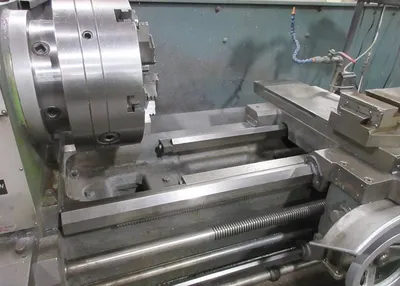

REMOVEABLE GAP

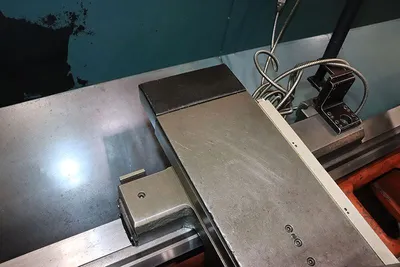

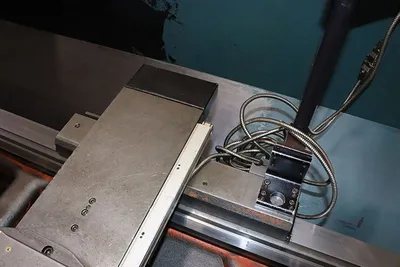

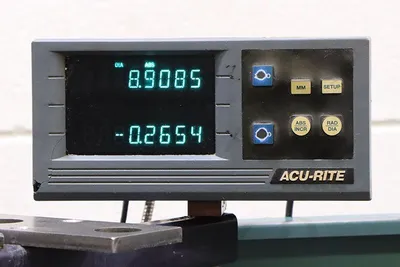

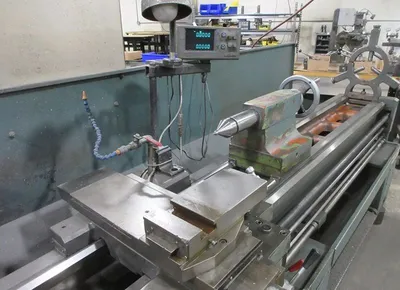

TWO AXIS DIGITAL READOUT

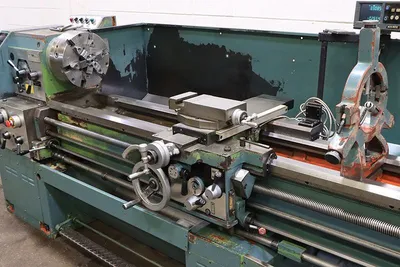

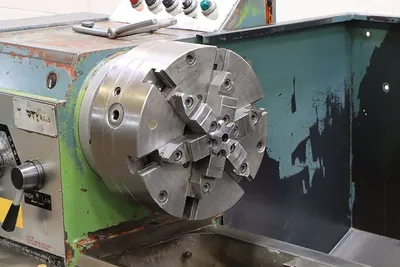

12" 6-JAW CHUCK

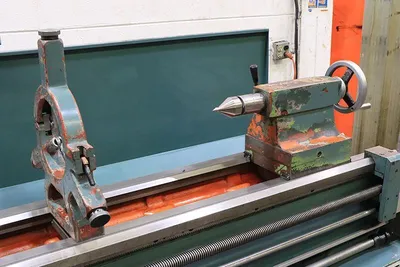

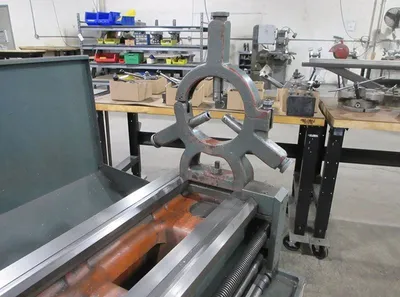

8" CAPACITY ROLLER TYPE STEADY REST
THREAD DIAL INDICATOR
THREAD DIAL INDICATOR
FOOT BRAKE

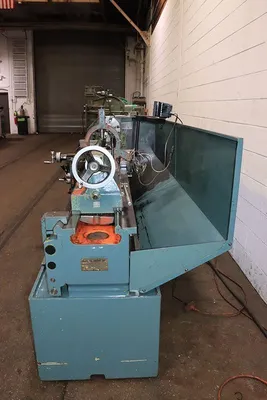

COOLANT SYSTEM WITH REMOVABLE CHIP PANS

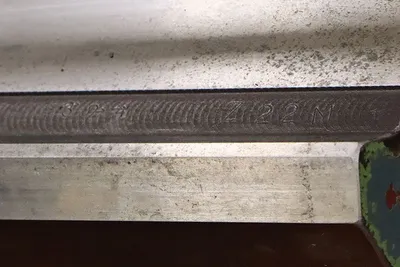

HARDENED & GROUND BED WAYS
10 HORSE POWER MAIN MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
