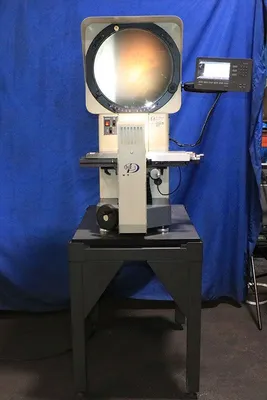

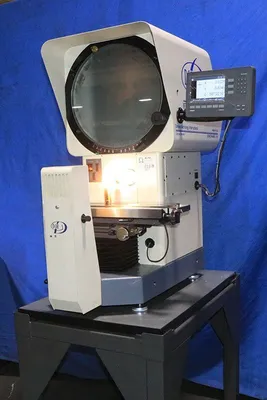

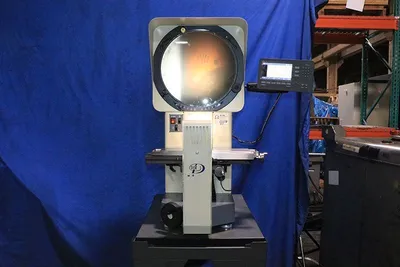

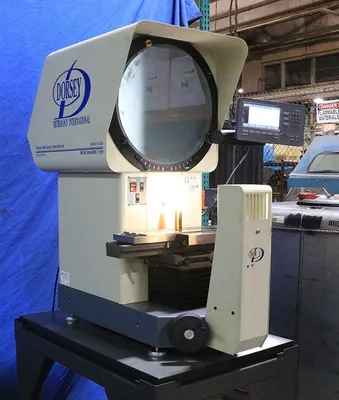

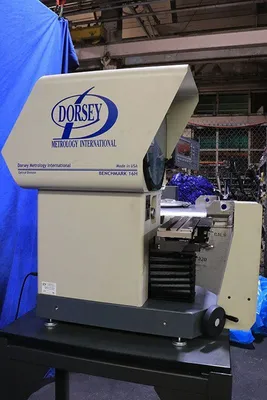

16" DORSEY "Made in USA" Optical Comparator with Erect Image ** "METLOGIX MX 203" DRO, featuring programmable geometric functions ** Model: 16H-200HN New: 2023
ConditionUsed
1 available
DORSEY 16H-200HN Comparator, 2023 model, used condition. Reliable and precise equipment for quality inspection tasks. Ideal for industrial and manufacturing settings seeking dependable performance.

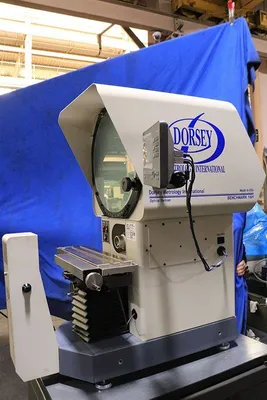

16" DORSEY "Made in USA"
Optical Comparator
with Erect Image
** "METLOGIX MX 203" DRO, featuring
programmable geometric functions **

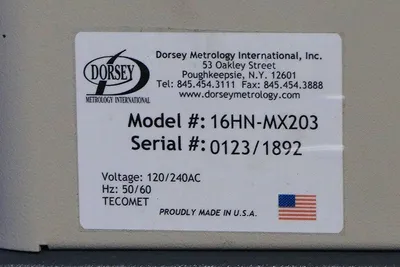

Model: 16H-200HN S/N: 0123-1892 New: 2023

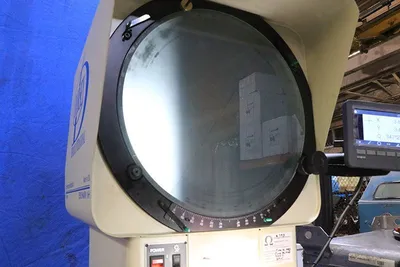

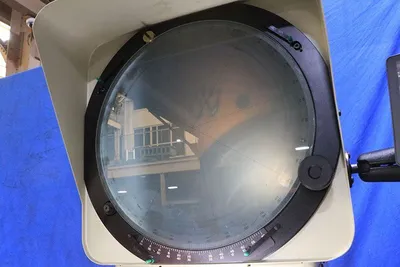

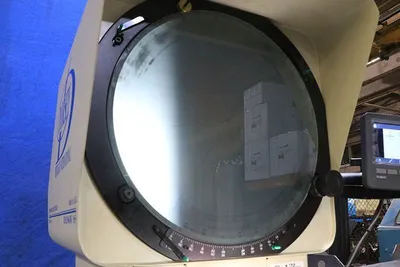

Screen Diameter: ................ 16"
Size of measuring table: ........ 5" x 18"
Measuring capacity
- longitudinal table travel: .... 10"
- vertical table travel: ........ 6"
Helix table adjustment: ......... +/- 15°
Angular measuring capacity: .. 1 minute/0.01° arc
Cross travel for focusing: ...... 2"
Allowable work load on table: ... 150 lbs.
Approximate Weight
(Comparator Only): 460 lbs.
Approximate Dimensions: 28" L-R, 42" F-B x 70" H
Equipped With:
Erect profile image

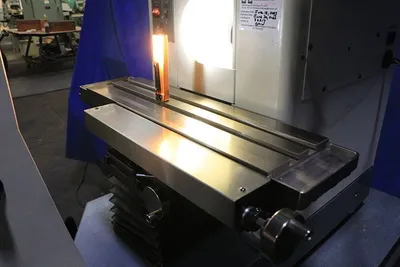

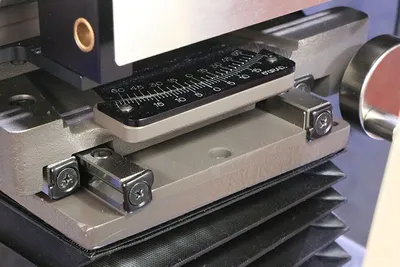

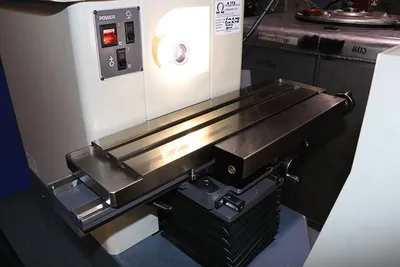

5" x 18" cast iron, nickel plated, twin dovetail
workstage

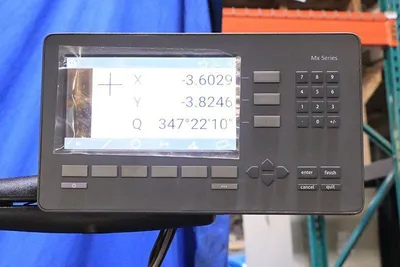

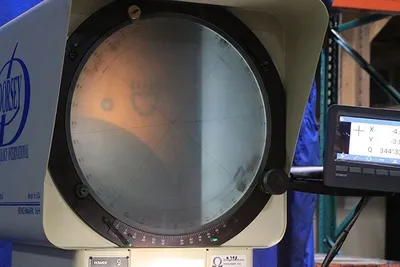

"Metlogix Model MX 203" Digital Readout (X, Y & Q)
(0.00005" resolution - 1 micron)
with programmable geometric functions
"Q" Axis is Dispalyed on the Digital Readout

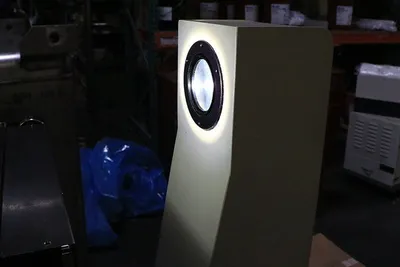

Tungsten halogen bulbs for both profile
(150W) & Surface (250W) illumination located
in lamphouse
Fiber optic x 2 surface illumination
Manually driven protractor ring with
digital readout display

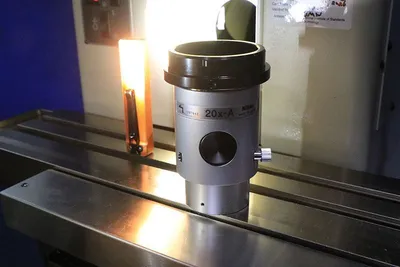

20X projection lens
Table mounted swivelling vise made by DORSEY

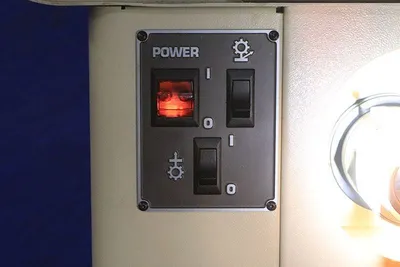

1/60/120-240 Volt electrics
Special Note:
This Optical Comparator is made in
Poughkeepsie, N.Y., by "Dorsey Metrology",
www.dorseymetrology.com . Additionally
lenses and other accessories can be
purchased from them, for this super-precision
Optical Comparator.

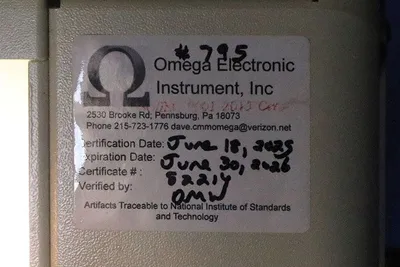

Calibrated on 06/18/2025 By:
Omega Electronic Instrument, Inc.
Certificate No. 82214
(215) 723-1776
