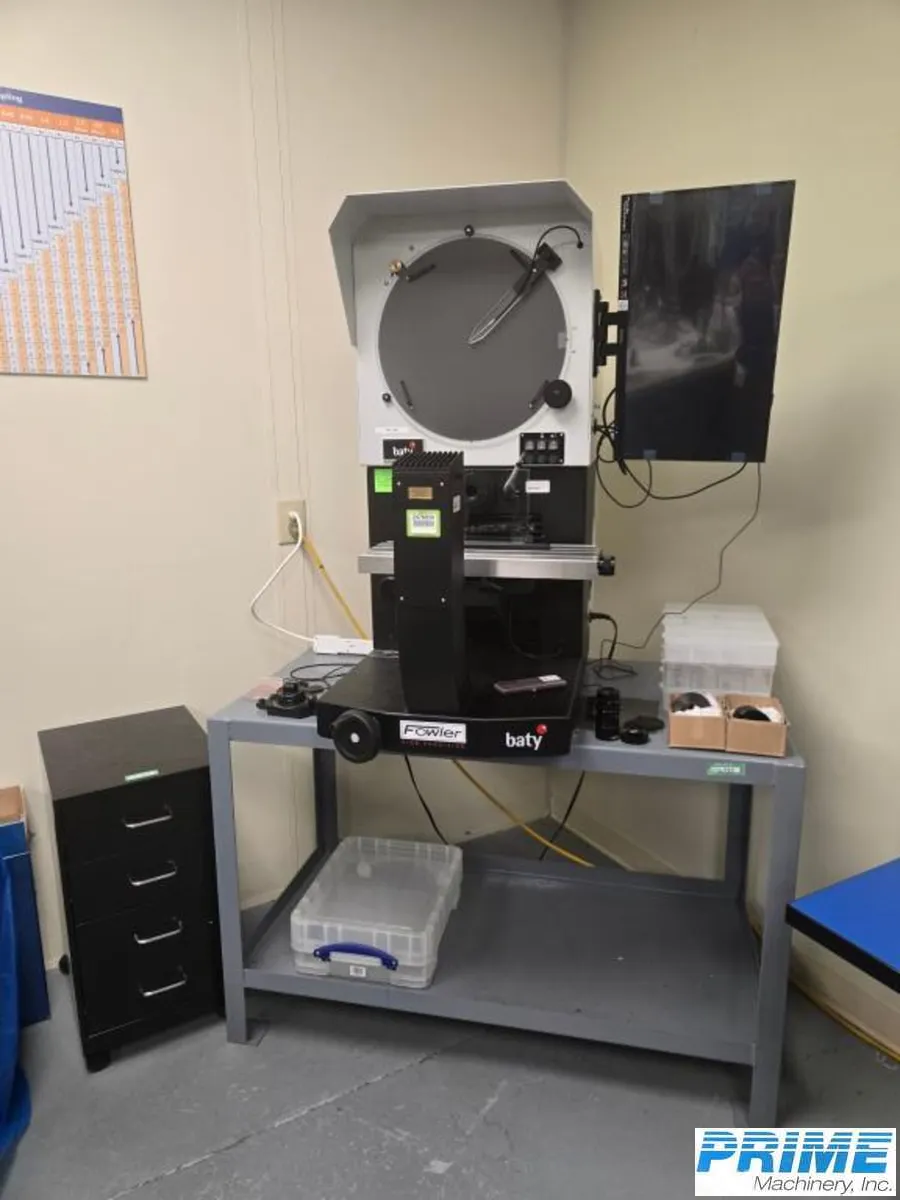

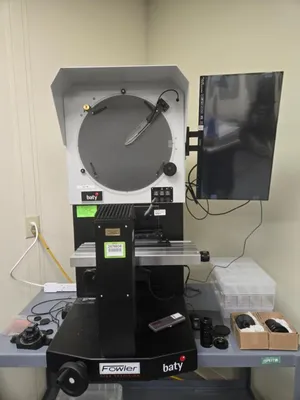

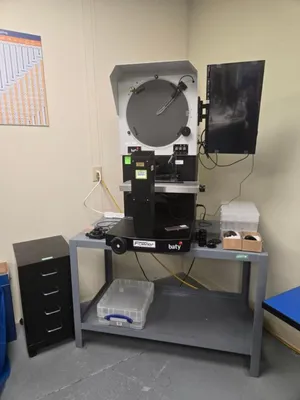

16" Fowler Baty - Model R400-FT2-E Horizontal Optical Comparator 27" Fusion touch screen DRO & optical edge sensor New: 2020

Equipped With:

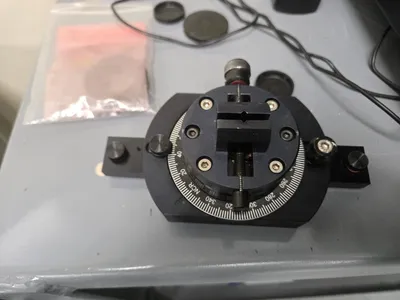

All the Lenses & Accessories & Shown in the Photos

Description:
Windows based measuring with full
reporting options, SPC, CAD import/export
16"/400mm screen with 90º crosslines
and chart clips
Profile illumination with halogen lamp
and green filter

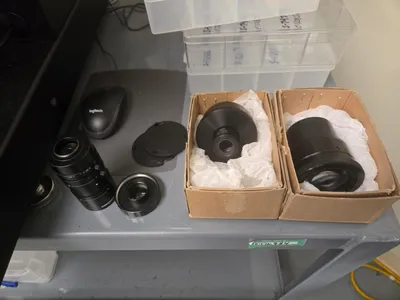

Lens magnification choice:
10x, 20x, 25x, 50x and 100x
Surface illumination (fibre optic)
Helix adjustment of light source for
accurate thread form projection

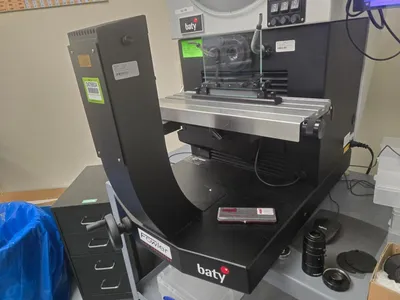

Workstage with two machined slots for
holding accessories
Workstage measuring range of 300mm (12")
x 150mm (6")
Digital angle measurement to 1 minute
0.5 micron resolution

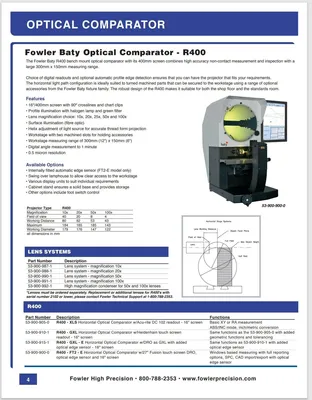

The Fowler Baty R400 bench mount optical
comparator with its 16" (400mm) screen
combines high accuracy non-contact
measurement and inspection with a large
12" (300mm) x 6" (150mm) measuring range.

The horizontal light path configuration is
ideally suited to turned machined parts
that can be secured to the workstage
using a range of optional accessories
from the Fowler Baty fixture family.

** As New Condition & Appearance **
** Arriving Soon to our Harrison, NJ Warehouse **
