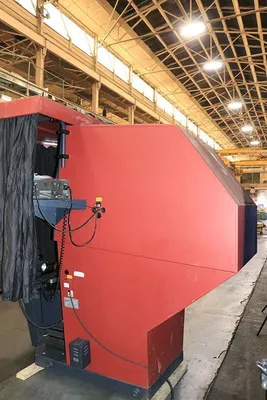

30" STARRETT "SIGMA SERIES" FLOOR TYPE HORIZONTAL BEAM OPTICAL COMPARATOR, COMPLETE WITH CANOPY & CURTAINS ** QUADRA-CHEK 2000 DRO W/PROGRAMMABLE GEOMETERIC FUNCTIONS ** MODEL: HF750 NEW: 2011
ConditionUsed
1 available
STARRETT SIGMA HF750, 2011 model. This used comparator is ideal for precise measurements. Boost efficiency with reliable performance and enhance quality control processes. Don't miss out on adding this vital tool to your operations.

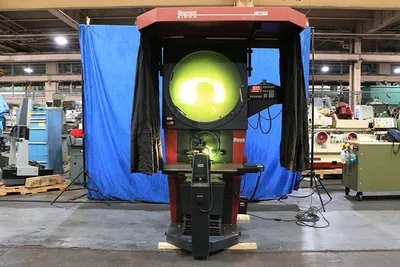

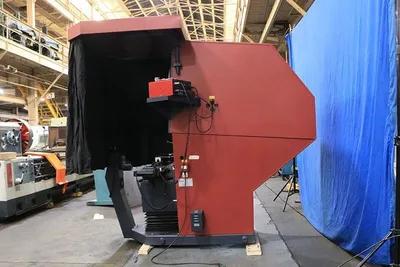

30" STARRETT "SIGMA SERIES" FLOOR TYPE
HORIZONTAL BEAM OPTICAL COMPARATOR,
COMPLETE WITH CANOPY & CURTAINS
** QUADRA-CHEK 2000 DRO
W/PROGRAMMABLE GEOMETERIC FUNCTIONS **

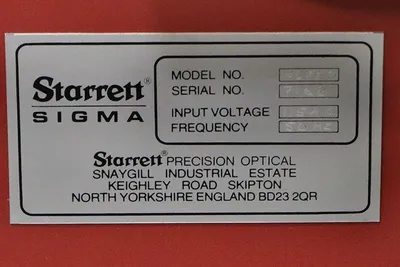

MODEL: HF750 S/N: 7168 NEW: 2011
30" SCREEN DIAMETER
25" x 9" TABLE SIZE
330 LBS. WEIGHT CAPACITY ON TABLE
17.5" WORK CAPACITY BETWEEN CENTERS
12" HORIZONTAL TRAVEL
8" VERTICAL TRAVEL
3" FOCUS
+/- 15° HELIX ANGLE
DIMENSIONS, 89"F-B x 38"W x 81"H
4,000 LBS. APPROX. MACHINE WEIGHT
EQUIPPED WITH:

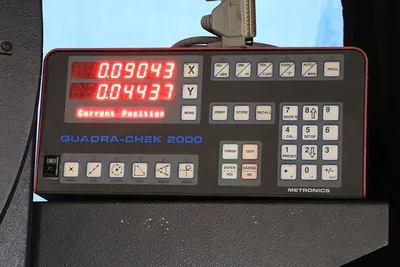

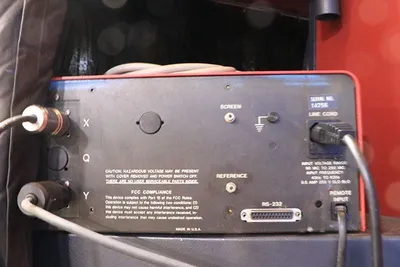

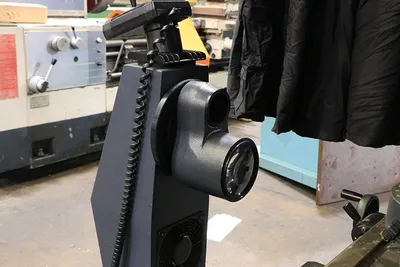

QUADRA-CHEK 2000 DRO W/PROGRAMMABLE GEOMETERIC FUNCTIONS

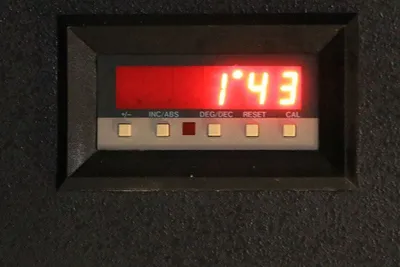

DIGITAL DISPLAY FOR THE SCREEN (Q-AXIS) IS ON THE MACHINE

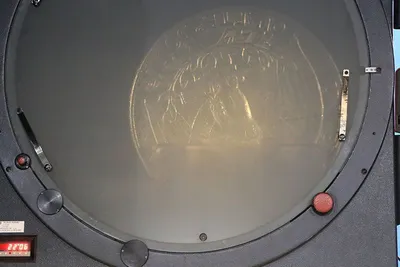

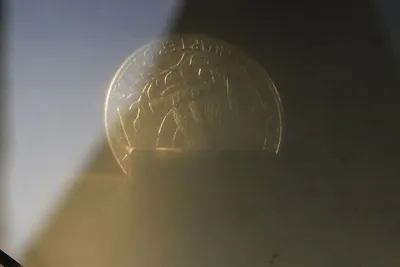

VERTICALLY CORRECT IMAGE, CLEAR & BRIGHT
THREADLESS X-AXIS QUICK-RELEASE FOR ZERO BACKLASH

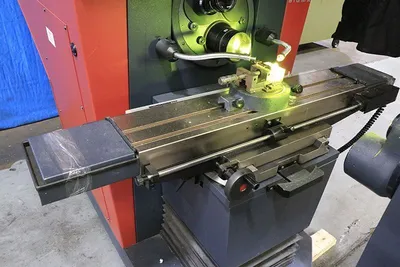

POWER HORIZONTAL & VERTICAL TABLE MOVEMENT
WITH VARIABLE SPEED DRIVE

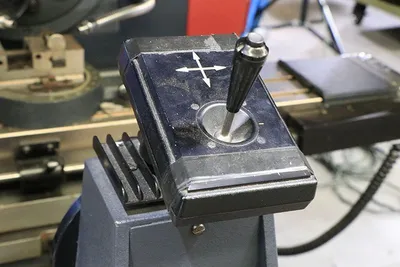

JOYSTICK FOR EASY TABLE POSITIONING
PROTECTIVE GUIDEWAYS COVERS
DUAL-BUNDLE ADJUSTABLE FIBER OPTIC SURFACE ILLUMINATION

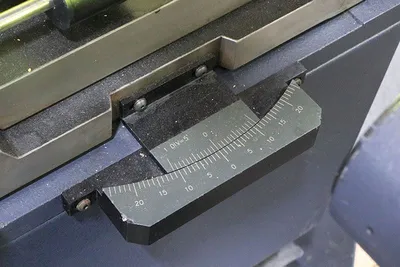

HELIX ADJUSTMENT OF +/- 15° THROUGH LAMPHOUSE
3-POSITION LENS TURRET

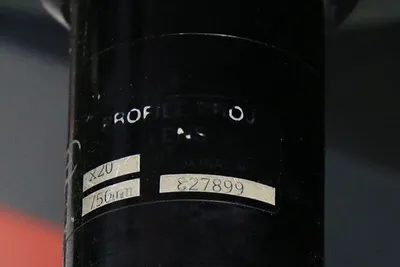

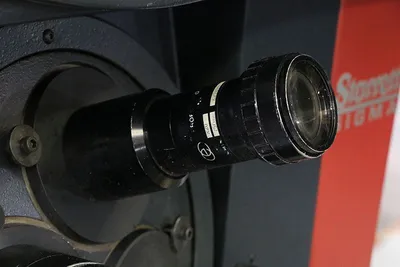

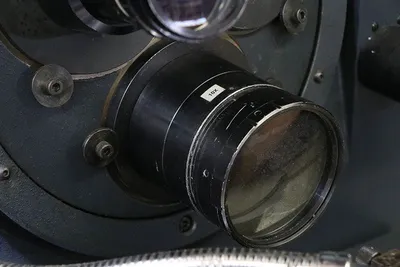

(2) LENSES WITH MACHINE, 10X & 20X LENSES

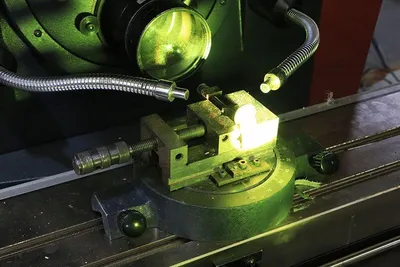

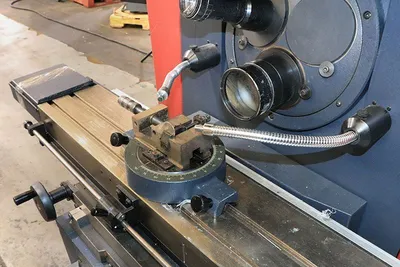

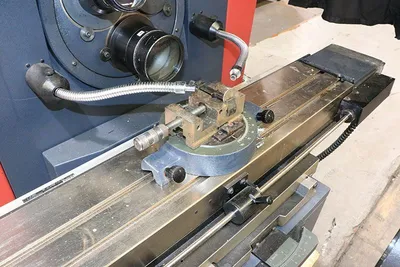

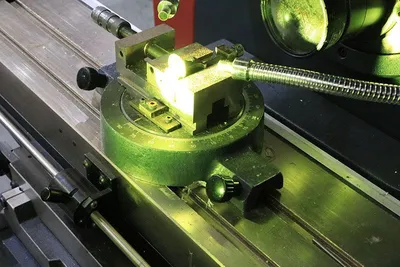

SWIVELING VISE ACCESSORY, ON THE TABLE

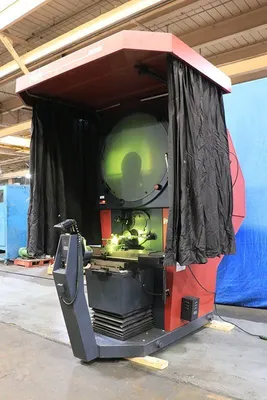

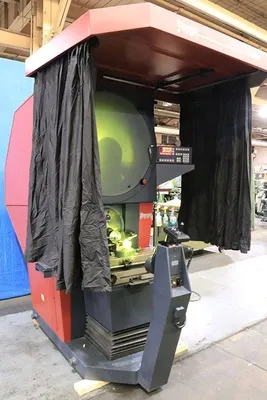

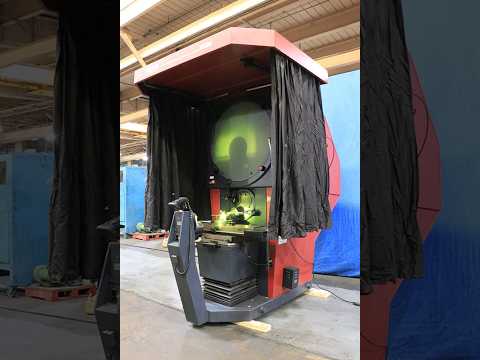

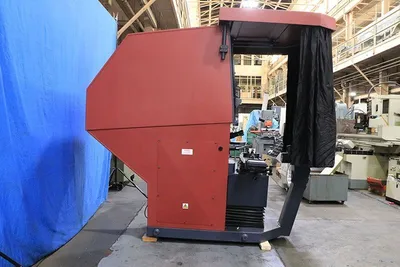

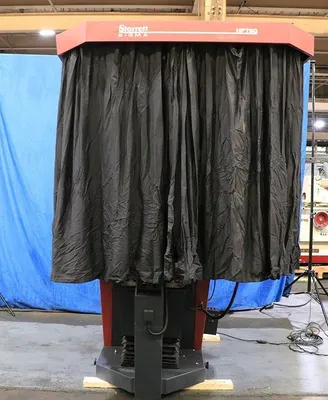

COMPLETE WITH CANOPY & CURTAINS
MACHINE IS ALL-METAL CONSTRUCTION
HALOGEN PROFILE & SURFACE ILLUMINATION
DUAL INTENSITY (HI/LOW) TUNGSTEN HALOGEN
LAMPHOUSE 24V, 150W BULB
115 VOLT/1 PHASE ELECTRICS
SPECIAL NOTE:
CALIBRATED LAST ON 09/28/2022 BY,
"FOX VALLEY METROLOGY"
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** SUPERIOR CONDITION & APPEARANCE - ALL ORIGINAL **
