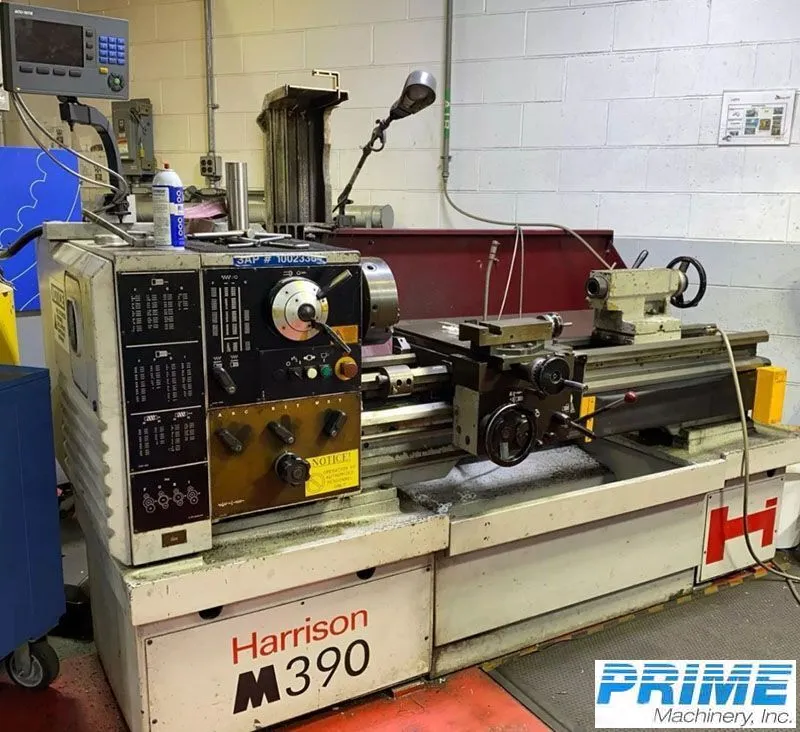

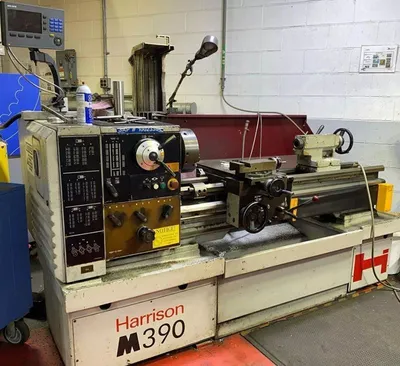

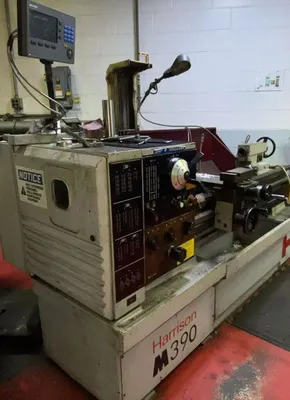

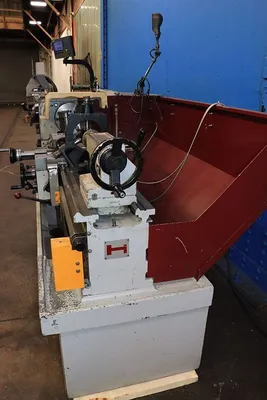

15" x 50" HARRISON MODEL: M390 TOOLROOM ENGINE LATHE - MFG: 1996
ConditionUsed
1 available

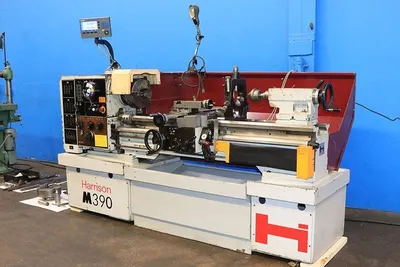

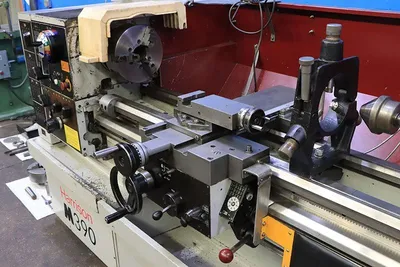

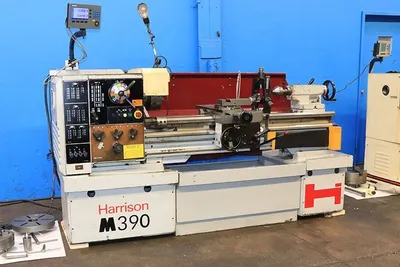

15" x 50" Harrison M390 toolroom engine lathe from 1996. Features include a 15.7" swing over bed, 50" between centers, and 7.5 HP motor. Includes ACU-RITE digital readout, taper attachment, multiple chucks, and more. Located in NJ warehouse.

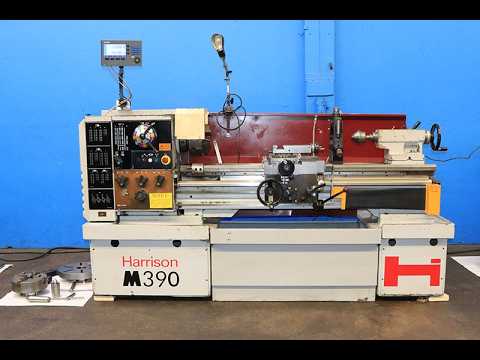

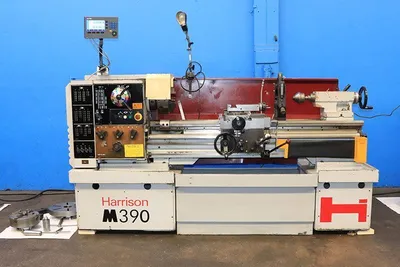

15"/23" x 50" HARRISON GAP BED ENGINE LATHE

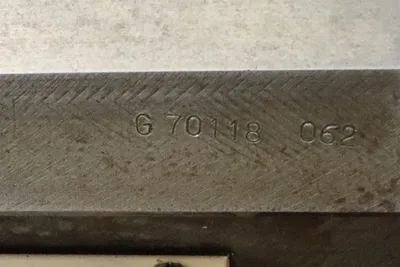

MODEL: M390, S/N: G70118, MFG: 1996
SPECIFICATIONS:
SWING OVER BED .......................... 15.7"
SWING IN REMOVEABLE GAP ................. 23"
SWING OVER CROSS SLIDE .................. 9.7"
DISTANCE BETWEEN CENTERS ................ 50"
HOLE THROUGH SPINDLE .................... 2.125"
SPINDLE NOSE ............................ D1-6 CAMLOCK

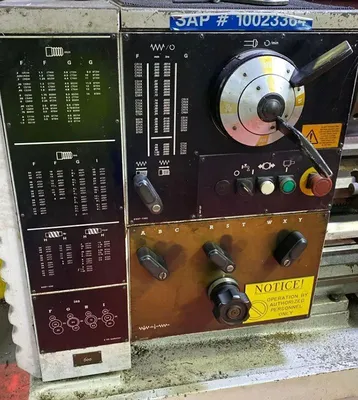

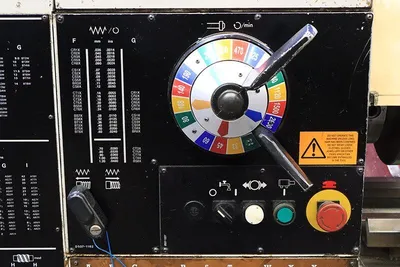

SPINDLE SPEED RANGE (16) ................ 25 - 2000 RPM

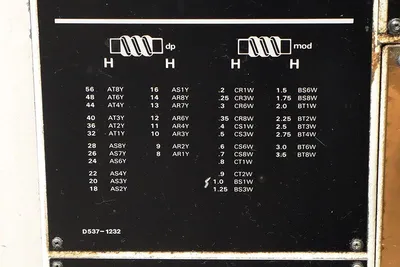

ENGLISH THREADING RANGE (56) ............ 2 - 56 TPI

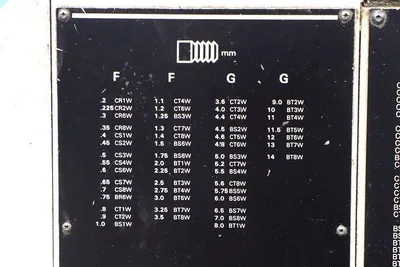

METRIC THREADING (51) ................... .2 - 14 mm
FEED RANGE LONGITUDINAL (42) ............ .0014 - .096 IPR
CROSS FEED 1/2 OF LONGITUDINAL SETTING
WIDTH OF BED ............................ 12.5"

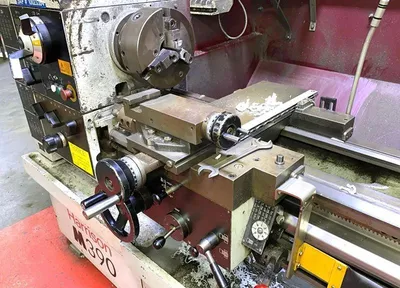

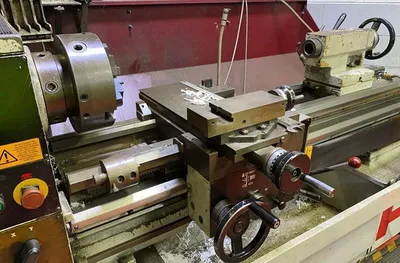

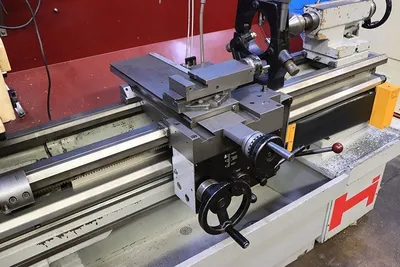

CROSS SLIDE TRAVEL ...................... 9.8"
TOP SLIDE TRAVEL ........................ 5.1"
TAILSTOCK SPINDLE TRAVEL ................ 5.5"
TAILSTOCK SPINDLE TAPE .................. #5MT
APPROX DIMENSIONS ....................... 99"L x 49"W x 51"H
APPROX WEIGHT ........................... 3500 LBS

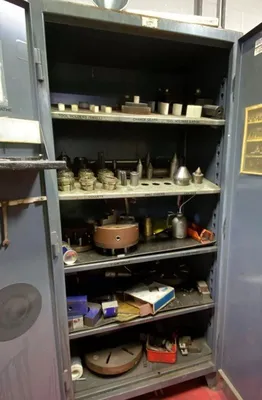

EQUIPPED WITH:

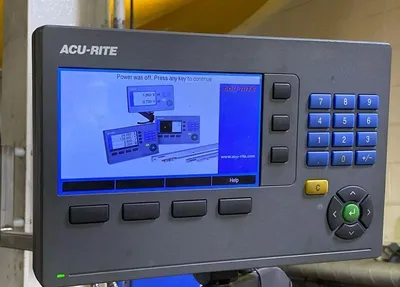

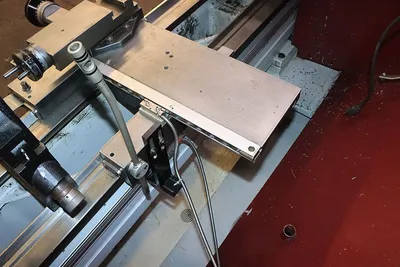

ACU-RITE DIGITAL READOUT

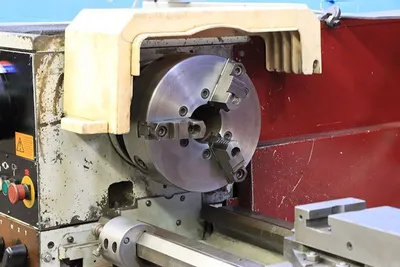

10" 3-JAW BUCK CHUCK

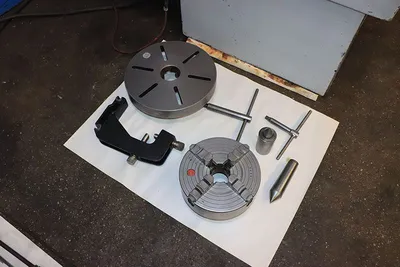

10" 4-JAW CHUCK
FACEPLATE

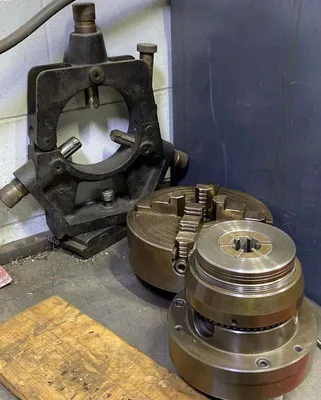

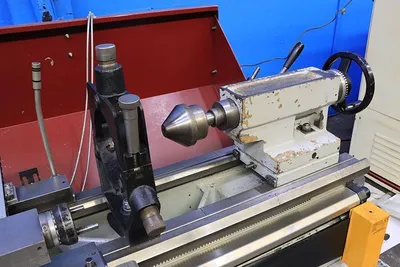

ROLLER TYPE STEADY REST
FOLLOW REST
HEADSTOCK CENTER SLEEVE & CENTER
DEAD CENTER FOR TAILSTOCK
LIVE CENTER FOR TAILSTOCK
MICROMETER CARRIAGE STOP
THREAD DIAL INDICATOR
COOLANT SYSTEM WITH REMOVABLE CHIP PAN
7.5 HORSE POWER MAIN MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
