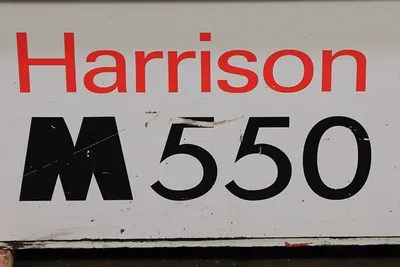

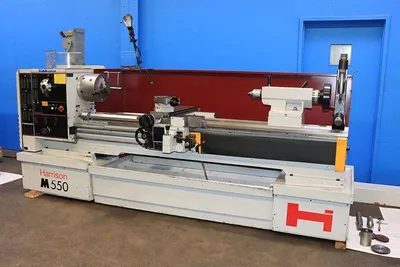

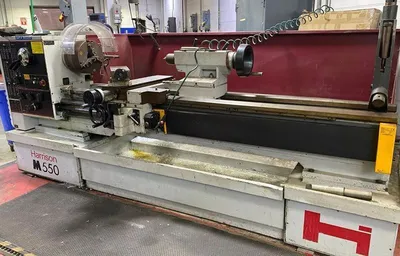

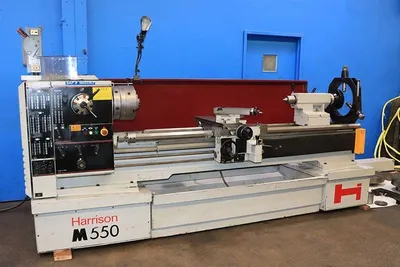

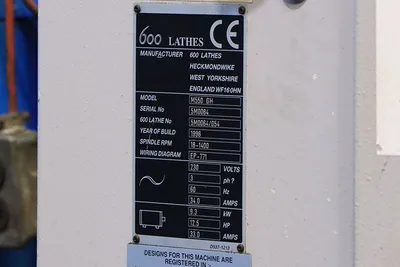

22"/32" x 80" HARRISON MODEL: M550 GH GAP BED ENGINE LATHE - MFG: 1996
Sold

22"/32" x 80" HARRISON MODEL: M550 GH GAP BED ENGINE LATHE - MFG: 1996

Sell Your HARRISON M550 GH
LATHES, GAP, REMOVABLE GAP
Manufacturer:
HARRISON
Model:
M550 GH
Year:
1996
Stock #:
69337

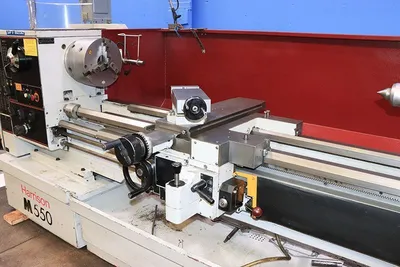

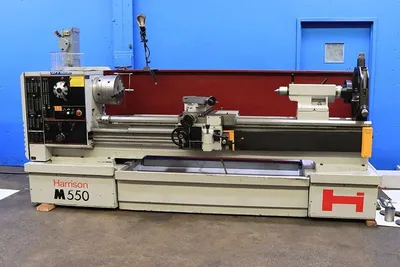

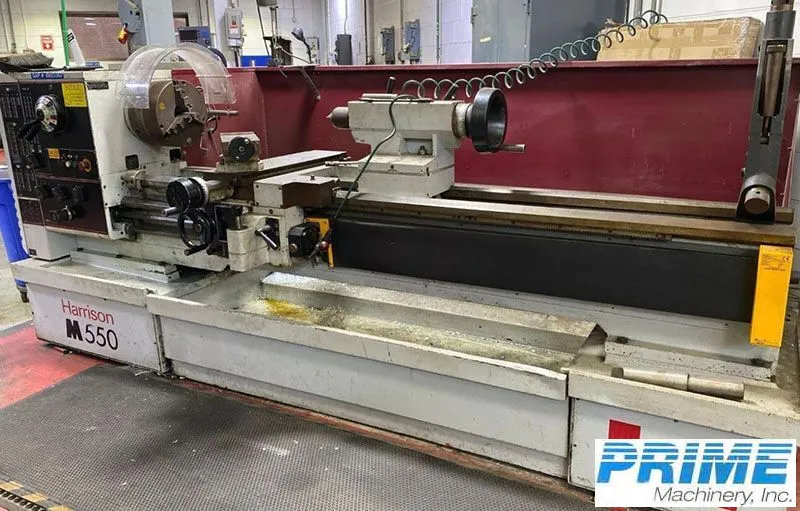

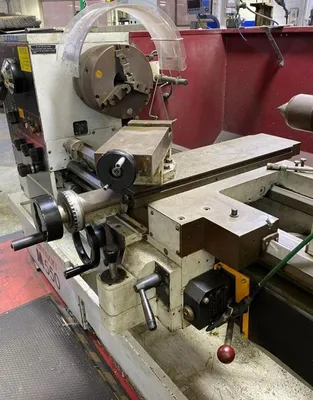

Harrison M550 GH lathe, 1996 model with a removable gap. This used piece is ideal for precision machining projects, representing a solid addition to any workshop seeking reliable equipment for complex tasks.

SWING OVER BED .................... 21.8"
SWING IN REMOVEABLE GAP ........... 32.7"
SWING OVER CROSS SLIDE ............ 14.5"
DISTANCE BETWEEN CENTERS .......... 80"
WIDTH OF BED ...................... 15.7"
HOLE THRU SPINDLE ................. 3.5"
SPINDLE NOSE CAMLOCK .............. D1-11"

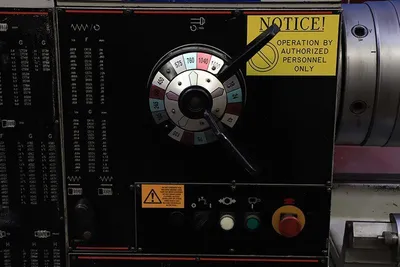

SPINDLE SPEED RANGE (16) .......... 18 - 1400 RPM
THREADING RANGE ENGLISH (51) ...... 2 - 84 TPI
THREADING RANGE METRIC (54) ....... 0.2 - 14 mm
LONGITUDINAL FEED RANGE ........... .0016" - .110" IPR
CROSS FEEDS HALF THE VALUES OF LONGITUDINAL
TAILSTOCK SPINDLE TRAVEL .......... 5.7"
TAILSTOCK SPINDLE TAPER ........... #6 MT
APPROXIMATE WEIGHT ................ 10,500 LBS
APPROXIMATE DIMENSIONS ............ 140"L x 57"W x 60"H

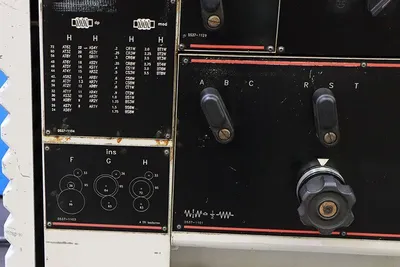

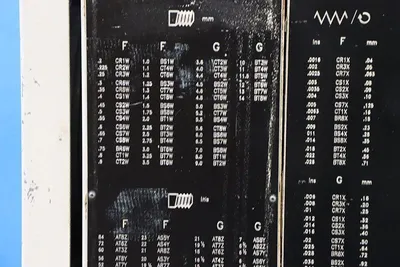

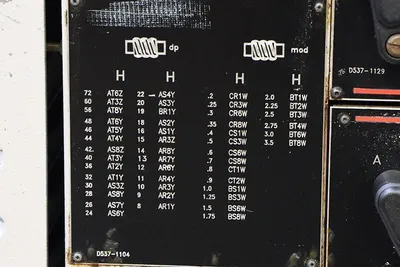

INCH/METRIC THREADING CAPABILITY

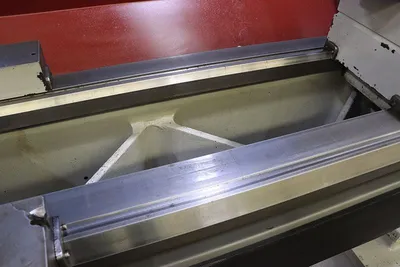

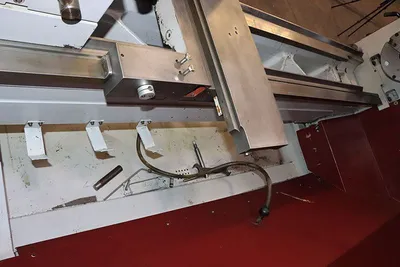

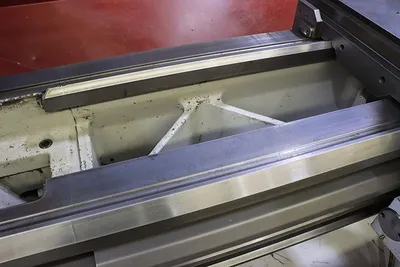

REMOVEABLE GAP BED

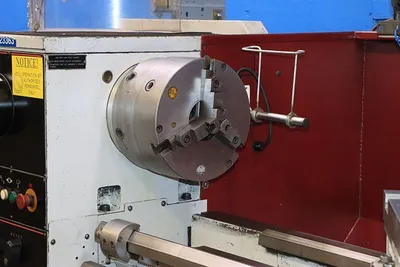

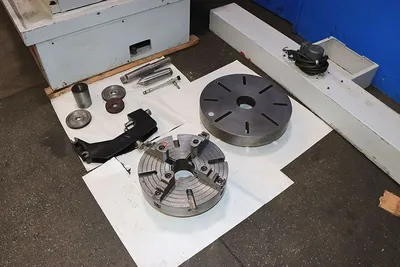

PRATT BURNERD 3-JAW CHUCK
4-JAW CHUCK
FACEPLATE

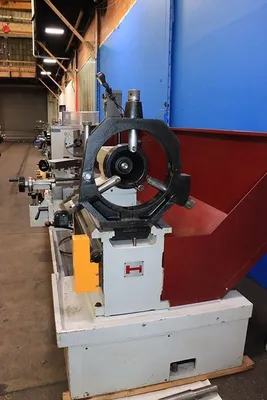

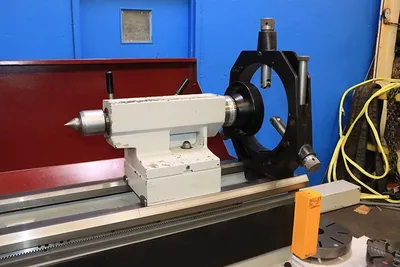

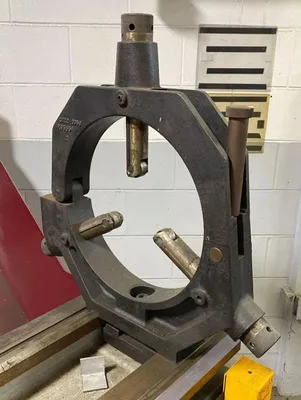

ROLLER TYPE STEADY REST
FOLLOW REST

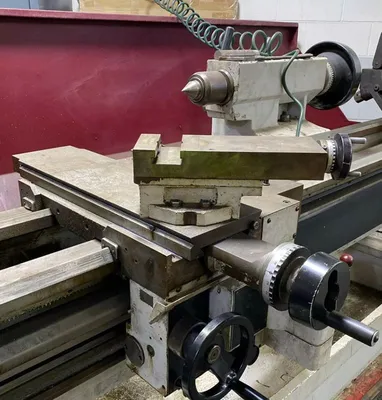

LIVE CENTER FOR TAILSTOCK

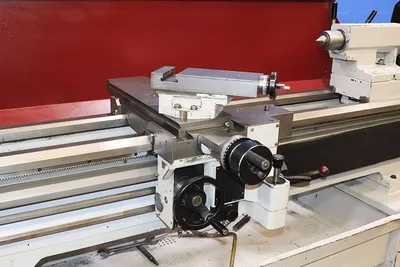

MICROMETER CARRIAGE STOP
THREAD DIAL INDICATOR

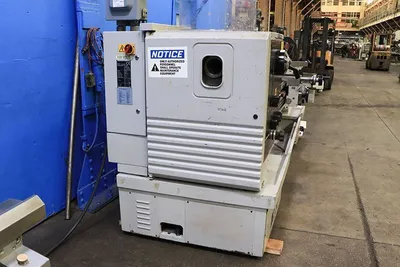

COOLANT SYSTEM WITH REMOVEABLE CHIP PAN

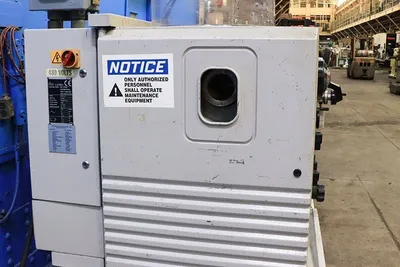

12-1/2 HORSE POWER MAIN DRIVE MOTOR

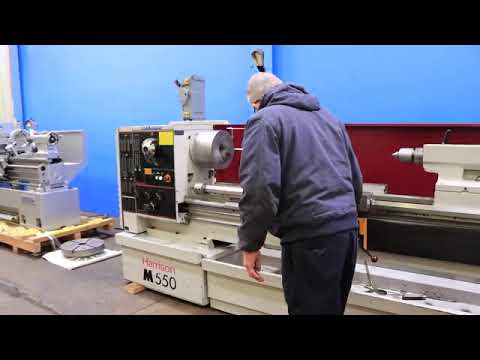

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

This equipment has been sold. Similar equipment available now is shown below.
