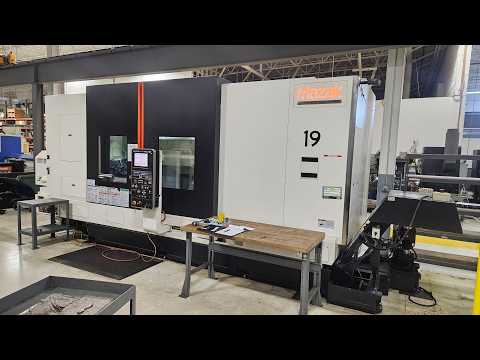

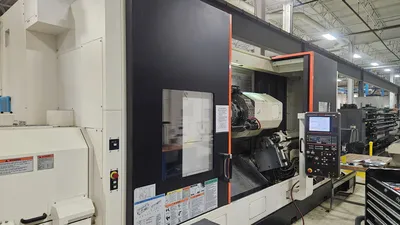

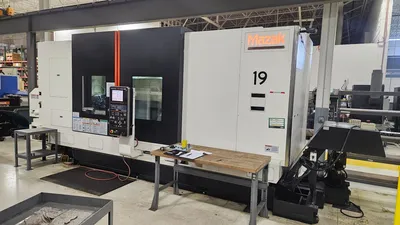

MAZAK CYBERTECH TURN 4500M CNC TURNING CENTER W/ 10.8" SPINDLE BORE - NEW: 2013
ConditionUsed
1 available

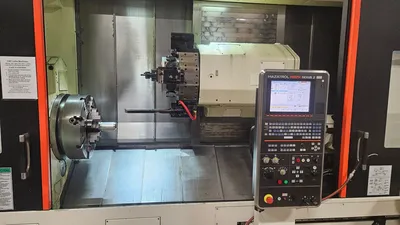

MAZAK CYBERTECH TURN 4500M CNC Lathe. Features 33.8" swing, 80" machining length, 10.8" Spindle Bore, 50 HP, 12 turret stations, 1,000 RPM max, and Mazak Matrix Nexus 2 control. Equipped with 24" 4-Jaw Chucks, Front and Rear, 10.8" bore, Live Milling, Steadyrest, tool eye, chip conveyor, and more. Great for precision machining! Low hours and very clean.
Mazak Cyber Turn 4500M 80"

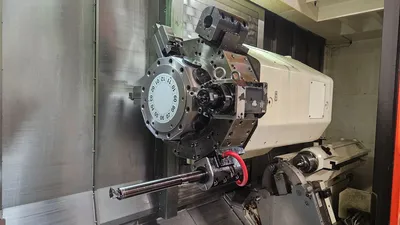

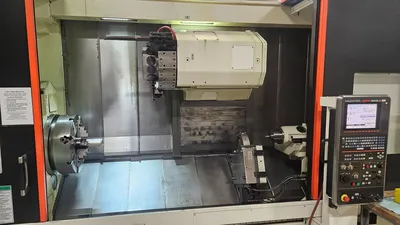

12 Position Turret for Turning or Rotary Tools
C-Axis 0.0001 Degree Imcrements

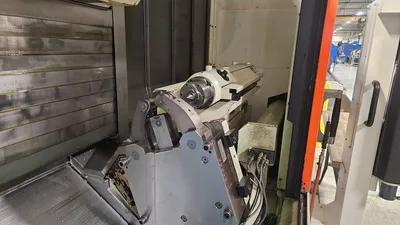

Programmable Tailstock
Spindle Bore Diameter 10.8" with A2-20 Nose
Spindle Speeed 1000 RPM

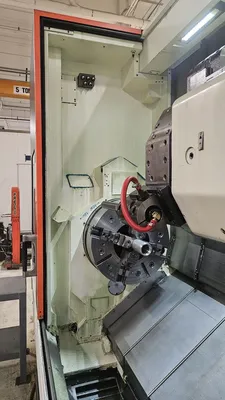

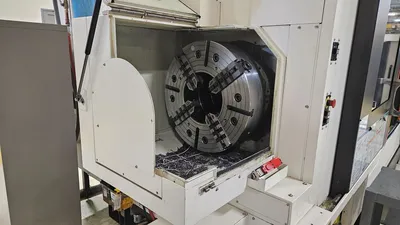

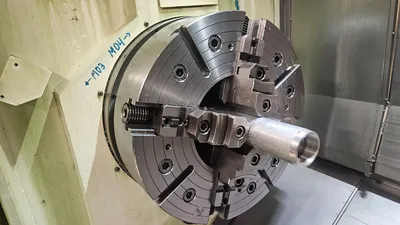

Pratt Burnered 24" 4-Jaw Manual Chuck (10.8" Bore) Front and Rear
Rotary Milling:
- Spindle Speed 3,000 RPM
- Spindle Power 15 HP

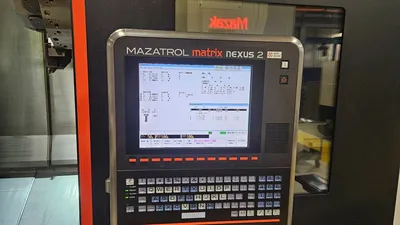

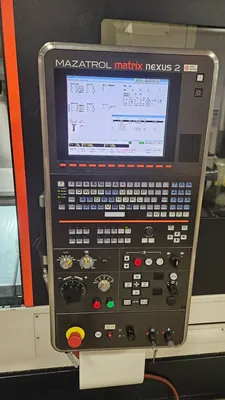

Mazak Matrix Nexus 2 CNC Control
Milling- Spindle Synchronous Tapping

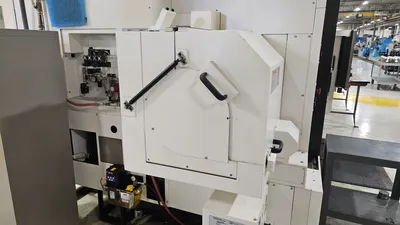

Chip Conveyor 2000U

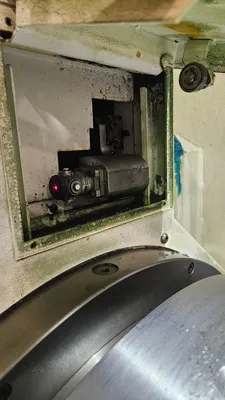

Tool Eye (Automatic)

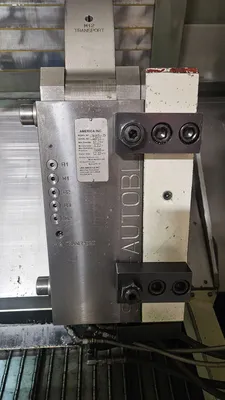

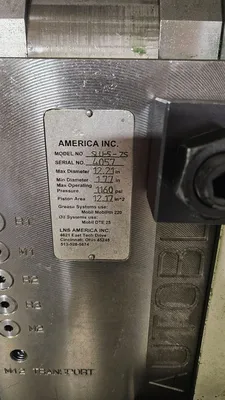

SMW Steady Rest SLU5 (1.77" to 12.2" Cap)
Thread Start Point Compensation
Extendable Tailstock Option 19"
Re-Threading Function
Thread Cutting Function (G33)
Pratt Burnered 24" 4Jaw Manual Chucks front and rear with 10.8" Bore
High-Power Coolant 213 PSI

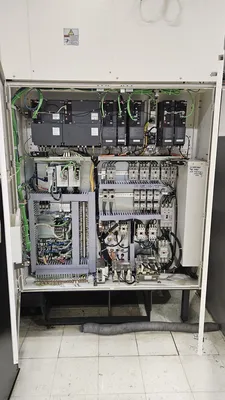

Multitap Transformer 230-460V
Programmable Tailstock
Tool Eye (Automatic)

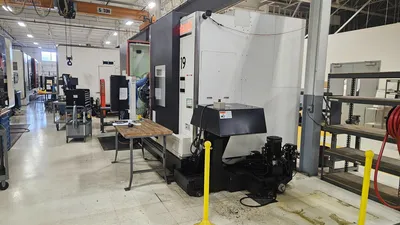

VERY LOW HOURS, SUPER CLEAN. INSPECT UNDER POWER IN NORTH EAST SHOP.
CALL FOR PRE-REMOVAL SAVINGS
MAZAK CYBERTECH TURN 4500M CNC Lathe. Features 33.8" swing, 80" machining length, 10.8" Spindle Bore, 50 HP, 12 turret stations, 1,000 RPM max, and Mazak Matrix Nexus 2 control. Equipped with 24" 4-Jaw Chucks, Front and Rear, 10.8" bore, Live Milling, Steadyrest, tool eye, chip conveyor, and more. Great for precision machining! Low hours and very clean.
Imperial
| Swing | 33.8" |
| Swing Over Cross Slide | 27.6" |
| Max Cutting Dameter | 32.9" |
| Machining Length | 80" |
| # Axis | 3 |
| X-Axis Travel | 21.3" |
| Z-Axis Travel | 83.3" |
| Chuck Size | 24" |
| Bar Capacity | 10.8" |
| Power | 50 hp |
| Max RPM | 1,000 RPM |
| Tailstock | Yes |
| Live Tooling | Yes |
| Spindle Bore | 10.8" |
| Sub Spindle | No |
| Rapid Traverse Rate X-Axis | 945 ipm |
| Rapid Traverse Rate Z-Axis | 1181 ipm |
| Live Milling Speed | 3000 rpm |
| Live Milling Motor | 15 hp |
| # Turret Stations | 12 station |
| C-Axis Indexing | 0.001 |
| Control | CNC (Mazatrol Nexus 2 Control) |
| Dimensions | 92" x 264" x 110.3" H |
| Weight | 41,000 lbs |
Mazak Cyber Turn 4500M 80"
12 Position Turret for Turning or Rotary Tools
C-Axis 0.0001 Degree Imcrements
Programmable Tailstock
Spindle Bore Diameter 10.8" with A2-20 Nose
Spindle Speeed 1000 RPM
Pratt Burnered 24" 4-Jaw Manual Chuck (10.8" Bore) Front and Rear
Rotary Milling:
- Spindle Speed 3,000 RPM
- Spindle Power 15 HP
Mazak Matrix Nexus 2 CNC Control
Milling- Spindle Synchronous Tapping
Chip Conveyor 2000U
Tool Eye (Automatic)
SMW Steady Rest SLU5 (1.77" to 12.2" Cap)
Thread Start Point Compensation
Extendable Tailstock Option 19"
Re-Threading Function
Thread Cutting Function (G33)
Pratt Burnered 24" 4Jaw Manual Chucks front and rear with 10.8" Bore
High-Power Coolant 213 PSI
Multitap Transformer 230-460V
Programmable Tailstock
Tool Eye (Automatic)
VERY LOW HOURS, SUPER CLEAN. INSPECT UNDER POWER IN NORTH EAST SHOP.
CALL FOR PRE-REMOVAL SAVINGS
