| Swing | 20.6" | 523.24 mm |
| Machining Length | 20.6" | 523.24 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.6" | 66.04 mm |
| Power | 31.5 hp | 23.5 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 14" | 355.6 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
Capacity:
Distance Between Centers 23.5"
Swing Over Bed 20.6"
Swing Over Cross Slide 11.8"
Maximum Turning Diameter 14"
Maximum Turning Length 20.6"
Maximum Bar Capacity 2.6"
Travel:
X-Axis 8"
Z-Axis 21.6"
Spindle:
Maximum Spinde Speed 4,000 RPM
Spindle Power 31 HP
Spindle Nose A2-6

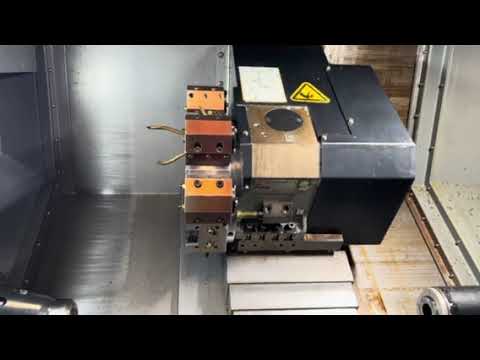

Turret:
Tool Type - Slotted Disk
Tool Capacity - 12 Stations
Approximate Floor Space 169" x 107" x 86" H
Approximate Weight 9,000 Lbs

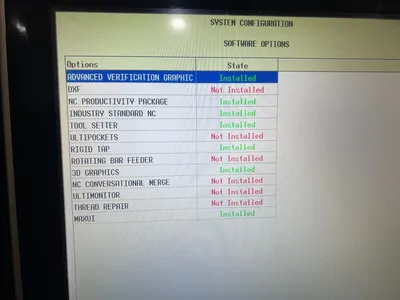

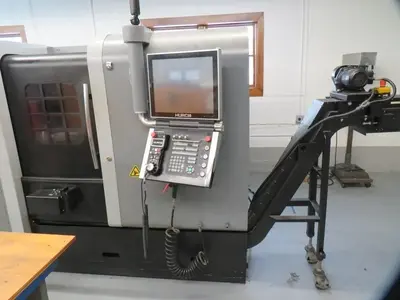

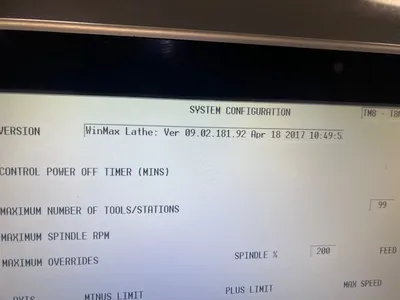

Hurco MAX5 CNC Control with 19" Touch Screen LCD with:
- Conversational Programming
- NC/G Code Programming
- NC/Conversational Merge
- NC Productivity Package
- Rigid Tap
- 3D Graphics
- Advanced Verification Graphic
- MAXUI
Tool Pre-Setter, Renishaw
Parts Catcher

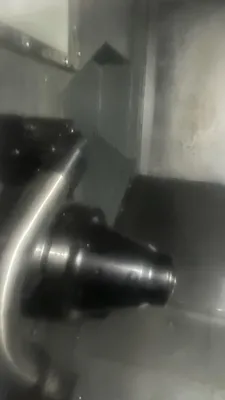

Tailstock
Chip Conveyor

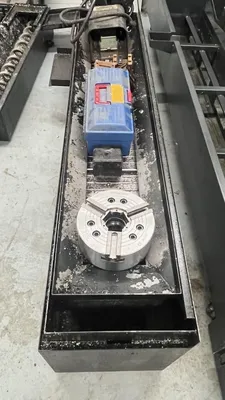

8" 3-Jaw Chuck and Collet
Misc Tool Blocks
Only 2,742 Cutting Hours.
This equipment has been sold. Similar equipment available now is shown below.
