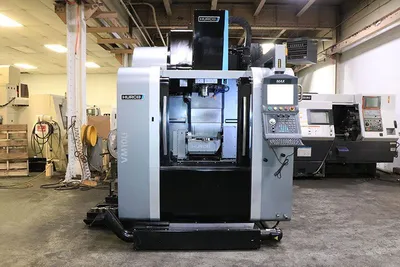

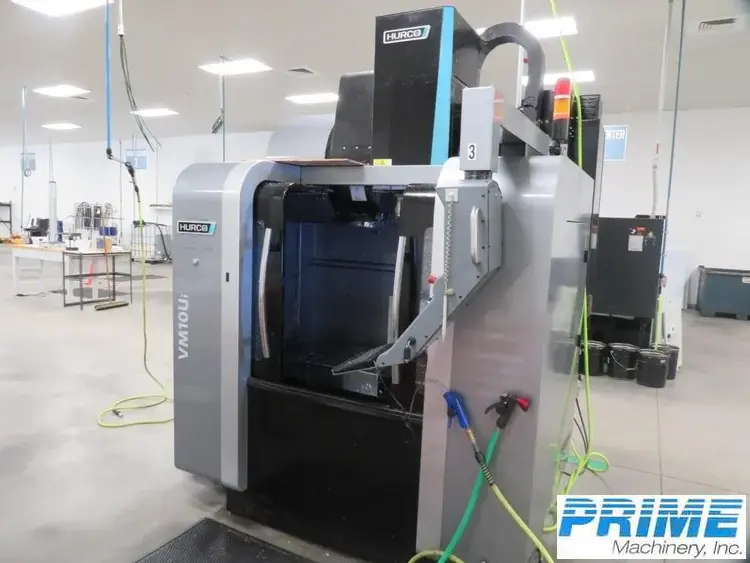

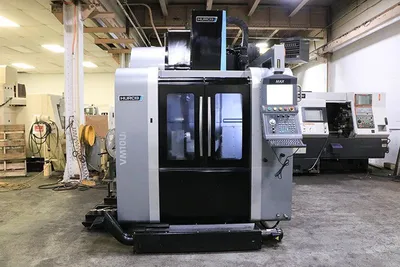

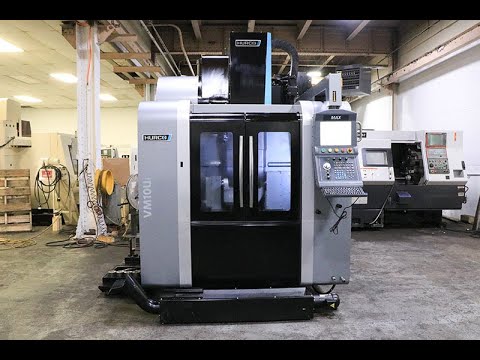

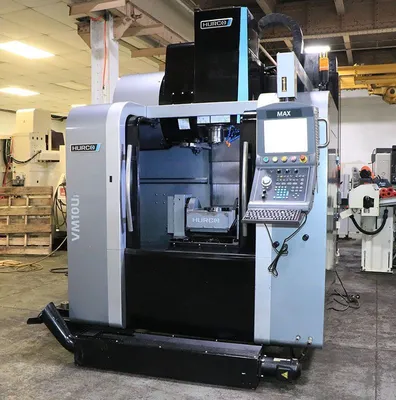

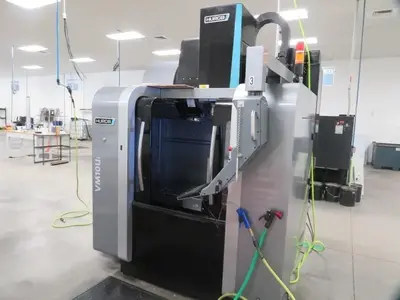

HURCO VM10UI 5 AXIS VERTICAL MACHINING CENTER - NEW: 2013
ConditionUsed
1 available
HURCO VM10UI 5-axis machining center. Specs: Travel X21"/Y16"/Z19", 15HP spindle at 10,000 RPM, CAT-40 taper, and 20-tool capacity. Equipped with Hurco WinMax software for advanced machining functionalities.
Table Size 7.8"
Max Weight on table 330 Lbs
Spindle Nose to Table Min / Max 1.4"/20.4"
X-Axis Travel 21"
Y-Axis Travel 16"
Z-Axis Travel 19"
A-Axis Travel +30 degrees/- 110 degrees
C-Axis Travel 360 degree
Max Spindle Speed 10,000 RPM
Spindle Taper Cat 40
Spindle Motor 15 HP
Spindle Tourque 45 ft lbs / 61 Nm
Tool Capacity 20
Rapid Traverse X,Y,Z 945 IPM
A-Axis Max RPM 25
C-Axis Max RPM 25
71" L, 68" W plus 24" for control when out, 105.5" H max
Machine Weight - 7,500 Lbs

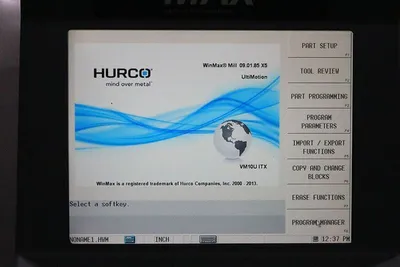

Hurco WinMax Mill Conversational and NC Programming
5-Axis/5-Sided Software Features - Tool Path Linearization, Tool Center Point Management,
Transform Plane, 3D Tool Compensation, Tool Vector Input and Retract,
Shortest Angular Traverse, #D Import

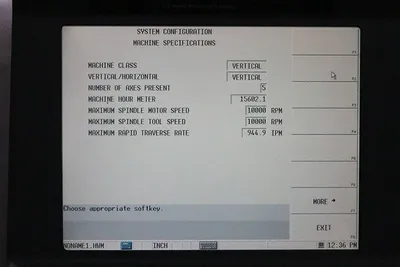

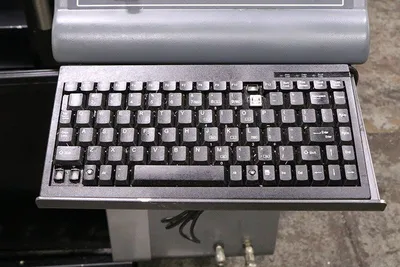

Max5 Console with 19" LCD Screen

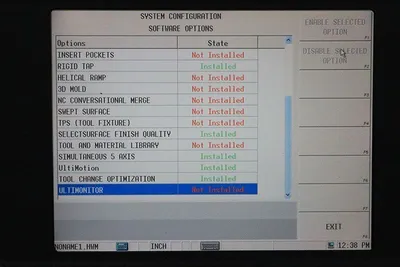

Software Options:
- Selectsurface Finish Quality
- Simultaneous 5 Axis
- UltiMotion
- Tool Change Optimazation
- Rigid Tap
- Advanced Verification Graphic
- NC Productivity Package
- Industry Standard NC
Chip Auger

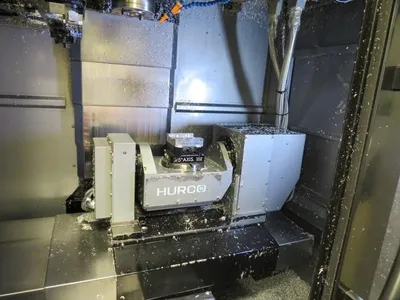

(Vice in Photo does not go with machine)

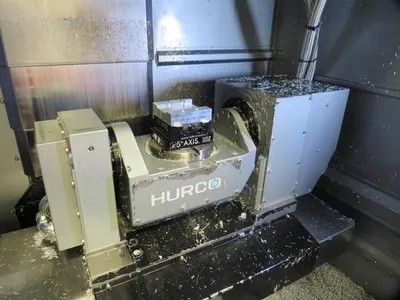

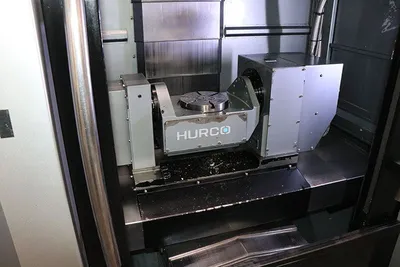

Integrated Trunnion Table Design Provides More Clearance in Z-Axis
Spindle Thermal Chiller
Small footprint. Big work cube
