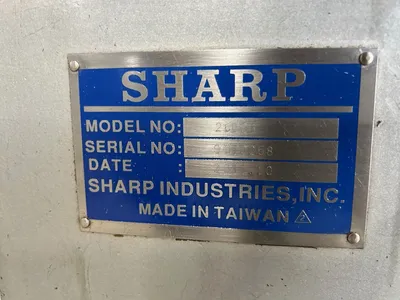

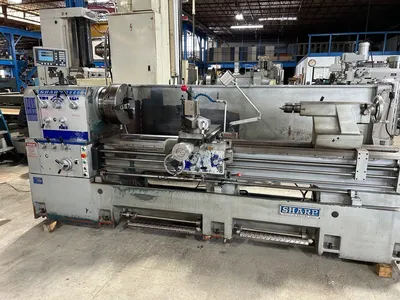

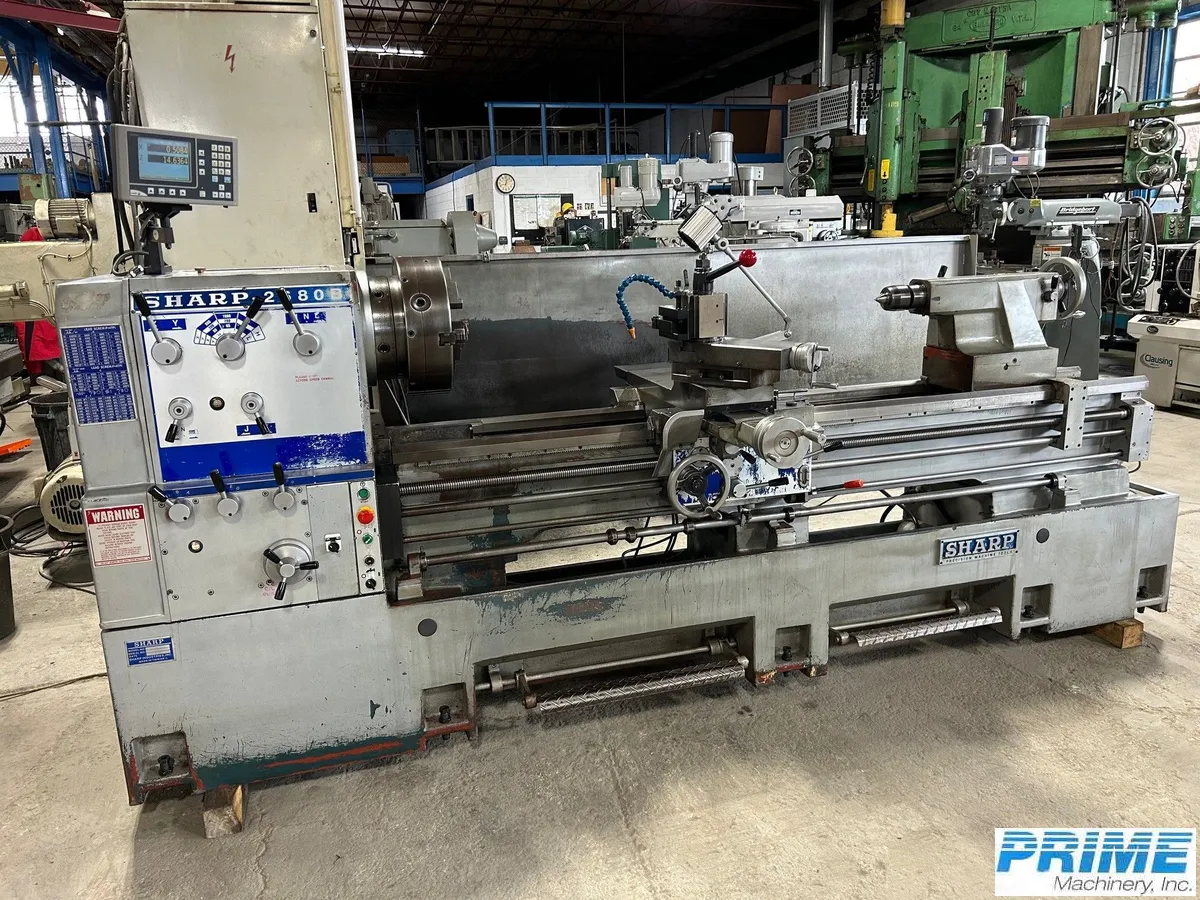

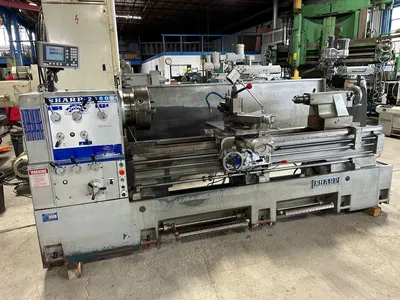

26"/35" X 80" SHARP MODEL: 2680B REMOVABLE GAP BED ENGINE LATHE - NEW: 2011
$24,500.00 USD
ConditionUsed
1 available
Used 26"/35" x 80" Sharp Model 2680B Removable Gap Bed Engine Lathe, built 2011. Features 26" swing, 80" centers, 15 HP motor, digital readout, coolant system, threading capabilities, and more. Full specs available. Ideal for precision machining.
SWING OVER BED ...................... 26"
SWING IN GAP ........................ 35"
SWING OVER CROSS SLIDE .............. 17.24"
DISTANCE BETWEEN CENTERS ............ 80"
WIDTH OF BED ........................ 15.75"
SPINDLE SPEEDS (12) ................. 10 - 1,000 RPM
SPINDLE NOSE, CAMLOCK, SIZE ......... D1-11

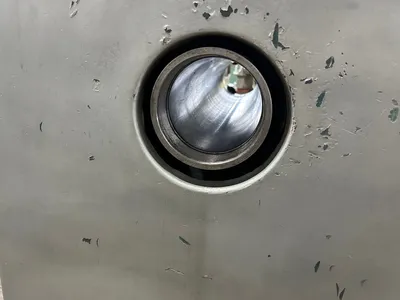

SPINDLE HOLE ........................ 4.5"
HEADSTOCK SPINDLE CENTER TAPER ...... #7 MORSE
LONGITUDINAL FEED RANGE ............. .002 TO .032 I.P.R.
CROSS FEED RANGE .................... .005 TO .018 I.P.R.
THREAD RANGE - INCH ................. 2 - 56 T.P.I.
THREAD RANGE - METRIC .............. .5 - 14 MM
TAILSTOCK QUILL TRAVEL .............. 6.5"
TAILSTOCK DIAMETER .................. 3.34"
TAILSTOCK SPINDLE TAPER ............. #5 MORSE
APPROX DIMENSIONS ................... 138"x 48"x 52"
APPROX WEIGHT ....................... 6,750 LBS.

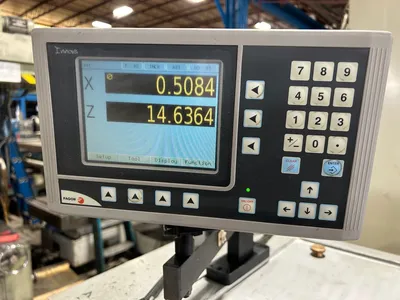

- FAGOR TWO-AXIS DIGITAL READOUT
- INCH & METRIC THREADING CAPABILITIES
- REMOVABLE GAP BED

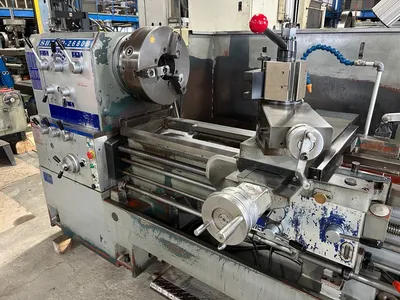

- 3-JAW CHUCK

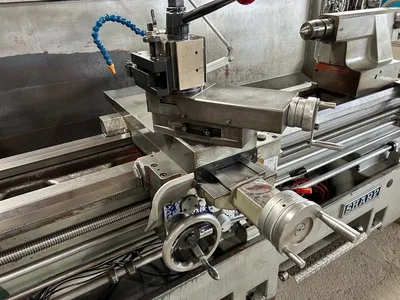

- QUICK CHANGE TOOLPOST
- THREADING DIAL
- FOOT TREADLE TYPE SPINDLE BRAKE
- TAILSTOCK WITH TWO-SPEED QUILL

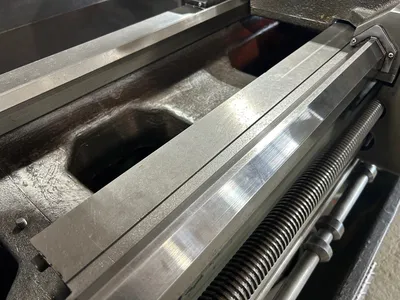

- HARDENED AND GROUND BED AND CROSS SLIDE WAYS
- SINGLE PIECE MEEHANITE CAST IRON BED
- SELF-CONTAINED COOLANT SYSTEM
- FULL LENGTH REAR SPLASH GUARD
- 15 HORSE POWER SPINDLE DRIVE MOTOR
INSPECT UNDER POWER IN A MIDWEST WAREHOUSE
