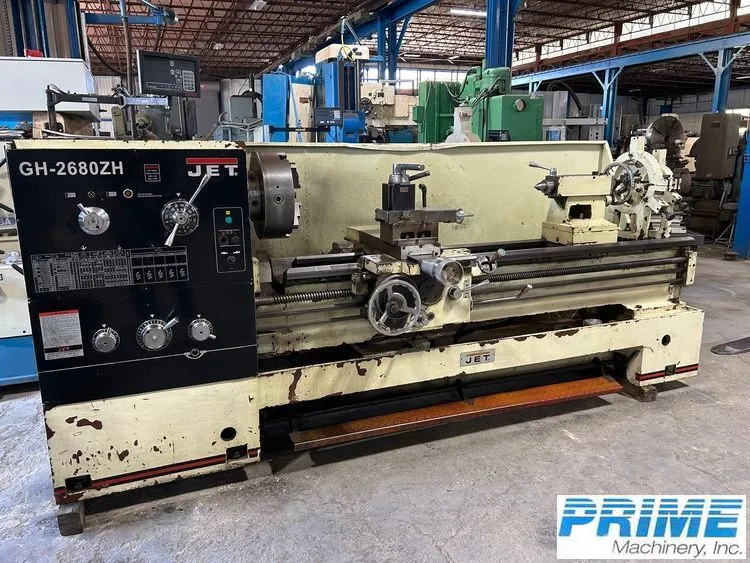

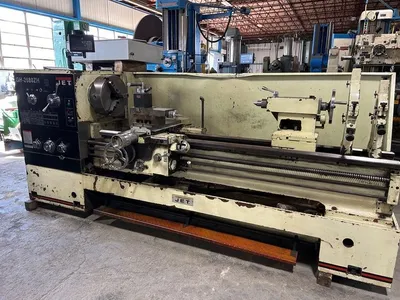

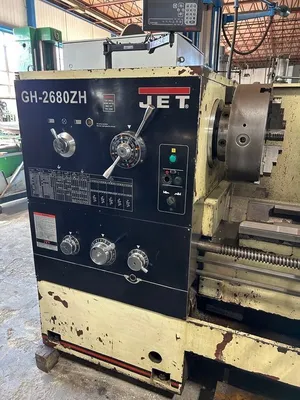

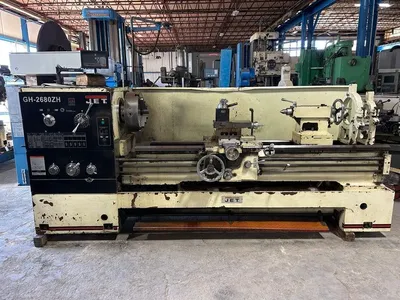

26"/34" X 80" JET MODEL: GH 2680 ZH GAP BED ENGINE LATHE - MFG: 2014
$24,500.00 USD
ConditionUsed
1 available
Discover precision with the used 2014 JET GH-2680ZH lathe, featuring a 26"/34" swing, 80" center distance, and speeds of 36-1,600 RPM. Comes with a NEWALL readout, hardened bed ways, and threading capabilities. Ideal for demanding machining tasks.
SWING OVER BED ........................ 26"
SWING IN REMOVABLE GAP ................ 34"
SWING OVER CROSS SLIDE ................ 16-1/2"
DISTANCE BETWEEN CENTERS .............. 80"
SPINDLE HOLE .......................... 4-1/8"
SPINDLE NOSE, CAMLOCK, SIZE ........... D1-8"
WIDTH OF BED .......................... 16"
SPINDLE SPEEDS (12) ................... 36 - 1,600 RPM
FEED CHANGES, LONGITUDINAL (65) ....... .0023 - .0937 IPR
FEED CHANGES, CROSS (122) ............. .0010 - .0404 IPR
THREADS, INCH (61) .................... 2 - 30 T.P.I.
METRIC (24) ........................... 1 - 14 MM

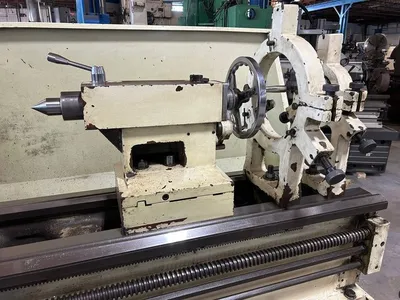

TAILSTOCK SPINDLE CENTER .............. #5 MORSE TAPER
TAILSTOCK SPINDLE TRAVEL .............. 6"
APPROXIMATE DIMENSIONS ................ 138" x 43" x 57"
APPROXIMATE WEIGHT .................... 8,500 LBS.
EQUIPPED WITH:
- NEWALL TWO AXIS DIGITAL READOUT
- REMOVABLE GAP BED
- INCH AND METRIC THREADING CAPABILITY
- HARDENED AND GROUND BED WAYS
- TAPER TURNING ATTACHMENT

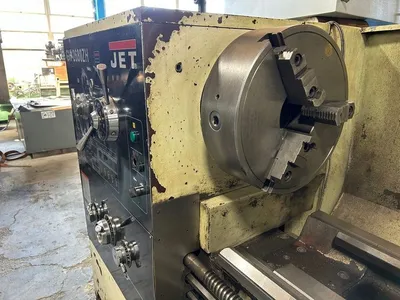

- 3-JAW CHUCK

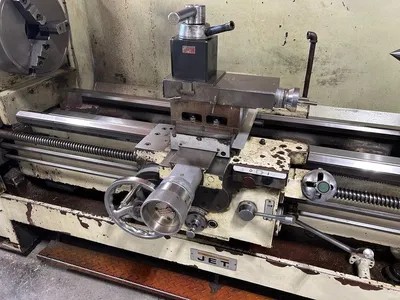

- QUICK CHANGE TOOLPOST WITH HOLDERS
- (2) STEADY RESTS
- THREADING DIAL
- LIVE CENTER FOR TAILSTOCK
- FOOT BRAKE
- SELF-CONTAINED COOLANT SYSTEM WITH REAR SPLASH GUARD
- 10 HORSE POWER SPINDLE DRIVE MOTOR
