SWING ...................... 37.4"
CENTERS .................... 157.48"
SPINDLE BORE ............... 10"
POWER ...................... 50 HP

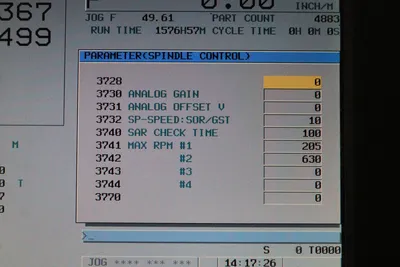

RPM(2 Ranges) .............. 630 RPM
SWING OVER BED ............. 37.4"
SWING OVER CARRIAGE ........ 24.8"
MAX. TURNING LENGTH ........ 151"
DISTANCE ETWEEN CENTERS .... 157"
LOAD CAPACITY BETWEEN CENTERS 11,000 LBS
APPROXIMATE DIMENSIONS ..... 255" L x 87" W x 73" H
(PLUS CHIP CONVEYOR)
APPROXIMATE WEIGHT ..................... 22,000 LBS

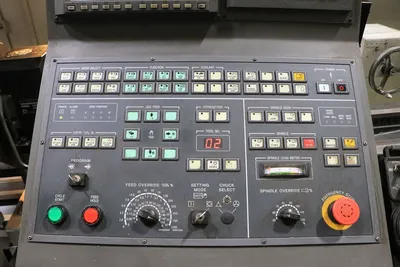

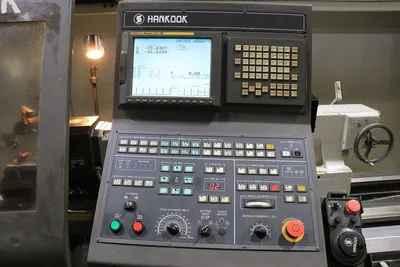

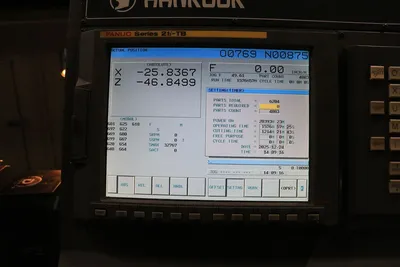

FANUC 21I-TB CNC CONTROL

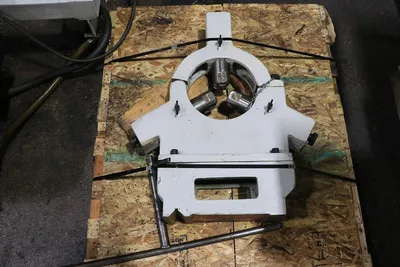

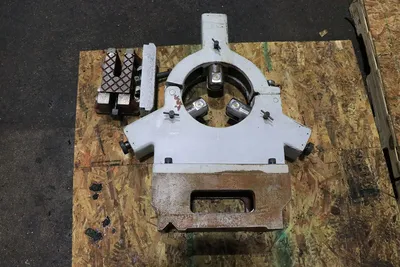

3 STEADY RESTS
CHIP CONVEYOR

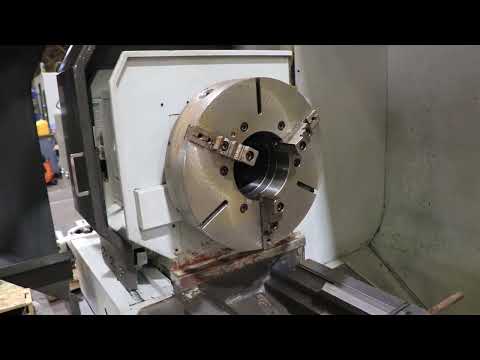

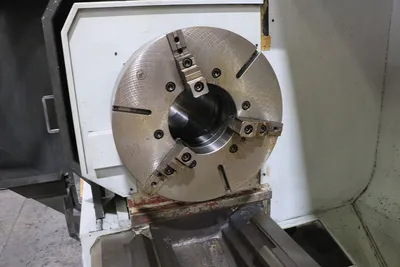

(2) 24" 3-JAW CHUCKS WITH 10" BORE MOUNTED ON FRONT AND BACK OF HEADSTOCK

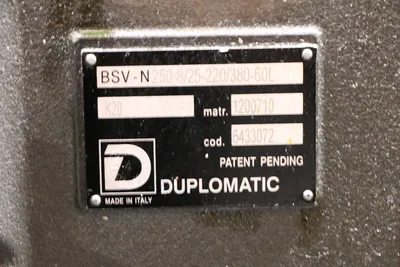

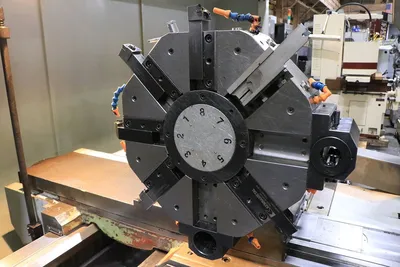

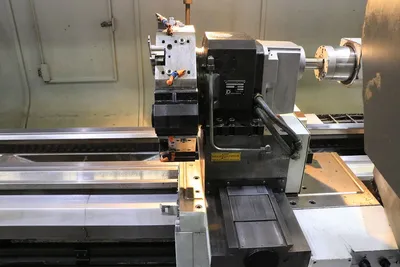

DUPLOMATIC ELECTRIC 8 STATION TURRET

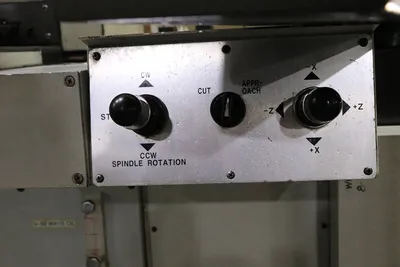

X/Z AXES ELECTRONIC HAND WHEELS (MPG)
HIGH PRECISION BALL SCREWS FOR BOTH AXES
50 HORSE POWER SPINDLE MOTOR
TWO SPEED HEADSTOCK

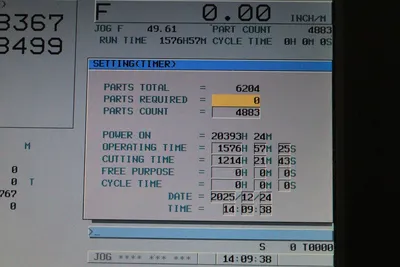

LOW HOURS - Inspect Under Power in our NJ Warehouse. We can Prep and Load for you.
