Used 1987 UNION BFT 90/3-1 | BORING MILLS, HORIZONTAL, TABLE TYPE
ConditionUsed
1 available
$37,500.00 USD

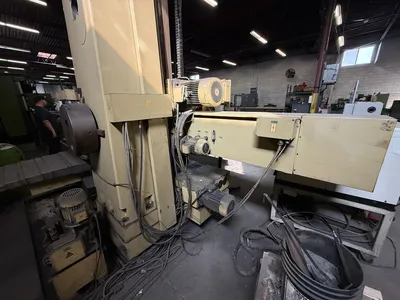

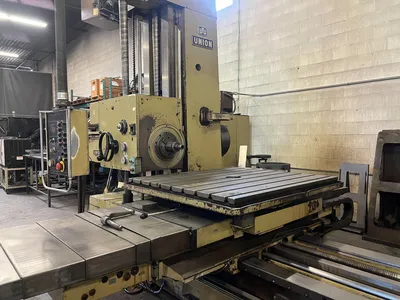

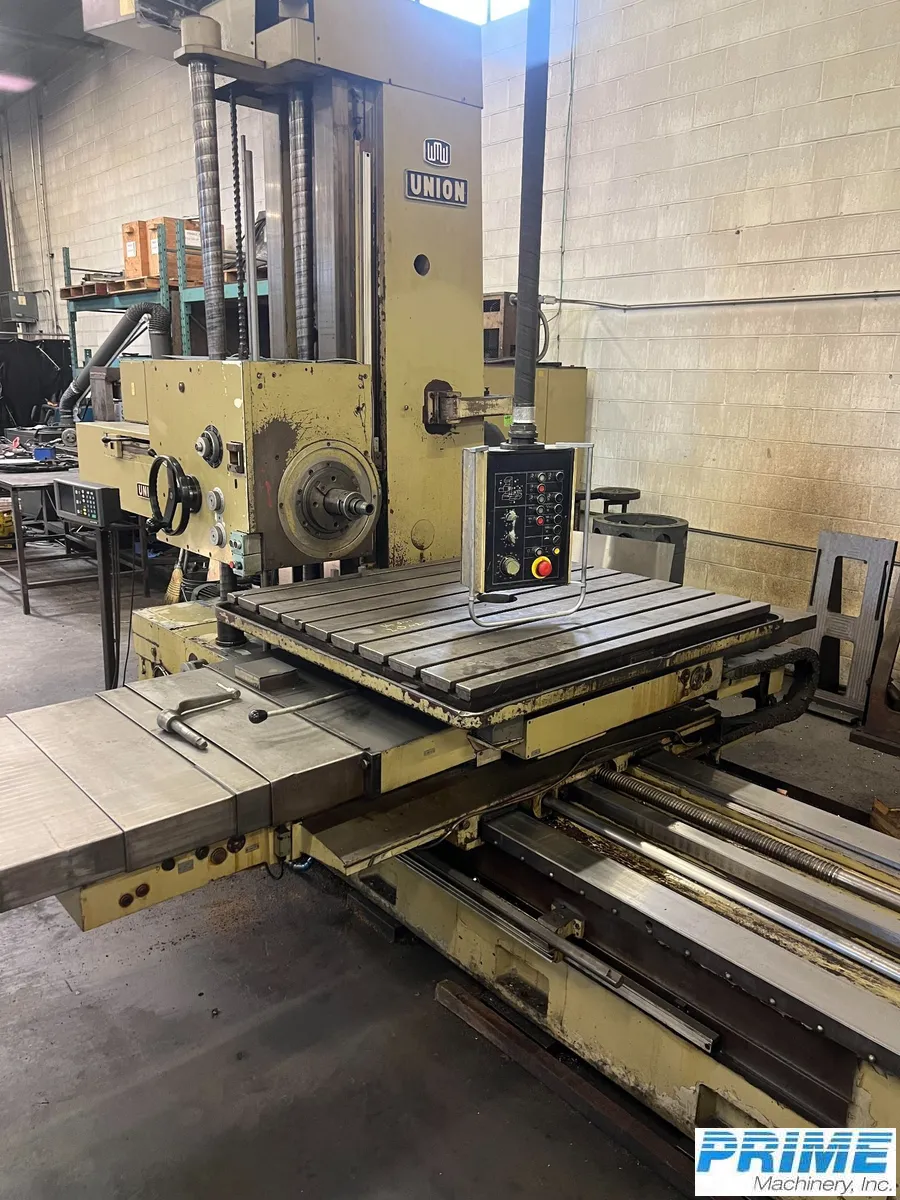

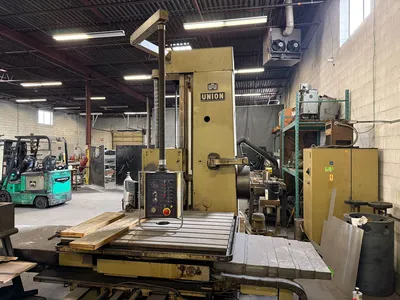

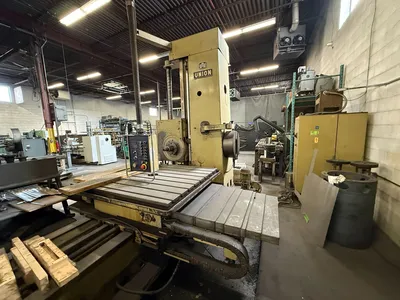

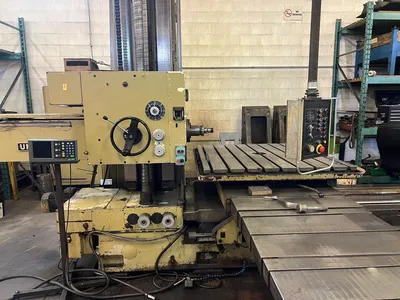

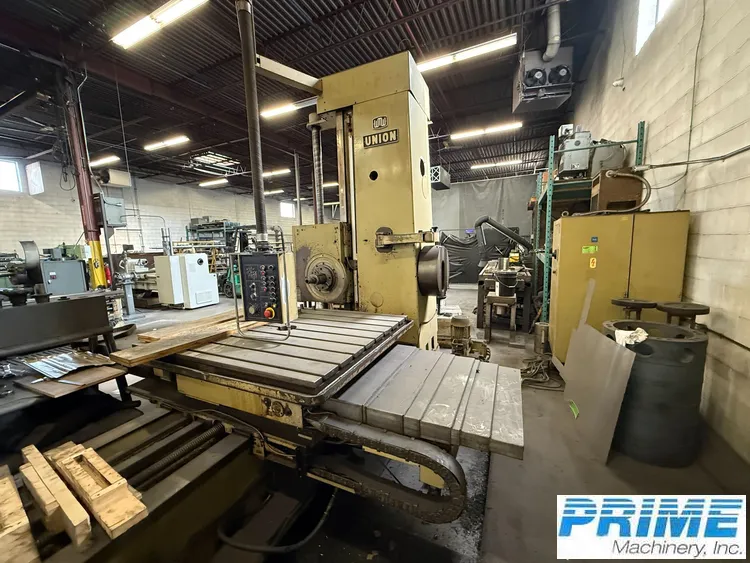

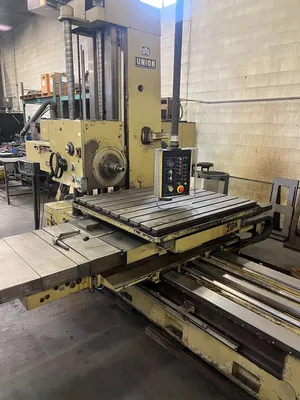

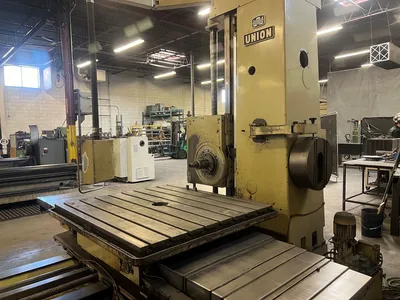

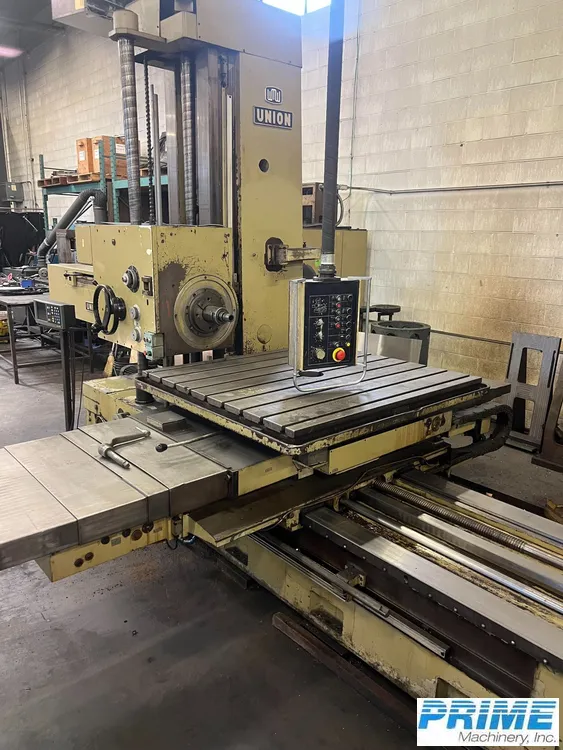

UNION BFT 90/3-1 horizontal boring mill, 1987 model with 3.54" spindle. 1,600 RPM. Features X/Y/Z travels of 63"/50"/63", 15 HP motor, and 5,500 lbs table load Capacity. Equipped with power draw bar, digital readouts, facing head and available tooling.
Travels:
X-Axis, Table Cross Travel 63"
Y-Axis, Vertical Pindle Head Travel 50"
Z-Axis Travel, Longitudinal Table Travel 63"
W-Axis, Spindle Travel 28"
B-Axis, Table Rotation 360 Degrees
Spindle:
Spindle Taper 50
Spindle Speeds, 24 Speeds, 3 Ranges, 8 to 1,600 RPM
Spindle Motor 15 HP

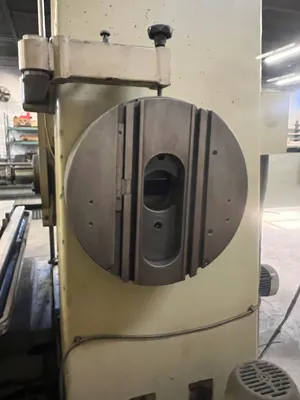

Facing Head:
Daiameter 18"
Slide Traverse (U-Axis) 6.3"
Sepped Two Ranges, 8 to 250 RPM
Table:
Clamping Area 39.4" x 44"
Table Load 5,500 Lbs
Table Rotation 360 Degrees
Appproximate Machine Weight 21,000 Lbs
Power Draw Bar
All available 50 taper Tooling
Facing Head

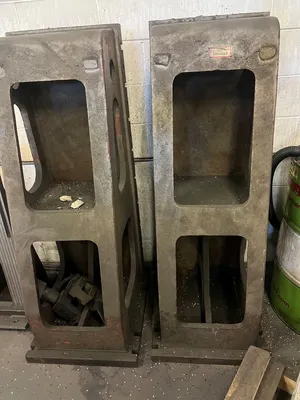

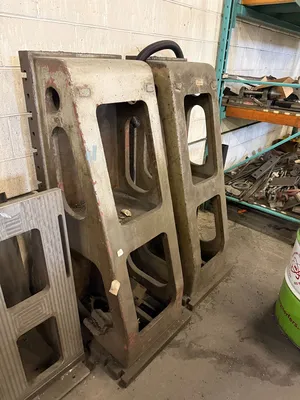

Angle Plates, Cast Iron, 57" H, x 25.6" W, x 19.7" FB

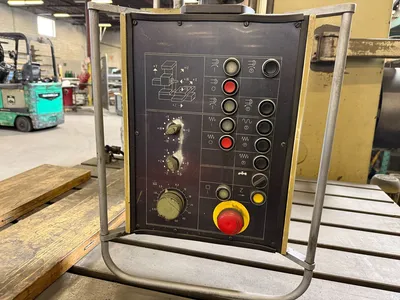

Pendant Control
Hard Ways
Volatage 460V/3/60

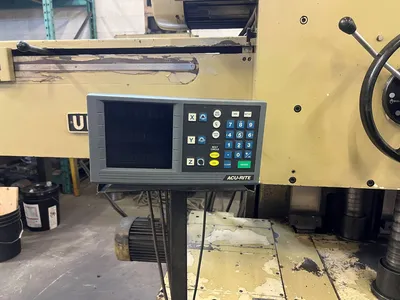

Acu-Rite Digital Readouts
Inspect Under Power in Plant
