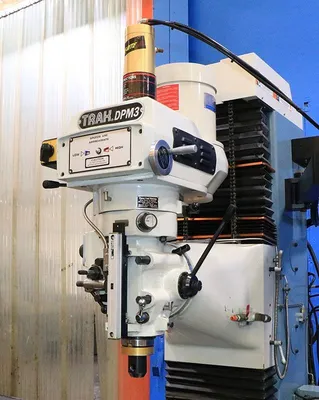

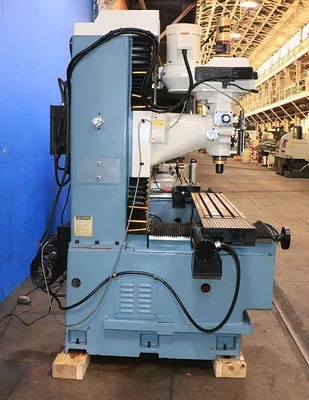

SOUTHWESTERN INDUSTRIES TRAK DPM SX3 CNC VERTICAL MILLING MACHINE - NEW: 2008
$19,500.00 USD
ConditionUsed
1 available

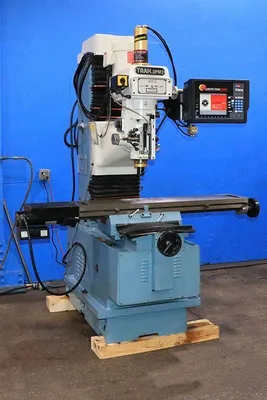

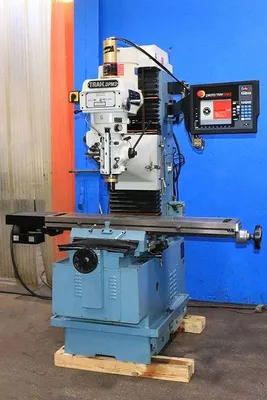

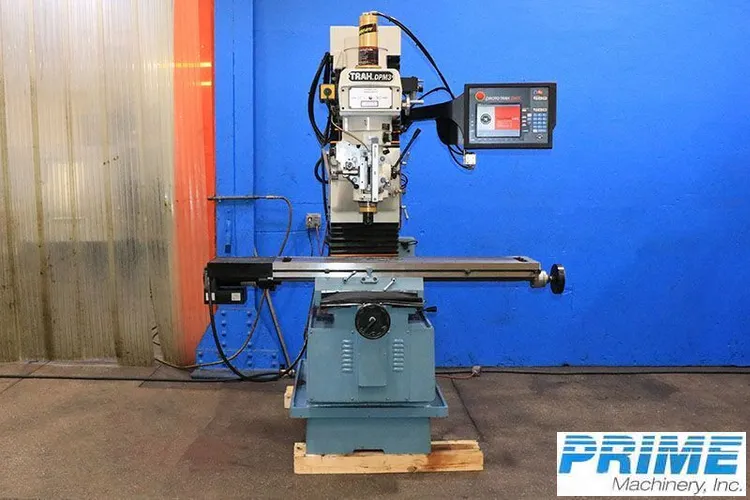

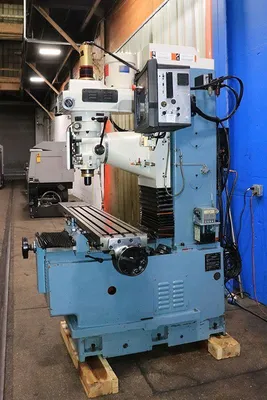

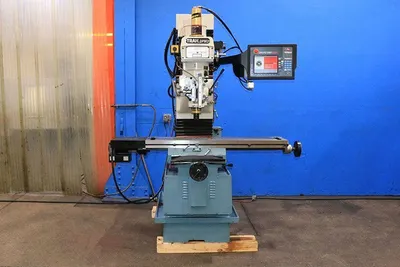

2008 Southwestern Industries TRAK DPM SX3 CNC Vertical Milling Machine. Features a 10" x 50" table, 31" x 17" x 23.5" travel, 5 HP spindle, and Proto-Trak SMX control for a seamless CNC to manual transition. Available in NJ.

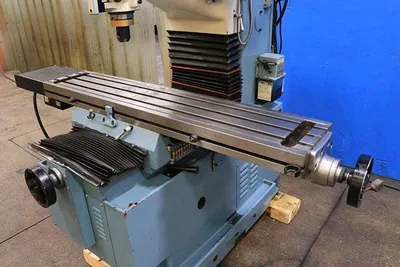

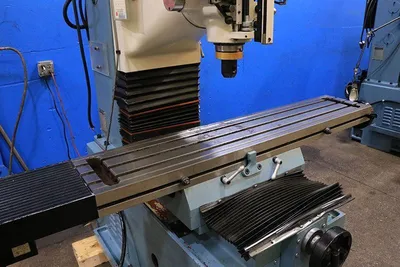

TABLE SIZE ........................ 10" x 50"
TABLE TRAVEL (X) .................. 31"
SADDLE TRAVEL (Y) ................. 17"
VERTICAL HEAD TRAVEL (Z) .......... 23.5"
QUILL TRAVEL ...................... 5"
SPINDLE TAPER ..................... #40 NST
SPINDLE NOSE TO TABLE ............. 0 - 24"
SPINDLE CENTER TO COLUMN FACE ..... 19"
HEAD SWIVEL LEFT & RIGHT .......... 90 DEGREES
SPINDLE SPEED RANGE ............... 70 - 3950 RPM
QUILL FEEDS (3) ................... .002, .004, .006 IPR
MAXIMUM WORKPIECE WEIGHT .......... 1,320 LBS
APPROX DIMENSIONS ................. 68"W x 64"D x 95"H
MACHINE WEIGHT .................... 4,100 LBS

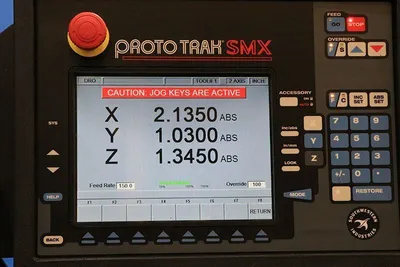

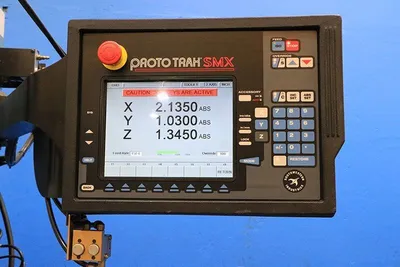

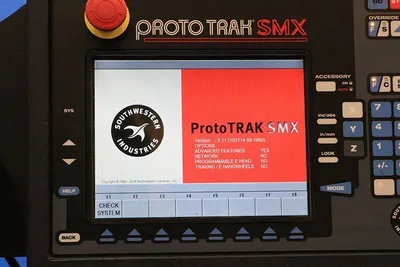

SOUTHWESTERN INDUSTRIES PROTO-TRAK SMX THREE AXIS CONTROL
THREE-AXIS SIMULTANEOUS INTERPOLATION INCLUDING
HELICAL, CANNED CYCLES, GRAPHICS & MUCH MORE
IN MANUAL MODE 3-AXIS DRO, RS232 PORT
ADVNCED FEATURES OPTION
QUILL DIGITAL READOUT (Z IS HEAD UP & DOWN NOT QUILL)
REMOTE STOP/GO SWITCH
SQUARE BOX WAYS - HARDENED & GROUND
PRECISION BALL SCREWS
HALOGEN WORKLIGHT

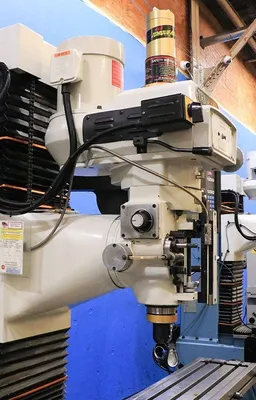

TORQUE-RITE POWER DRAW BAR
COOLANT SYSTEM

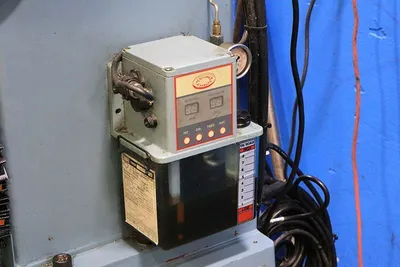

AUTOMATIC LUBRICATION SYSTEM
BELOWS WAY COVERS
5 HORSE POWER SPINDLE MOTOR
TRANSITION FREELY FROM 3-AXIS CNC TO MANUAL.
PERFECT FOR A TOOLROOM OR PROTO-TYPE WORK
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
