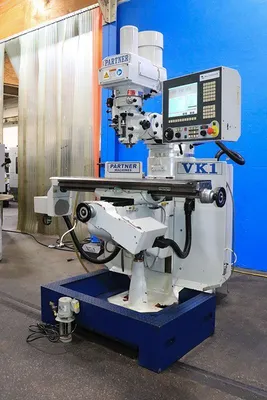

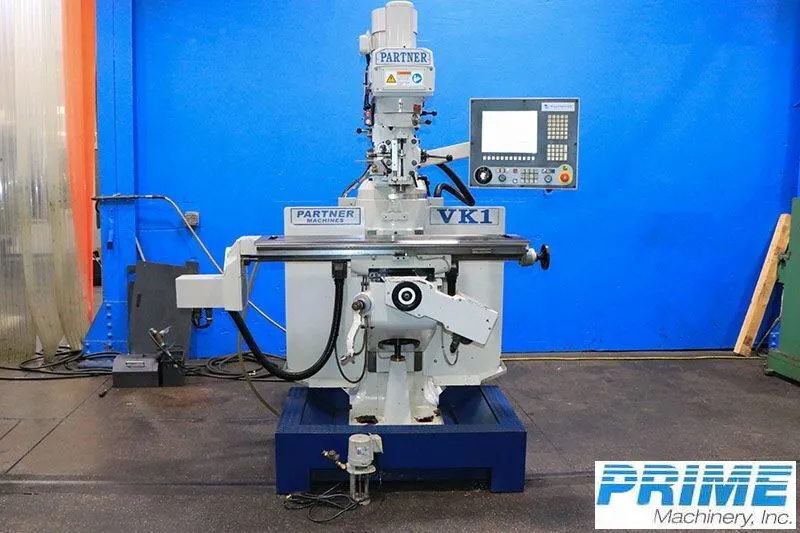

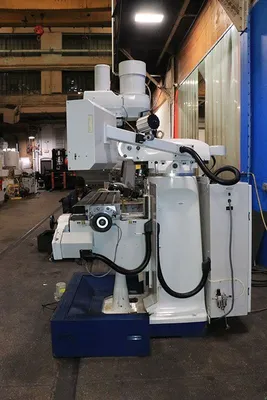

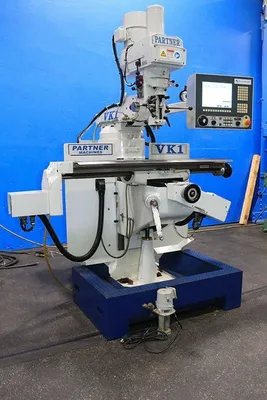

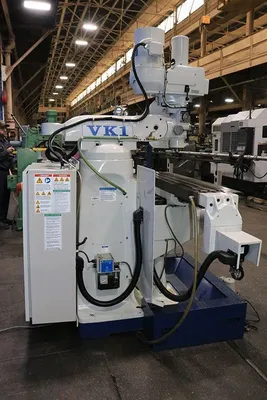

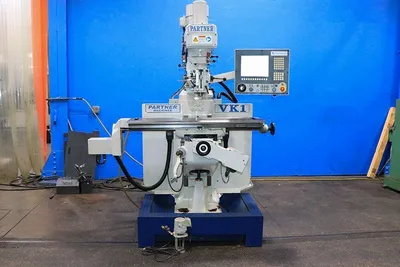

MILLTRONICS MODEL: VK1 CNC VERTICAL MILL - NEW: 2008
$16,500.00 USD
ConditionUsed
1 available
2008 MILLTRONICS VK-1, featuring a 9"x49" table, 30" X-axis travel, and 2-axis Centurion 7200 SLS control. Equipped with coolant system, lubrication, and powerful 5 HP motor. Approx. dimensions: 80"L x 70"W x 82"H, weight: 3,000 lbs. Located in NJ.

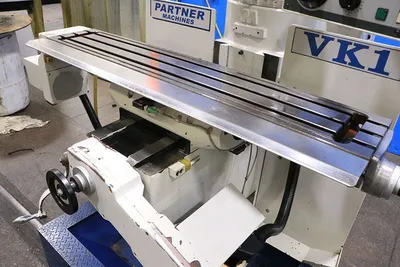

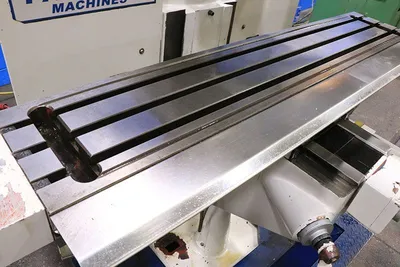

TABLE SIZE ......................... 9" x 49"
TABLE TRAVEL (X-AXIS) .............. 30"
SADDLE TRAVEL (Y-AXIS) ............. 11"
QUILL TRAVEL ....................... 5"
KNEE TRAVEL ........................ 16"
RAM TRAVEL ......................... 12"
SPINDLE TAPER....................... R8
SPINDLE SPEEDS TWO RANGES:
LOW RANGE ....................... 60 - 500 RPM
HIGH RANGE ...................... 500 - 4000 RPM
SPINDLE DIAMETER ................... 3.375"
HEAD SWIVEL SIDE TO SIDE ........... 90 DEGREES +/-
HEAD TILT FRONT TO BACK ............ 45 DEGREES =/-
APPROXIMATE DIMENSIONS ............. 80"L x 70"W x 82"
APPROXIMATE WEIGHT ................. 3,000 LBS.

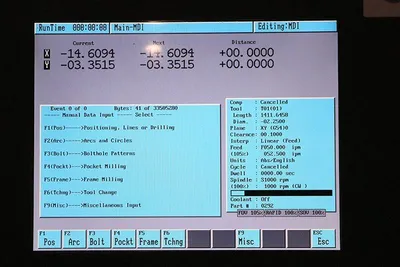

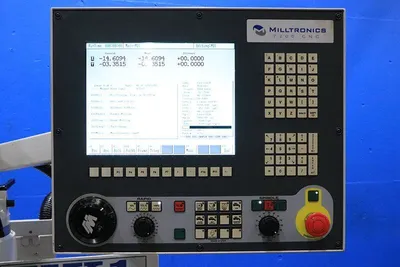

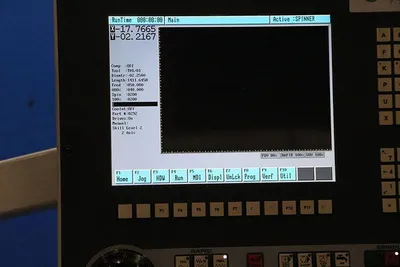

MILLTRONICS CENTURION 7200 SLS CONTROL (2-AXIS)
(SLS) SKILL LEVEL SELECT SOFTWARE ALLOWS THE OPERATOR TO
CHOOSE A SIMPLE OR FULL-FEATURED SYSTEM
CONVERSTIONAL & G/M CODE
10" LCD DISPLAY
BALLSCREWS & AC SERVO MOTORS FOR X & Y TRAVELS

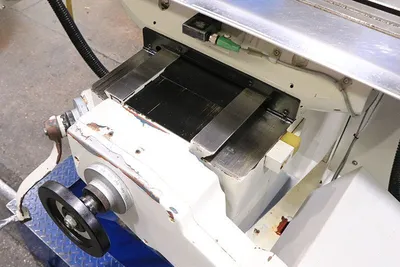

GROUND SOLID WAYS WITH TURCITE SURFACES

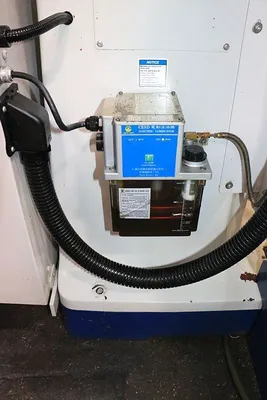

LUBRICATION SYSTEM

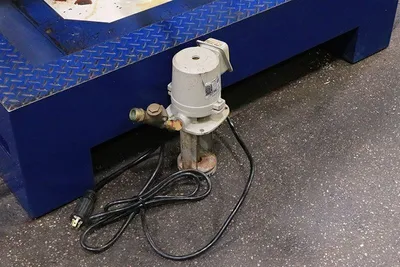

FLOOD COOLANT SYSTEM
5 HORSE POWER MOTOR & VECTOR SPINDLE DRIVE
OUT OF A TRADE SCHOOL
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
