BRIDGEPORT MODEL: SERIES I VERTICAL MILLING MACHINE - NEW: 1985
$6,950.00 USD
ConditionUsed
1 available

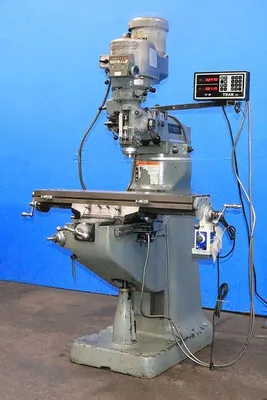

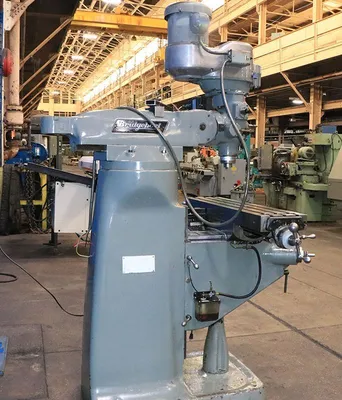

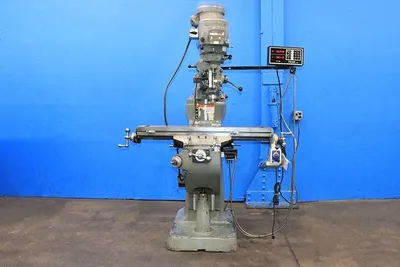

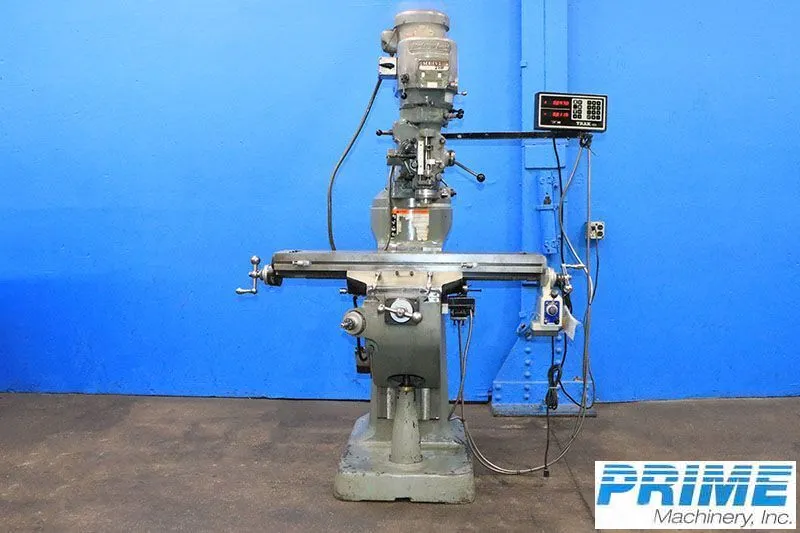

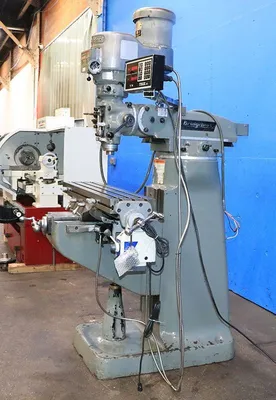

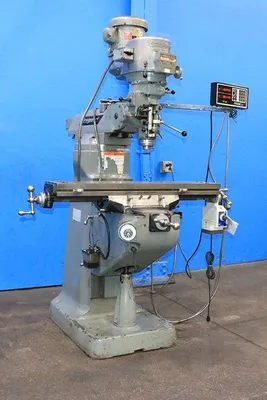

1985 Bridgeport Series I Vertical Milling Machine. Features 9"x42" table, 30" longitudinal travel, and a 2HP spindle motor. Equipped with 2-axis digital readout and power feed. Chrome ways and automatic lubrication. Explore in NJ.

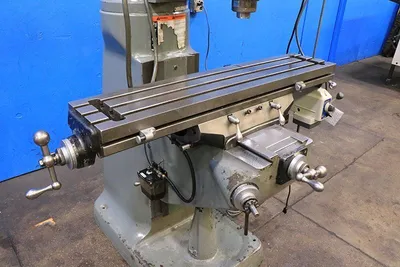

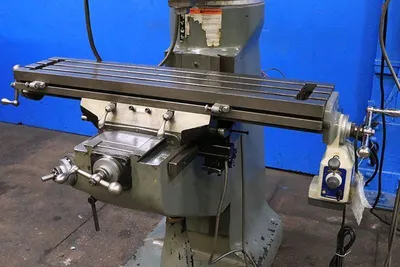

TABLE SIZE .............................. 9" X 42"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 30"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT & RIGHT ................. 90 DEGREES
HEAD TILT, FRONT & REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... R-8
MAX COLLET CAPACITY ..................... 3/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS

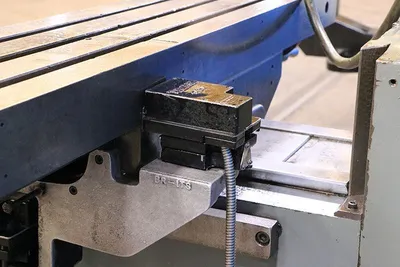

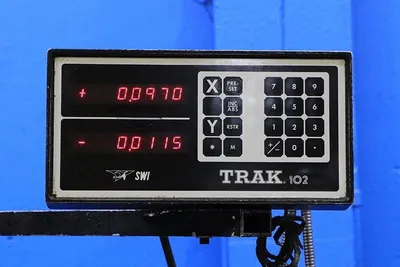

TRAK TWO AXIS DIGITAL READOUT

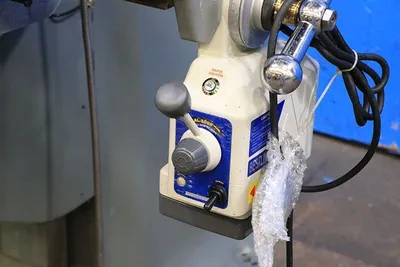

NEW POWER FEED FOR LONGITUDINAL TRAVEL

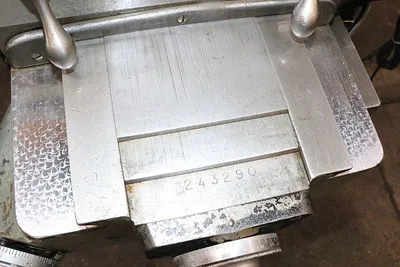

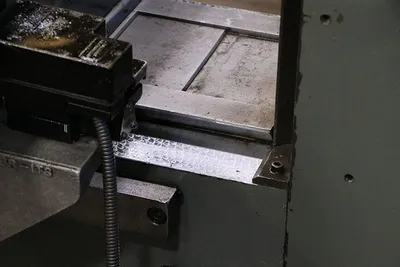

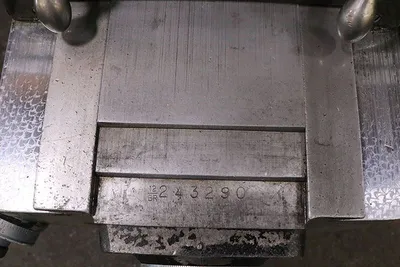

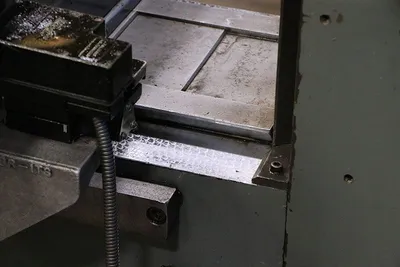

CHROME WAYS

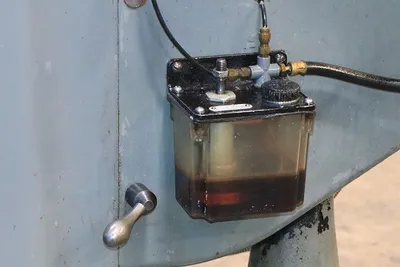

BIJUR AUTOMATIC LUBRICATION SYSTEM

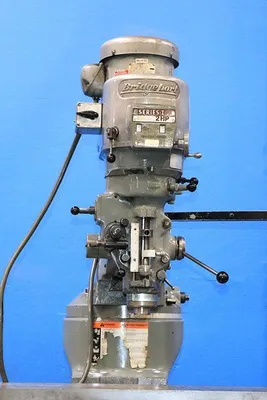

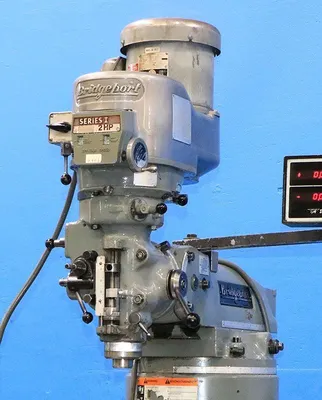

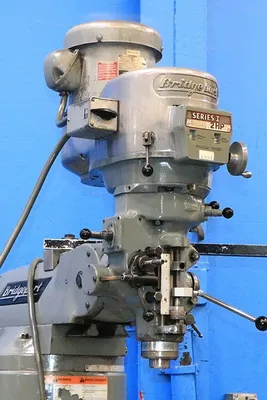

BRIDGEPORT SERIES I MILLING HEAD
2 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
