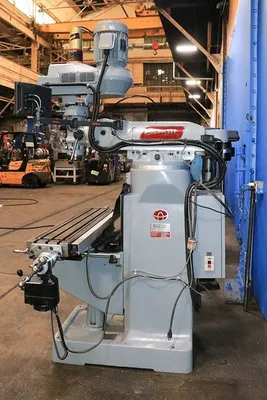

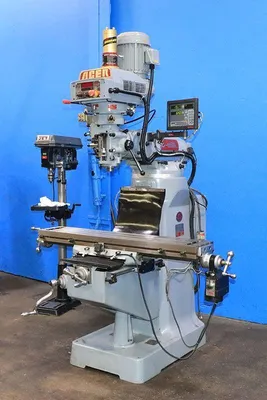

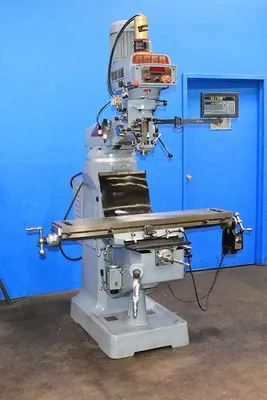

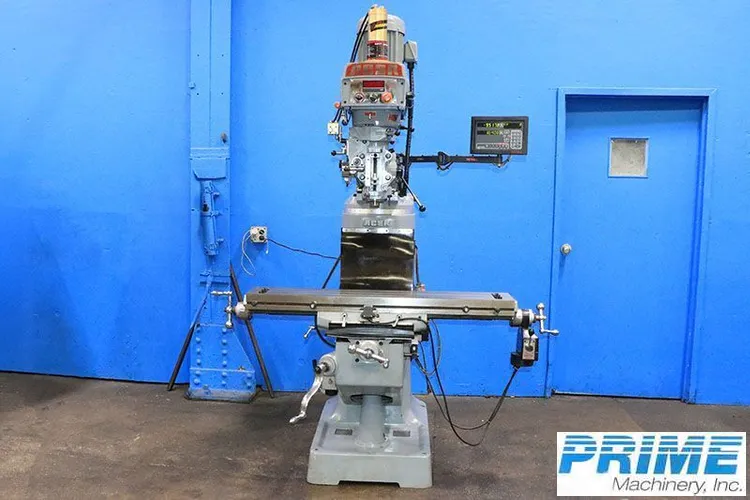

ACER MODEL: E-MILL 3VSII VERTICAL MILLING MACHINE - NEW: 2017
ConditionUsed
1 available
ACER E-MILL 3VSII Vertical Milling Machine, used, 2017 model. Features a 9" x 49" table, 360° turret rotation, 60-4,500 RPM spindle speeds, and a Newall two-axis digital readout. Includes servo power feed and torque-rite air actuated power draw bar.

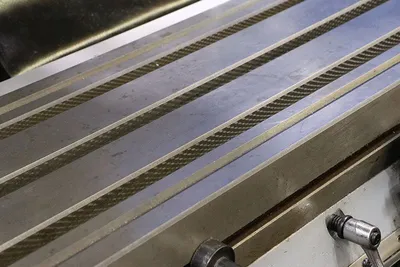

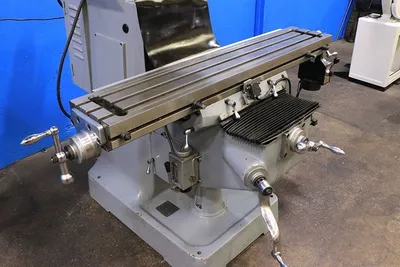

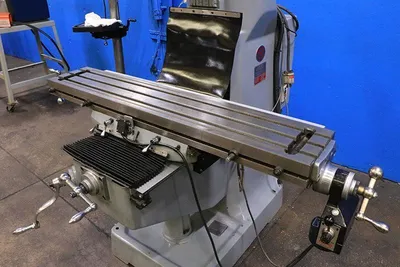

TABLE WORKING SURFACE ......................... 9" X 49"
NUMBER OF T-SLOTS (WIDTH) ..................... 3 (5/8")
RANGE: LONGITUDINAL, MANUAL (X) ............... 34"
CROSS (Y) ........................ 12"
VERTICAL, KNEE ................... 16"
QUILL (Z) ........................ 5"
RAM TRAVEL .................................... 12"
HEAD TILT, LEFT AND RIGHT ..................... 90 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY ............ 45 DEGREES
TURRET ROTATION ............................... 360 DEGREES
(3) POWER QUILL FEEDS ............ .0015, .003, .006 I.P.R.
QUILL DIAMETER ................................ 3-3/8"
INFINITELY VARIABLE SPINDLE SPEEDS ............ 60 - 4,500 RPM
SPINDLE TAPER ................................. R-8
MAXIMUM COLLET CAPACITY ....................... 3/4"
APPRROXIMATE DIMENSIONS .................. 79" x 74" x 90"H
APPROXIMATE WEIGHT ............................ 2,500 LBS.

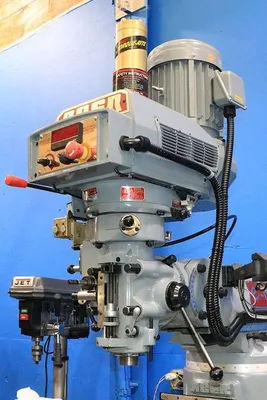

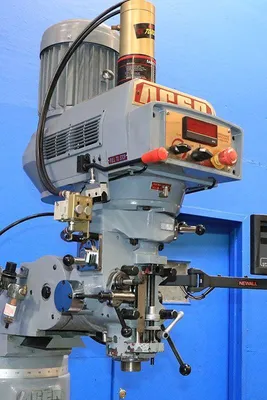

AC FREQUENCY INVERTER SPINDLE DRIVE

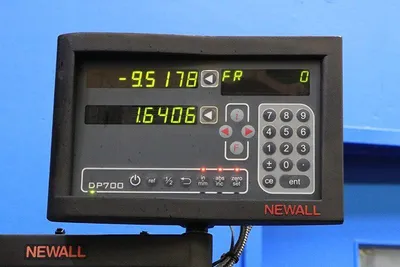

NEWALL TWO-AXIS DIGITAL READOUT

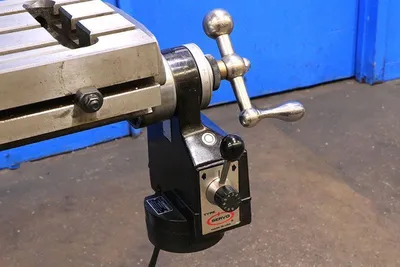

SERVO POWER FEED FOR LONGITUDINAL TABLE TRAVEL
TORQUE-RITE AIR ACTUATED POWER DRAW BAR
HARDENED AND GROUND DOVETAIL WAYS FOR X & Y AXES
MEEHANITE CASTING

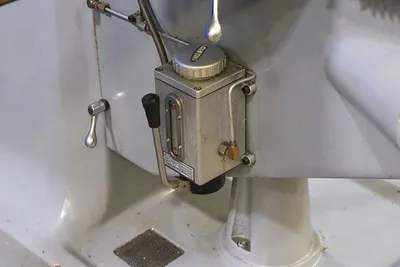

ONE-SHOT LUBRICATION SYSTEM
3 HORSE POWER SPINDLE DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
