BRIDGEPORT MODEL: SERIES I VERTICAL MILLING MACHINE - NEW: 1989
$8,950.00 USD
ConditionUsed
1 available

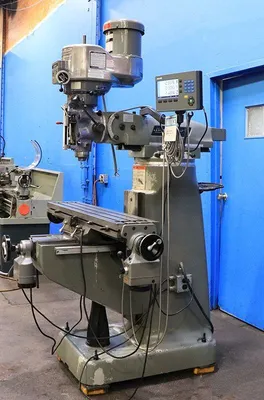

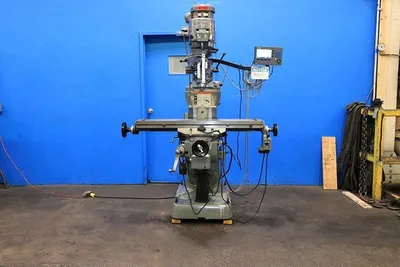

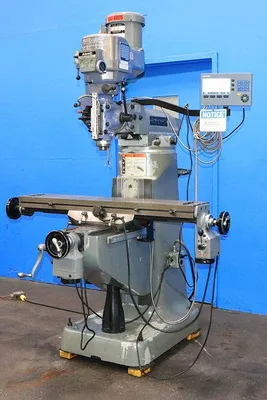

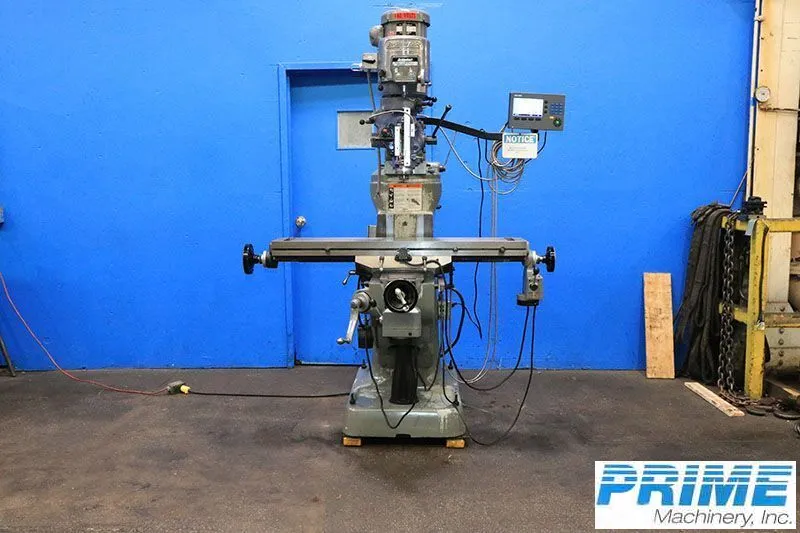

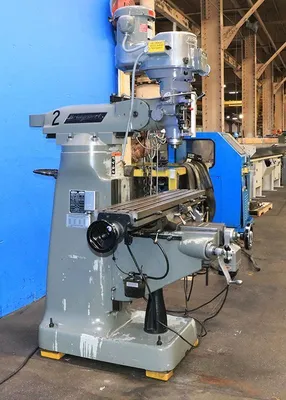

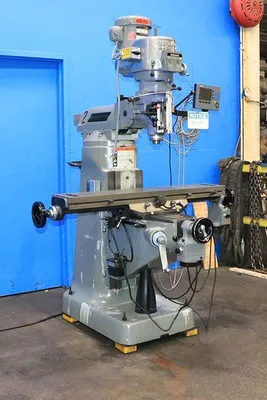

1989 Bridgeport Series I Vertical Milling Machine. Features include a 9" x 48" table, ACU-RITE three-axis digital readout, servo power feeds, R-8 spindle taper, 60-4,200 RPM speed range, and more.

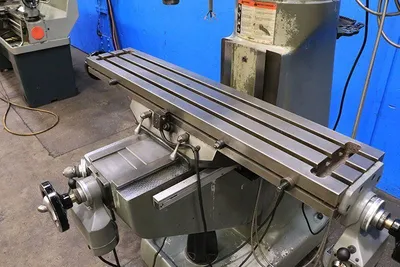

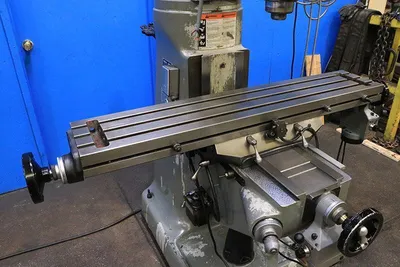

TABLE SIZE .............................. 9" X 48"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 36"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT & RIGHT ................. 90 DEGREES
HEAD TILT, FRONT & REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... R-8
MAX COLLET CAPACITY ..................... 3/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS

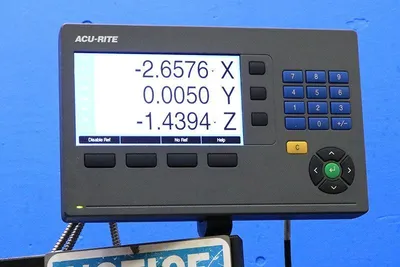

ACURITE THREE AXIS DIGITAL READOUT (CROSS TABLE, LONG, QUILL)
SERVO POWER FEED FOR LONGITUDINAL TRAVEL
SERVO POWER FEED FOR CROSS TRAVEL

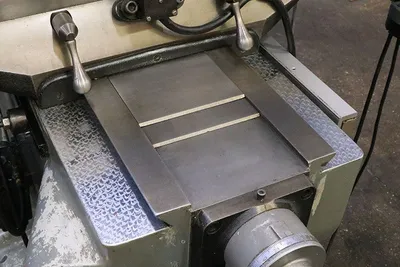

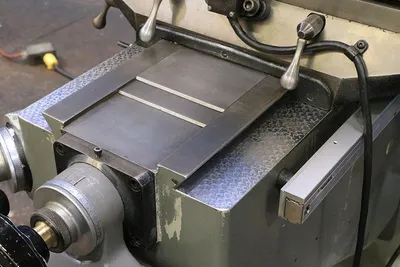

CHROME WAYS

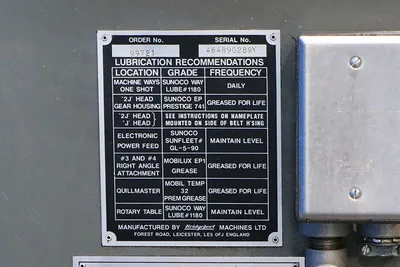

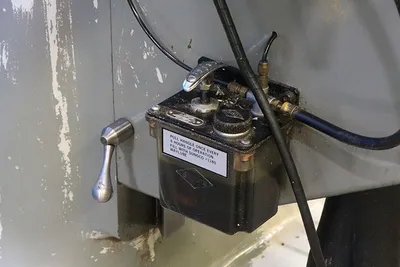

BIJUR ONE-SHOT LUBRICATION SYSTEM

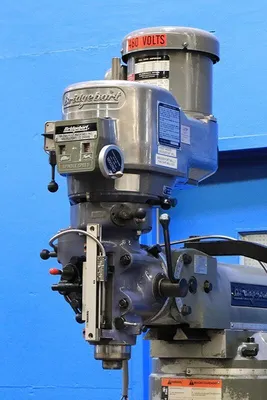

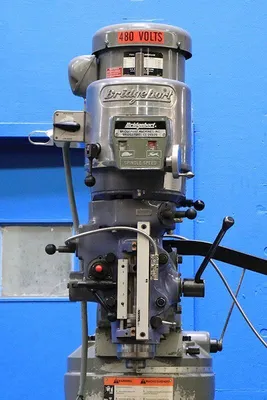

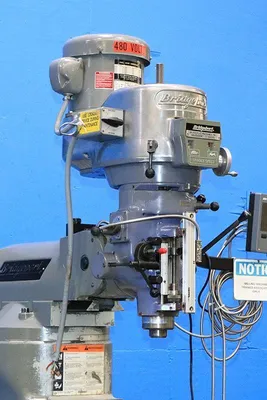

BRIDGEPORT SERIES I MILLING HEAD S/N: 277222
2 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
