BRIDGEPORT MODEL: SERIES I VERTICAL MILLING MACHINE - NEW: 1993
$9,950.00 USD
ConditionUsed
1 available

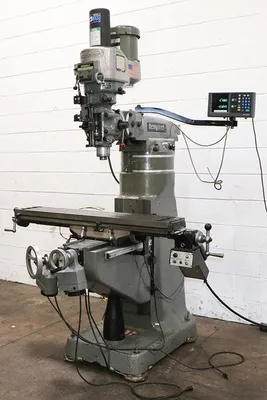

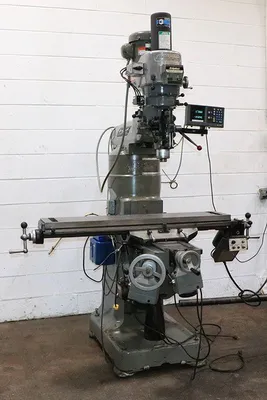

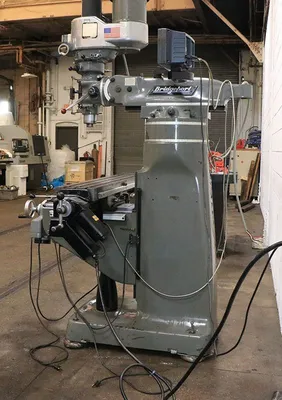

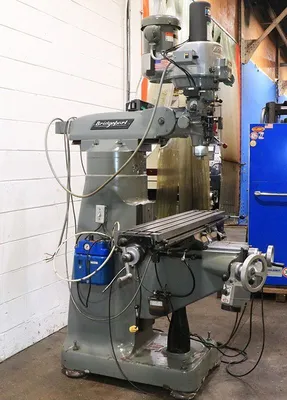

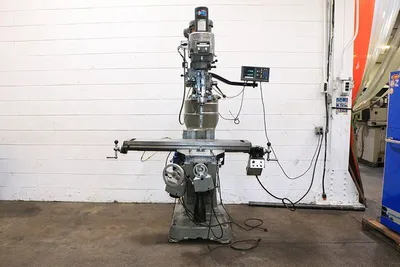

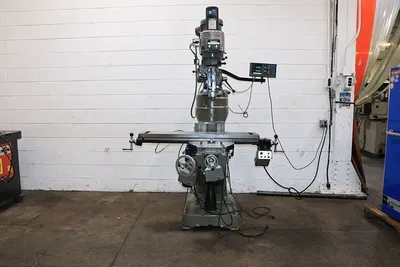

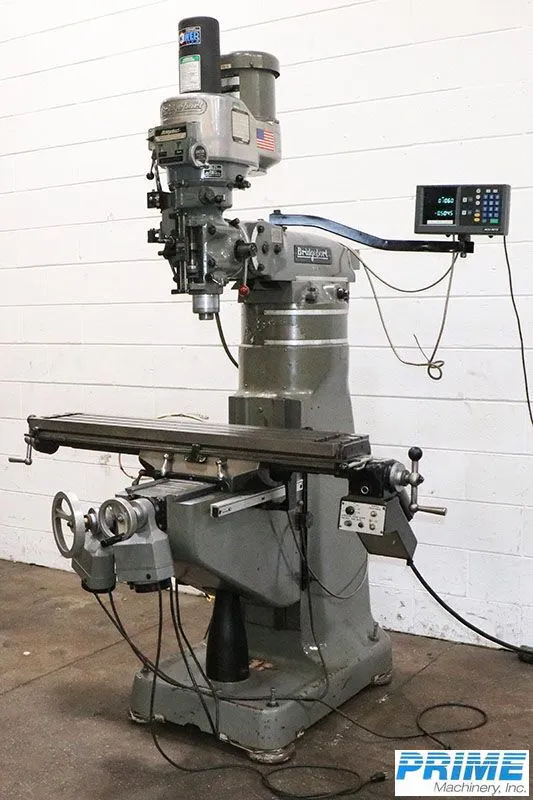

1993 Bridgeport Series I Vertical Milling Machine. Features a 9"x48" table, ACU-RITE digital readout, and power feeds for smooth operations. Equipped with a 2 HP spindle motor and spray mist coolant for efficient milling.

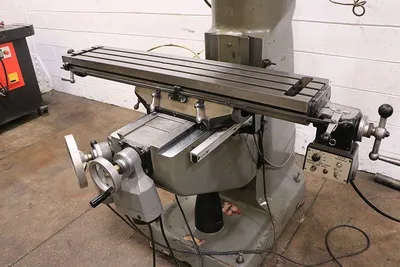

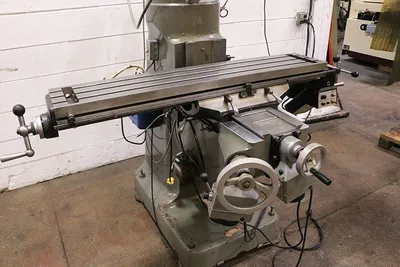

TABLE SIZE .............................. 9" X 48"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 36"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT & RIGHT ................. 90 DEGREES
HEAD TILT, FRONT & REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... R-8
MAX COLLET CAPACITY ..................... 3/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS

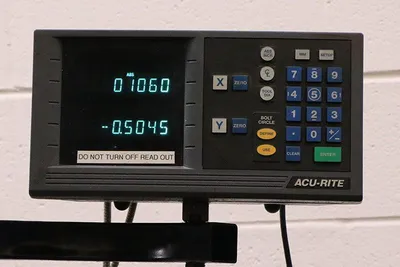

ACURITE TWO AXIS DIGITAL READOUT

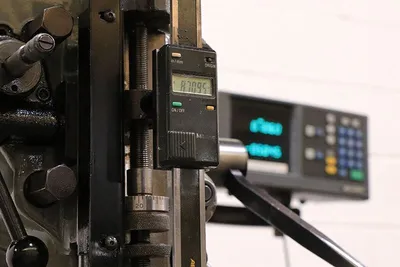

MITUTOYO DIGITAL READOUT FOR QUILL TRAVEL
BRIDGEPORT POWER FEED FOR LONGITUDINAL TRAVEL

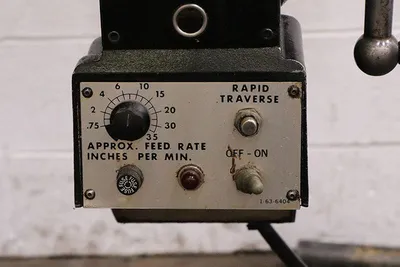

SERVO POWER FEED FOR CROSS TRAVEL
SERVO POWER FEED FOR VERTICAL KNEE TRAVEL
CHROME WAYS
KURT AIR ACTUATED POWER DRAW BAR
4" RISER BLOCK
BIJUR SPRAY MIST COOLANT SYSTEM

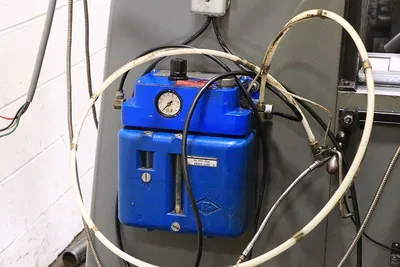

BIJUR ONE SHOT LUBRICATION SYSTEM

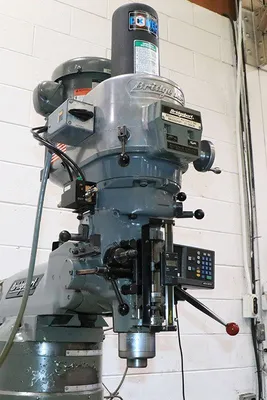

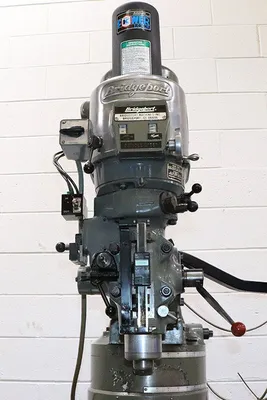

BRIDGEPORT SERIES I MILLING HEAD S/N: 289791
2 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
