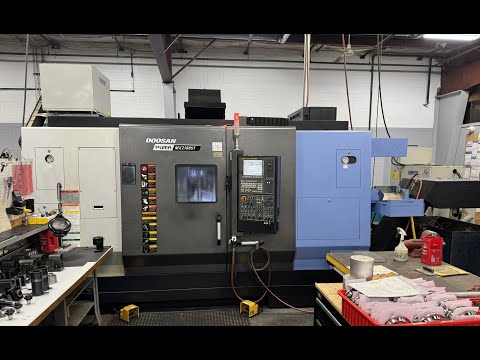

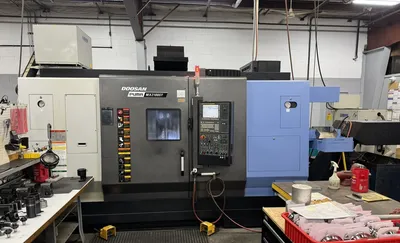

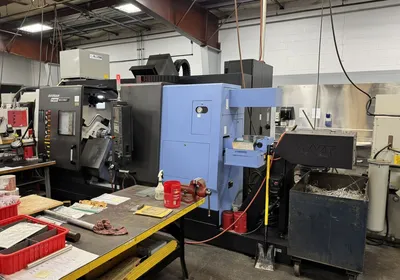

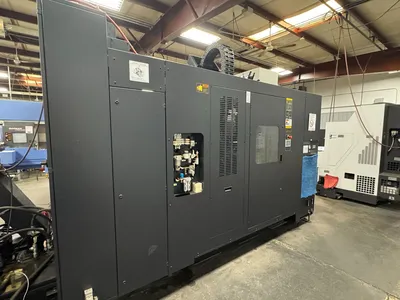

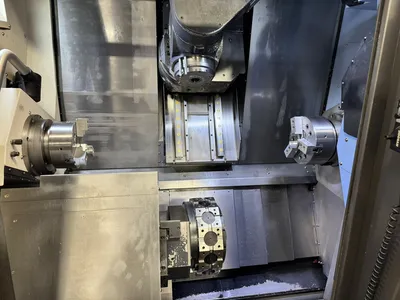

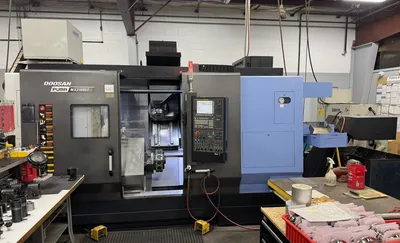

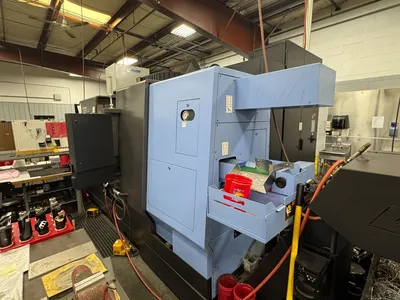

DOOSAN PUMA MX-2100ST, a versatile 5-axis CNC lathe. 29.5" swing, 40.2" machining length, 2.6" bar capacity, and FANUC 31i B5 control. Equipped with Main spindle, Sub Spindle, Milling Spindle. lowerTurret, chip conveyor, mist collector, and high-pressure coolant system.
CAPACITY
Swing over bed 29.5"
Swing over saddle 25.6"
Recom. Turning diameter 8.3"
Max. Turning diameter 21.3"
Max. Turning length 40.2"
Chuck size inch 8"
Bar working diameter 2.6"
TRAVELS DISTANCE
X1-axis 22.2"
Z1-axis 41.3"
Y-axis 6.7"
X2-axis 7.4"
Z2-axis 41.3"
A-axis 41.3"
B-Axis Rotation +- 120 Degrees
FEEDRATES RAPID TRAVERSE RATE
X1-axis m/min (ipm) 36 (1417.3)
Z1-axis m/min (ipm) 36 (1417.3)
Y-axis m/min (ipm) 26 (1023.6)
X2-axis m/min (ipm) - - 24 (944.9)
Z2-axis m/min (ipm) - - 36 (1417.3)
A-axis m/min (ipm) - 30 (1181.1) - 30 (1181.1)

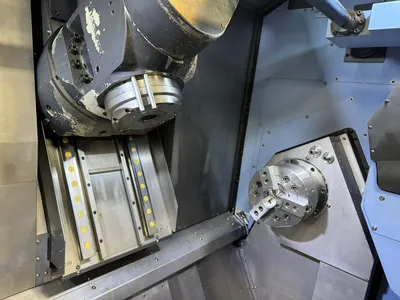

LEFT SPINDLE
Max. Spindle speed r/min 5000
Spindle nose A2-6
Spindle through hole 3.0"
Min. spindle Indexing angle(C-axis) deg 0.0001
Spindle Motor 30 HP

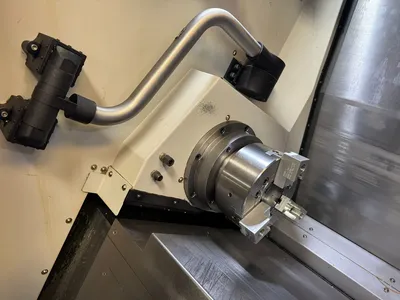

RIGHT SPINDLE
Max. Spindle speed 5000 RPM
Spindle nose A2-6
Spindle through hole 3.0"
Min. spindle Indexing angle(C-axis) deg - 0.001
Spindle Motor 30 HP

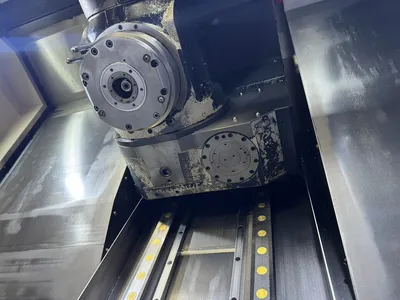

MILLING SPINDE
Milling spindle Max. spindle speed 12,000 RPM
Min. spindle Indexing angle(B-axis) deg. 0.001
Tool storage capacity 40
Tool changer arm SWING ARM
Spindle Motor 25 HP

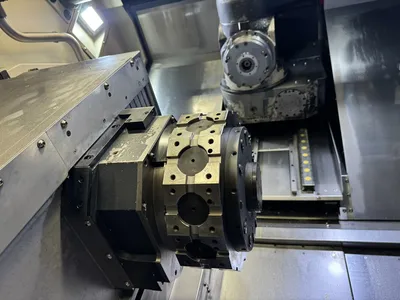

LOWER TURRET
No. of tool stations 12
Max. Rotary tool speed 5,000 RPM
Rotary Tool Spindle Motor Power 7.4 HP

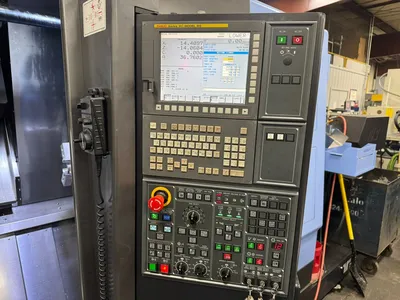

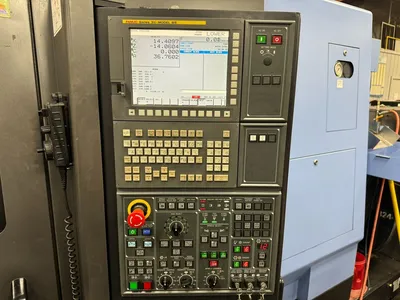

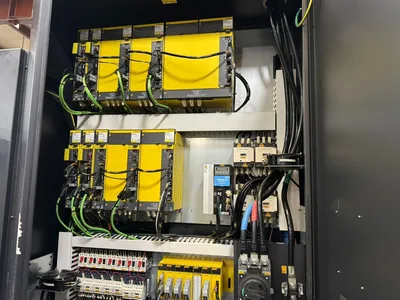

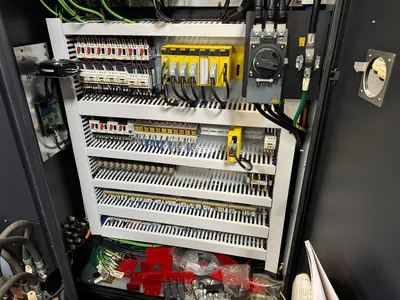

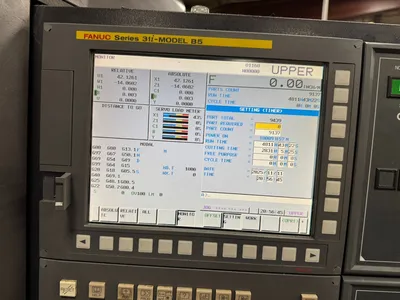

FANUC 31i Model B5, 5-Axis CNC Control (9 Axis Machine)
Tool Setter
Parts Unloader & Conveyor
Chip conveyor

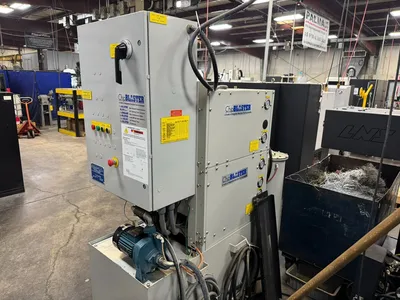

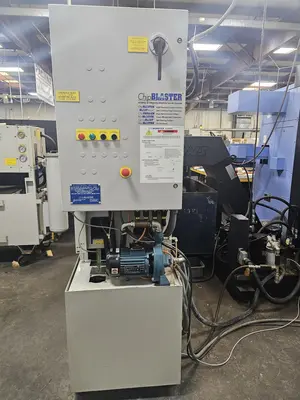

Through Spindle Coolant with High pressure ChipBlaster Unit

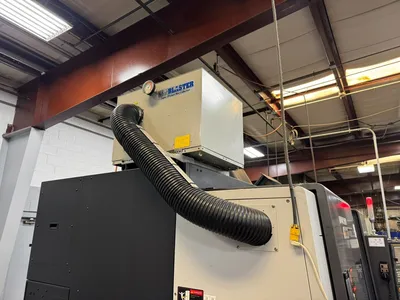

ChipBlaster Mist Collector

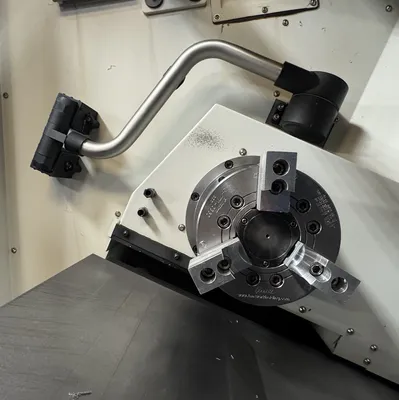

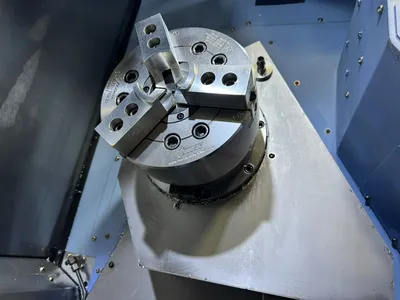

10" and 8" Chucks and Collets for Main and Sub Spindles

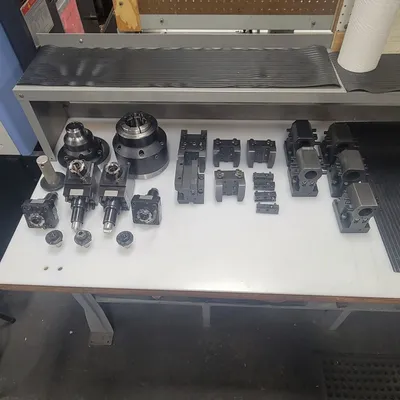

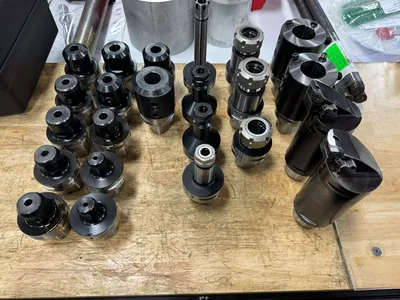

All Available tooling
Inspect Under Power in Shop
All Doosan Service records available

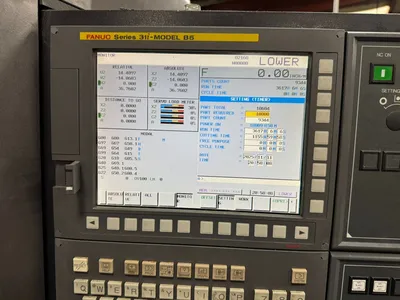

ONLY 1,155 Cutting Hours Lower and 2,831 Upper
CALL FOR PRE-REMOVAL PRICING
